Home > Products > Alarm cable > High Quality 4 Core Fire Resistant Alarm Cable
High Quality 4 Core Fire Resistant Alarm Cable
- FOB Shanghai / Ningbo
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Huajie or OEM | |
| Type | Coaxial |
Product Description
Specifications
high quality 4 core fire resistant alarm cable:1. High quality factory prices
2. CE ROHS, ISO9001 Approved
3. Short time del
high quality 4 core fire resistant alarm cable:
Product description:
Mainly used for the distribution and access of electronic communication equipment, RF transmitter
unit of communication system, building cabling and CATV; the most striking features are broadband
and high speed; currently, also widely used in the multimedia transmission field
Product features:
UNSHIELDED flame retardant cable (Alarm cable)
Solid bare copper conductor
Flame retardant PVC insulated
Can use fire resistant glass fiber tape for separator
Red flame retardant PVC jacket (RAL3018)
300/500 V
Available on LSF,LSHF materials
For use in fire alarm system
Cross section(mm²) | Conductor(No./mm) | Insulation(mm) | Jacket(mm) | Overall Diameter(mm) | Approx Weight(kg/km) |
0.5 | 1×2×1/0.8 | PVC-FR | PVC-FR | 4.6 | 24.8 |
0.75 | 1×2×1/0.97 | 5.2 | 31.2 | ||
1.0 | 1×2×1/1.13 | 5.5 | 39.4 | ||
1.5 | 1×2×1/1.38 | 6.8 | 53.6 | ||
2.5 | 1×2×1//1.78 | 8.0 | 112 | ||
0.5 | 2×2×1/0.8 | PVC-FR | PVC-FR | 6.0 | 46.5 |
0.75 | 2×2×1/0.97 | 6.8 | 60.6 | ||
1.0 | 2×2×1/1.13 | 7.2 | 76.3 | ||
1.5 | 2×2×1/1.38 | 8.2 | 98.8 | ||
2.5 | 2×2×1/1.78 | 8.4 | 120 | ||
0.5 | 2×2×1/0.8 | PVC-FR | PVC-FR | 5.0×8.2 | 50.5 |
0.75 | 2×2×1/0.97 | 5.6×9.2 | 64.7 | ||
1.0 | 2×2×1/1.13 | 5.9×10.2 | 80.6 | ||
1.5 | 2×2×1/1.38 | 6.4×11.2 | 103.5 | ||
2.5 | 2×2×1/1.78 | 7.1×12.6 | 125 |

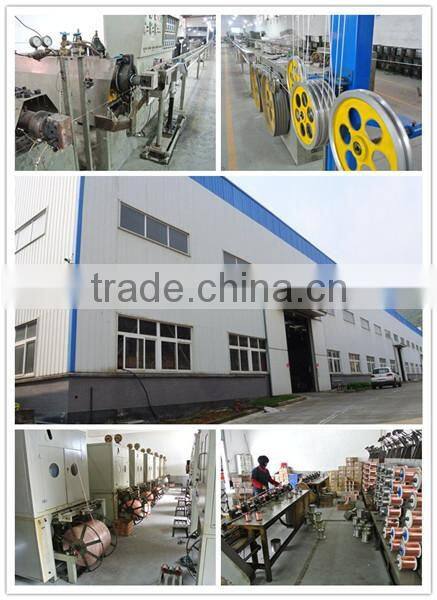

Factory Show :

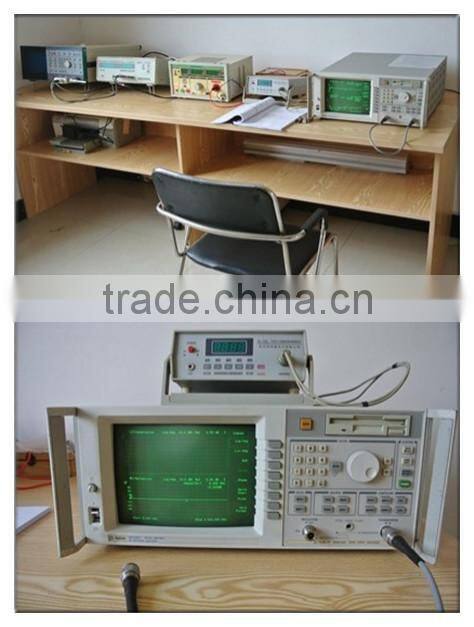

QC Test :
Office Staff:

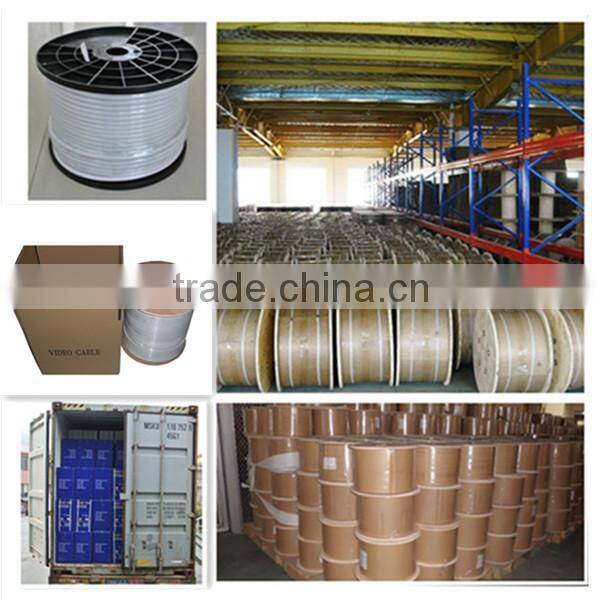

Packing :
Certificates:
Why us ?
1. We are the professionalcoaxial cable manufacturer, so we have rich production experience on the cables;
2. OEM/ODM is available, your own brand can be printed in both cables and boxes;
3. We have special quality control department to ensure our good quality;
4. Cables are approved based on CE, ROHS, 3C, ISO9001 quality standard;
5. Short delivery time, we can finish a 20ft container within 15 days.
