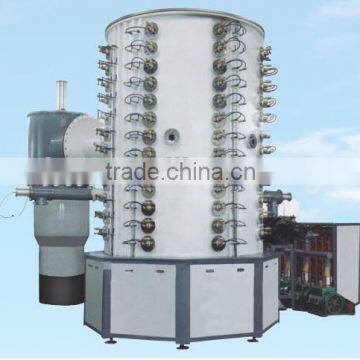

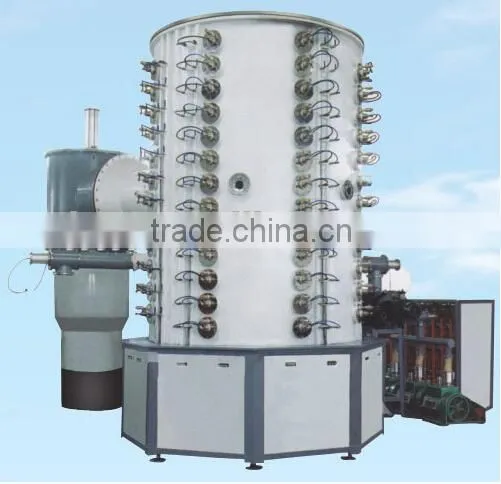

Help CenterStainless Steel Sheet Vacuum Ion Coating Machine
Related Products

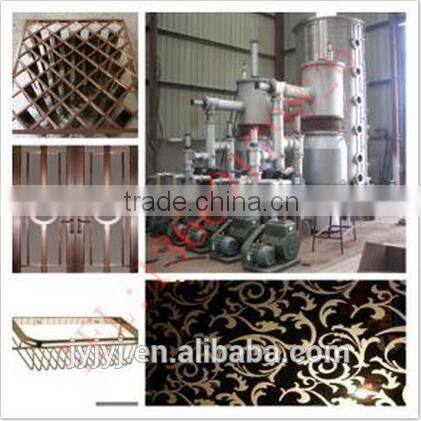

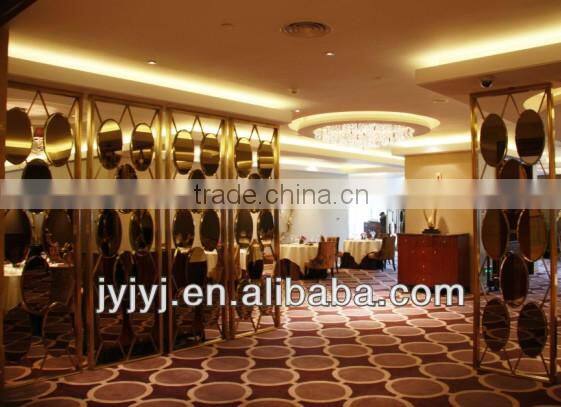

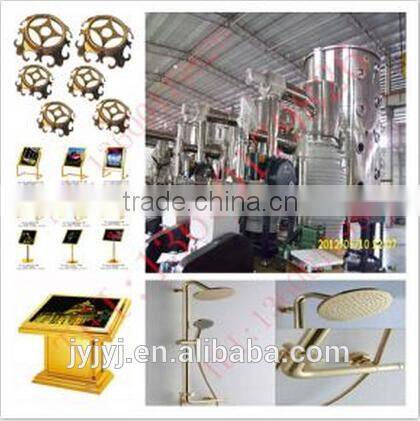

a) Can be coated with the membrane layer: the titanium nitride (TiN), titanium carbide (TiC) zirconium nitride (ZrN), zirapplication industry; Hardware, clocks, decorative, tools, automotive, building water warms, medical equipment, glasses and other industries.
b) conium carbide (ZrC), chromium nitride {CrN}, black chrome, colored oxide film layer, etc.
c) Can be plating color: zirconium titanium series, golden series, wire drawing series, black series, color film series more than ten colors.
d) Membrane layer: high hardness, high wear resistance, corrosion resistance and decorative.
|
Serial number |
Name |
specifications |
qty |
unit |
|||
1 |

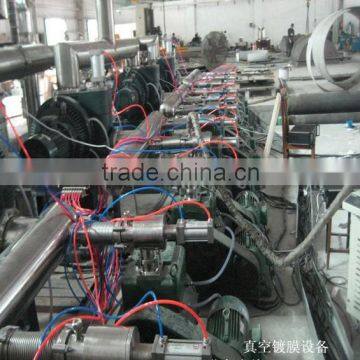

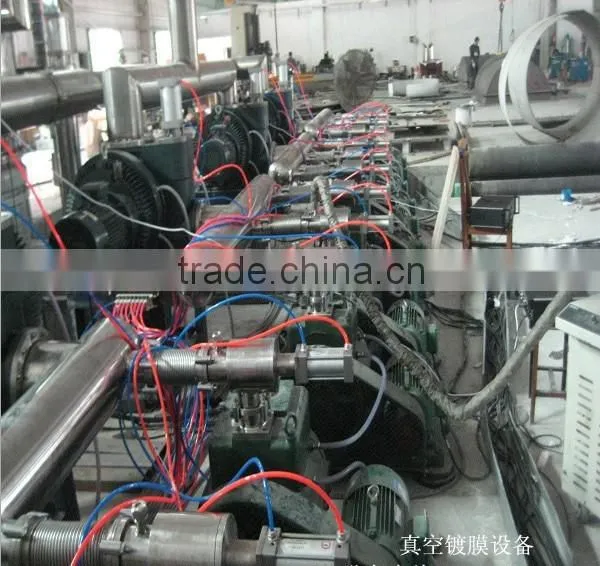

Pump system |
H-150 mechanical pump (zhejiang) |
1 |
set |
|||
2 X-15 maintain pump (outdoor) |
1 |
set |
|||||
ZJY-600 roots pump (Shanghai) |
1 |
set |
|||||
KT-800 diffusion pump |
1 |
set |
|||||
2 |

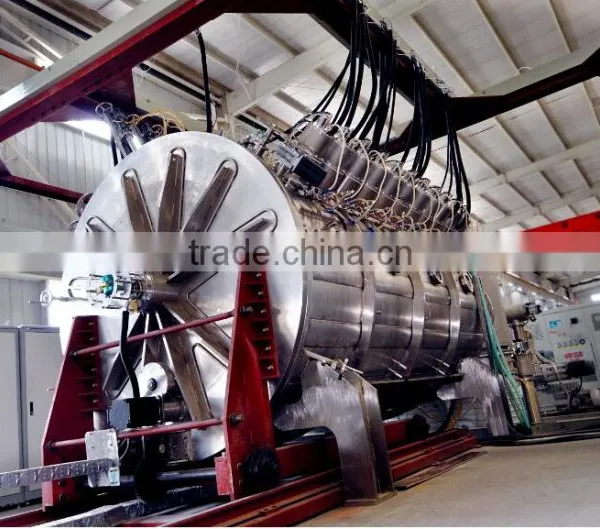

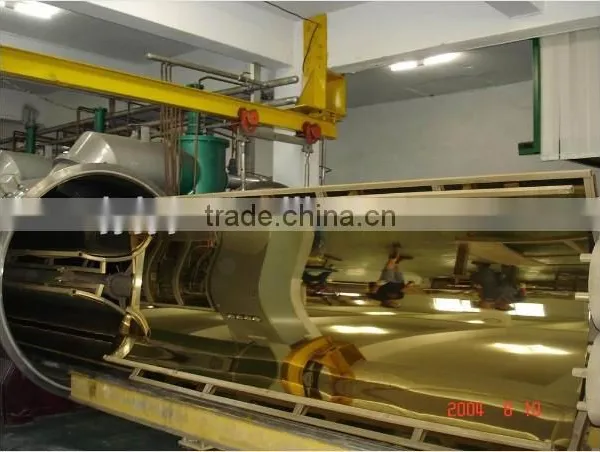

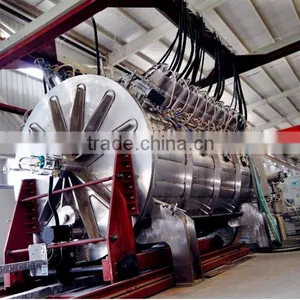

Vacuum Chamber
|
1400 mm * 1600 mm |
1500mm* 1800mm |
1600mm* 1800mm |
1800mm* 2000mm |
1 |
set |
using Q235 carton steel materials , turn frame 2 sets, match a watch window | |||||||
3 |
Valve line |
Pipeline as stainless steel materials, vacuum valve for carbon steel. |
1 |
set |
|||
4 |

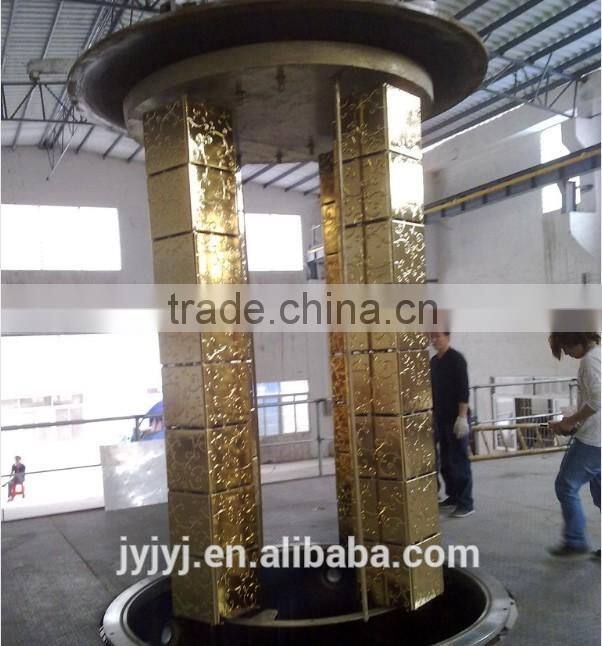

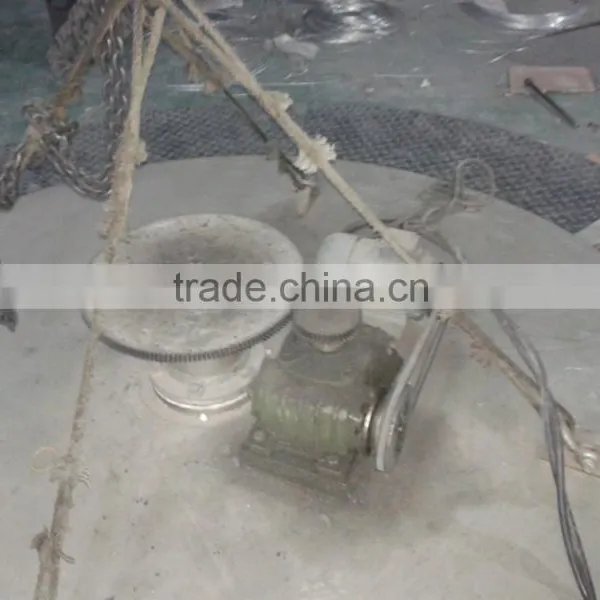

Workpiece rotate system
|
1, steamed plating rotating way: common rotation type 2 groups. 2, common rotation type of effective size: Phi 600 x 1700 mm (diameter × length) 6 axis 3, and turn to drive the motor power: 0.75 KW one. (variable frequency speed regulation) |
1 |
set |
|||
5 |
Measurement control instrument
|
HY-9940-B composite vacuum measuring instrument |
1 |
set |
|||
7 |
Electric Control system |
Germany Siemens PLC + kunlun the state 10.4 "hand touch screen automatic control operation. |
1 |
set |
|||
8 |
power |
33KW/12V Evaporation transformer 33 KW / 12 V |
1 |
set |
|||
9 |
Protection function |
Equiped hydraulic pressure loss, gas pressure loss, automatic alarm and interlock function. |
1 |
set |
|||
10 |
spare parts |
The instruction for use, plane installation drawing, circuit connecting diagram, Spare parts list, technical parameters acceptance list |
1 |
set |
|||
