Ion Vacuum Coating Machine
US$ 39,000 - 69,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Coating Spray Gun
Substrate:
Other, TiN
Payment & Shipping
Payment Methods:
Port of Shipment:
NingBo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Optical Experimental Vacuum Coating MachineUS$ 39,000 - 59,000MOQ: 1 Set -
Hardware Coating MachineUS$ 60,000 - 200,000MOQ: 1 Set
-
PC Vacuum Coating MachineUS$ 30,000 - 80,000MOQ: 1 Set
-
Shoe Heels TPU Vacuum Coating MachineUS$ 10,000 - 70,000MOQ: 1 Set
-
UV Metallizing Machine UV Curing Line Vacuum Coating MachineUS$ 10,000 - 70,000MOQ: 1 Set
Condition
New
Type
Coating Spray Gun
Substrate
Other, TiN
Coating
Vacuum Coating
Place of Origin
Zhejiang, China
Brand Name
Hawk
Model Number
JY-DH
Voltage
220~380V
Power(W)
50Kw
Dimension(L*W*H)
5*4*3m
Weight
5t
Certification
CE
Warranty
1year
After-sales Service Provided
Engineers available to service machinery overseas
JY-DHΦ700×H800 Many arc ion coating machine configuration

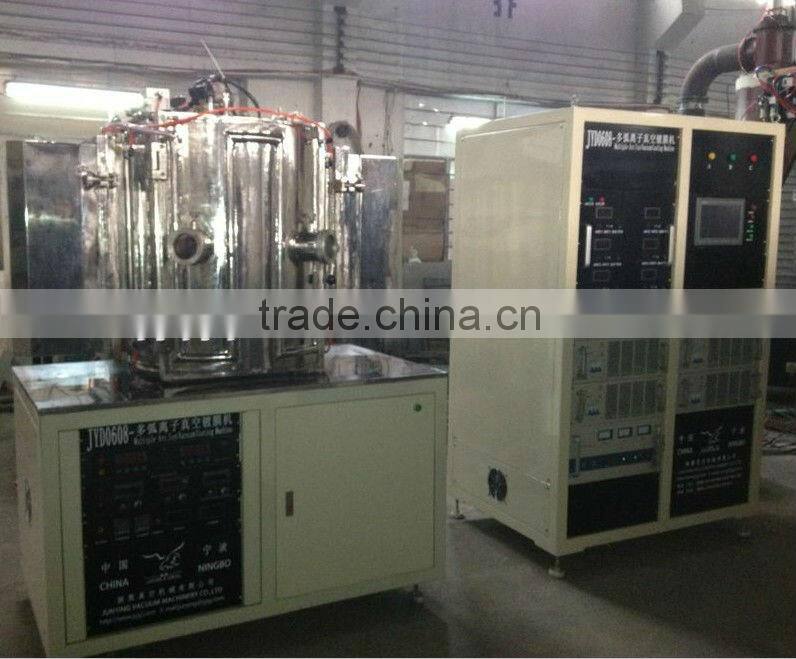

Machine image:
| Ⅰ,Device Configuration | ||||||
| Size / Type | HAWK-JYD600 | HAWK-JYD900 | HAWK-JYD1200 | HAWK-JYD1300 | HAWK-JYD1400 | HAWK-JYD1600 |
| Chamber size(mm) | Φ600*H800 | Φ900*H1200 | Φ1200*H1300 | Φ1300*H1500 | Φ1500*H1800 | Φ1800*H2000 |
| Chamber type | Vertical | Horizontal | Single Door | Double Door | ||
| Chamber characteristic | High-quality stainless steel, double stainless steel laminated water-cooled, vertical single door with viewing window | |||||
| Type of power | Multi-arc ion power, DC bias power supply | |||||
| Multi-arc ion power | 4-6set | 6-8set | 8-10set | 10-12set | 14-16set | 18-20set |
| Multi-arc ion power | 10kw | 20kw | 20-30kw | 30kw | 40kw | 50kw |
| Vacuum pump system | Roots pump+ diffusion pump + mechanical pump + maintain pump+the solenoid valve + cylinder | |||||
| Turn rack system | Inverter, public switched turn rack, stainless steel | |||||
| Baking system | High quality heating system, up to 450 ° C | |||||
| Gas Flowmeter | 3-way -4 road, high-precision gas flow controllers, gas flow and gas flow controller supporting digital instrument can be controlled fixed amount of gas, but also with the process memory function | |||||
| Total power | 25kw | 35kw | 40kw | 45kw | 60kw | 80kw |
| Alarm protection | Electricity, water, gas pressure automatic alarm when missing, diffusion pump, automatic target water alarm reminder | |||||
| Operating system | Semi-automatic or fully automatic operation system, PLC + touch screen | |||||
| Electrical systems | World famous brands, Schneider, Omron, Siemens, etc. | |||||
| Remark | Special requirements can be customized according to customer requirements | |||||
| Ⅱ,Vacuum System Parameters | ||||||
| Ultimate vacuum | 6.0*10-4 | |||||
| Pumping speed | Atmospheric pressure to6.0×10-2 Pa ≤ 6min | |||||
| Boost rate (dwell) | 0.67 Pa/ hr. | |||||
| Ⅲ,Customers need to prepare | ||||||
| 1.Required field equipment (m) |
2*3*3 | 3*4*4 | 3*4*4 | 3*4*4 | 3*5*4 | 5*8*5 |
| 2.Electricity | Total power about 70 KVA (three-phase four-wire + ground), auxiliary equipment users should bring along their own. (Mexico with 60 HZ 180 V since the transformer) | |||||
| 3.Water | Circulating cooling water, water towers or chillers, hydraulic 3-6kg, water temperature less than 25 degrees | |||||
| 4.Air Compressor | Barometric pressure 0.8Pa | |||||

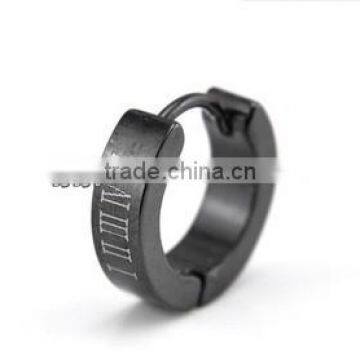

| IIII,Products suitable for coating | ||||||
| Metal, glass, ceramics, | ||||||
We can make design the dimension of the vacuum chamber according to your requirement.
We can also design and configure the vacuum unit and electric controlling system according to your requirement.
