6.35mm Photopolymer Printing Plates1,Green Product
2,Samples available
3,Certificate: SGS, ISO9001:2008, ISO14001:2004

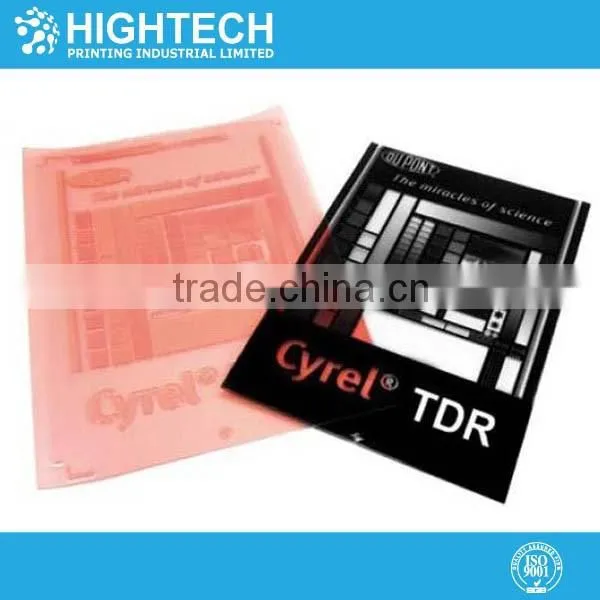

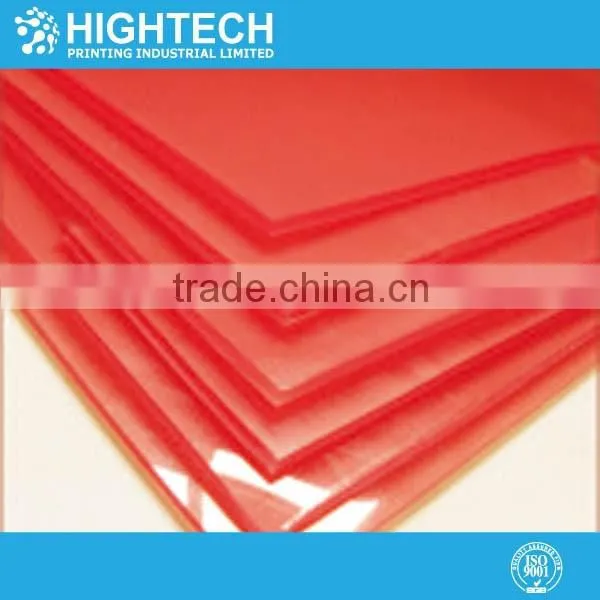

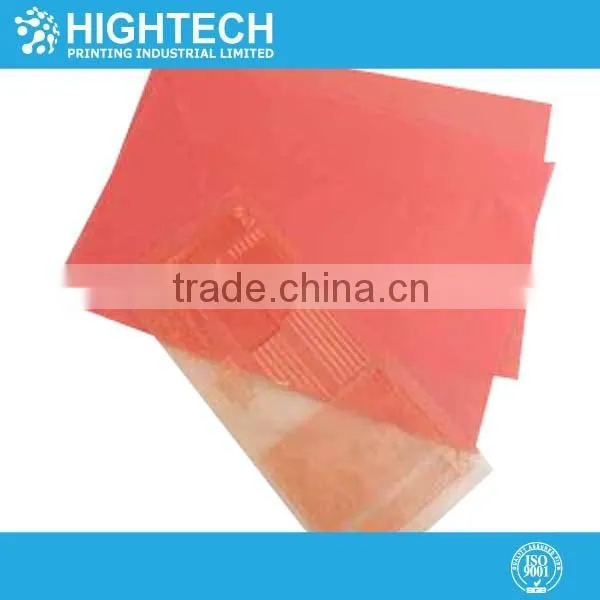

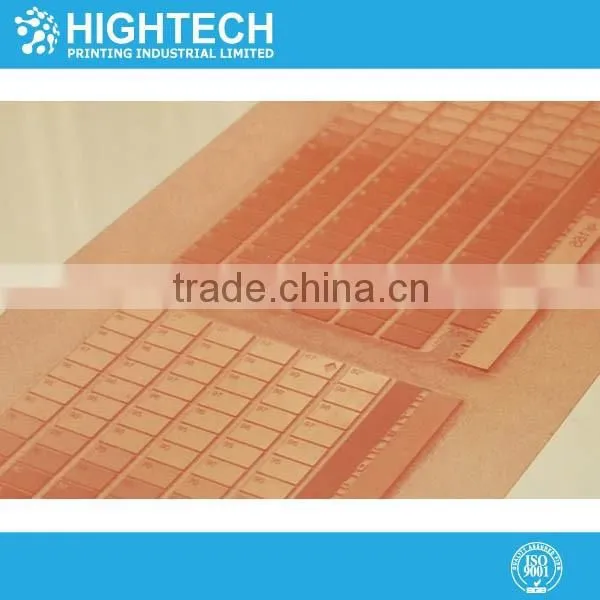

6.35mm Photopolymer Printing Plates
Features:
Green Product, suitable for water base ink
Optimal hardness and flexibility

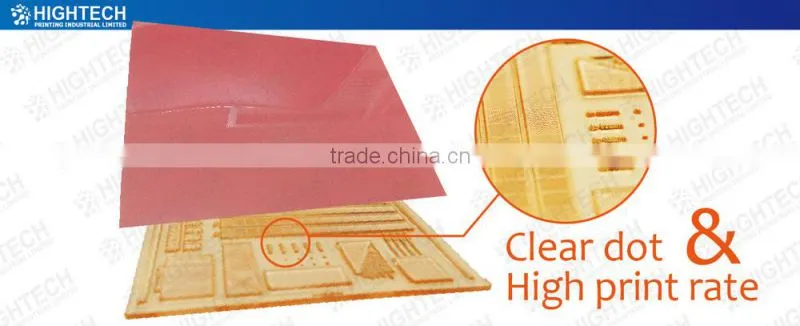

Excellent dot and isolated line reproduction
Solid printing performance
High latitude of exposure and processing
Good ink transfer
High impression
Characteristics:
Type |
R635 |
Plate Thickness (mm) |
6.35 |
Durometer (Shore A) |
35-33 |
Recommended Relief Depth (mm) |
2.2-3.0 |
Image Reproduction |
3%~95% |
Maximum Line, Line/Inch |
85 |
Minimum isolated line |
0.30mm (0.0118inch) |
Minimum Isolated Dot |
0.50mm (0.0197inch) |
Compatible Ink |
Suitable for water and alcohol-based ink, incompatible with oil-based ink, hydrocarbon solvent or the ink containing ethyl acetate more than 25% |
Main Application |
Corrugated board, thick board etc. |
Dimension:
Type |
R635 |
|
Thickness(mm) |
6.35 |
|
|
Size (mm) (inch) |
457×762 (18×30) |
√ |
762×1016 (30×40) |
√ |
|
900×1200 (35.4×47.2) |
√ |
|
1067×1524 (42×60) |
√ |
|
1067×2032 (42×80) |
√ |
|
Technical Specification:
Type |
R635 |
Thickness (mm) |
6.35 |
Back Exposure (seconds) |
120-240 |
Main Exposure (mins) |
12-20 |
Rinsing (mins) |
9-12 |
Drying(hours) |
3-4 |
Detackfying (minutes)) |
5-8 |
Post Exposure (mins) |
5 |
Note:
1) Platemaking conditions: light of 80 watts (11.7mW/cm2 under 365nm), platesetter temperature 24-30°C.
2) All the above data is depended on our plate-making device. Due to the different requirements of plate-making device, UV lamp power, relief depth and print image, the above recommended time can be changed appropriately. Customers should test on their own device for optimum plate quality.
1. Unexposed plates should be stored in cool areas (4-32 degree)away from heat. The plates must be placed flatly, and protected from contacting UV light. It is recommended to unpacked and handled in yellow light.
2. Printing plate should be avoid excessive white light, irradiating from sunlight and exposing in high concentrated ozone environments for a long time either.
3. After being unloaded, the plates should be cleaned thoroughly.
