Specifications
Offset Printing Plate1,Green Product
2,Free Samples
3,Excellent Solid printing performance
4,High impressions

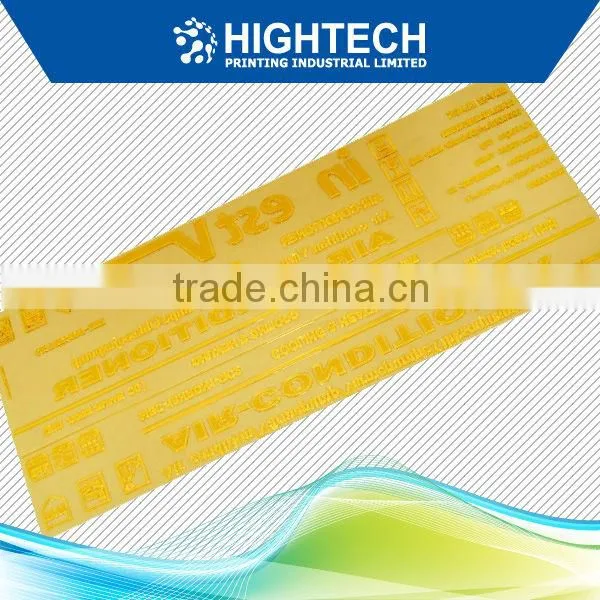

factory quality Offset Printing Plate
Features:
Green Product, suitable for water base ink
Optimal hardness and flexibility
Excellent dot and isolated line reproduction
Solid printing performance
High latitude of exposure and processing
Good ink transfer
High impression.
Characteristics:
Type |
R394 |
Plate Thickness(mm) |
3.94 |
Durometer (Shore A) |
41-45 |
Recommended Relief Depth (mm) |
1.8-2.0 |
Image Reproduction |
3%~95% |
Maximum Line, Line/Inch |
100 |
Minimum isolated line |
0.30mm (0.0118inch) |
Minimum Isolated Dot |
0.50mm (0.0197inch) |
Compatible Ink |
Suitable for water and alcohol-based ink, incompatible with oil-based ink, hydrocarbon solvent or the ink containing ethyl acetate of more than 25% |
Main Application |
Corrugated board, thick board, paper |
Technical Specification:
Type |
R394 |
Thickness (mm) |
3.94 |
Back Exposure (seconds) |
35-60 |
Main Exposure (mins) |
7-20 |
Rinsing (mins) |
5-7 |
Drying(hours) |
1.5-2 |
Detackfying (minutes)) |
5-7 |
Post Exposure (mins) |
5 |
Dimension:
Type |
R394 |
Thickness(mm) |
3.94 |
|
Size (mm) (inch) |
457×762 (18×30) |
762×1016 (30×40) | |
900×1200 (35.4×47.2) | |
1067×1524 (42×60) | |
1067×2032 (42×80) | |
1200×2032 (47.2×80) | |
1270×2032 (50×80) |
Note:
1) Platemaking conditions: light of 80 watts (11.7mW/cm2 under 365nm), platesetter temperature 24-30 °C.
2) All the above data is depended on our plate-making device. Due to the different requirements of plate-making device, UV lamp power, relief depth and print image, the above recommended time can be changed appropriately. Customers should test on their own device for optimum plate quality.
factory quality Offset Printing Plate
