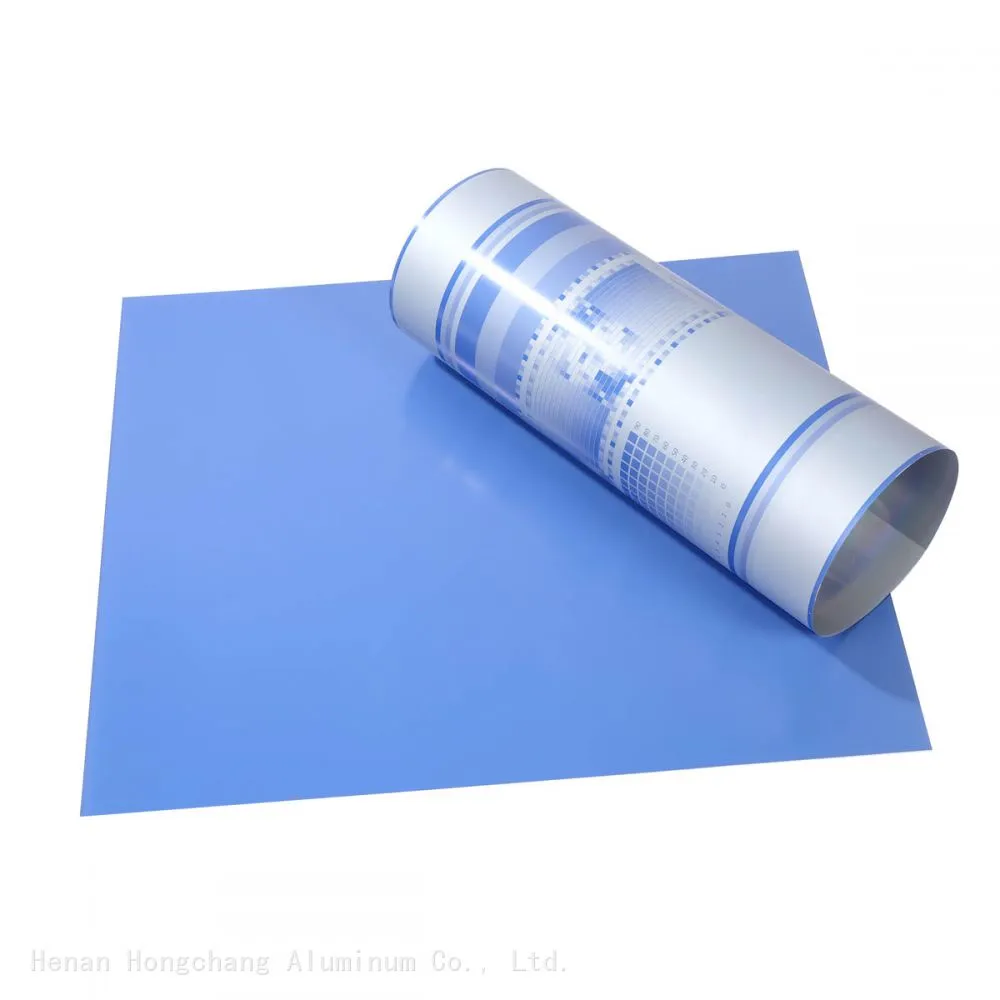

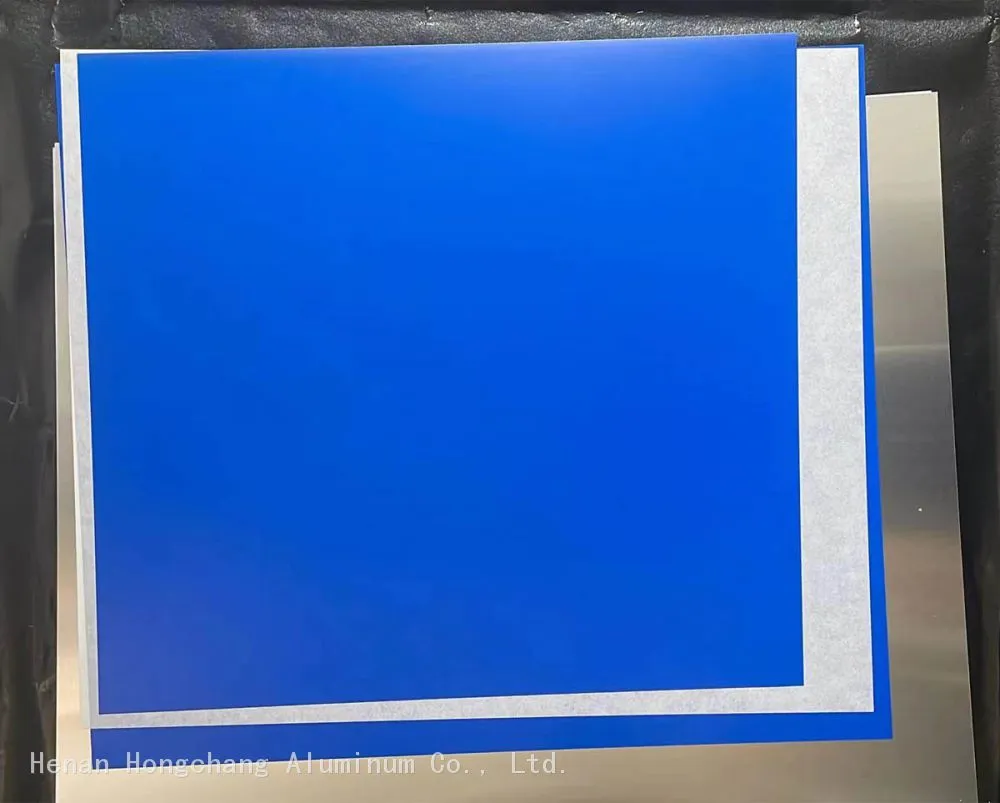

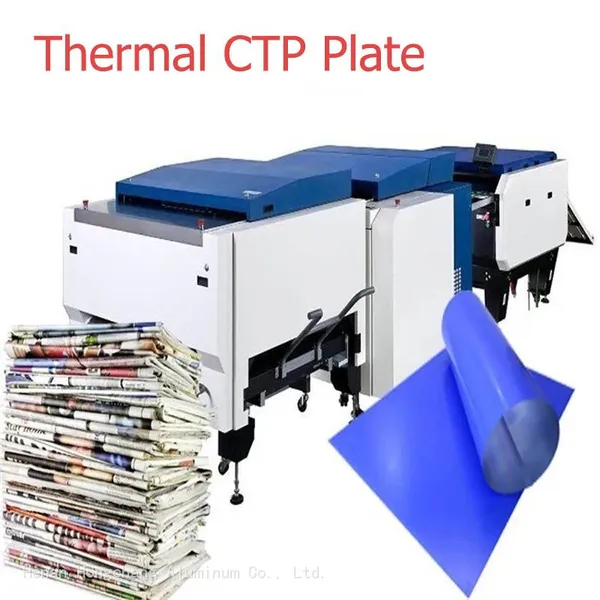

Thermal offset printing plates are CTP plate materials manufactured using thermal imaging technology. They are typically made from high-quality aluminum substrates, which undergo electrochemical graining to create a uniform roughened surface, followed by anodizing and special coating treatment. This provides excellent photosensitivity and printing adaptability.
Unlike conventional UV-exposure offset plates, thermal CTP plates use laser-generated heat to act directly on the heat-sensitive coating on the plate surface. The coating undergoes physical or chemical changes to form the image and non-image areas.
These products are suitable for sheet-fed offset presses, commercial web offset presses, and certain packaging printing equipment. They can meet the requirements of text, line work, solid areas, gradient patterns, and high-definition halftone images.
Thermal CTP Plate Specifications
Item |
Technical Specification |
Product Type |
Thermal CTP Offset Printing Plate |
Substrate |
High-purity electrolytic aluminum sheet |
Common Aluminum Alloys |
1050, 1060, 1070 |
Thickness |
0.13 mm, 0.15 mm, 0.20 mm, 0.27 mm, 0.30 mm |
Width |
Customized according to customer equipment requirements |
Imaging Method |
Thermal laser exposure |
Sensitivity Wavelength |
Approximately 830 nm |
Resolution |
Up to 2400 dpi or above |
Dot Range |
1%–99% |
Printing Method |
Offset printing |
Compatible Equipment |

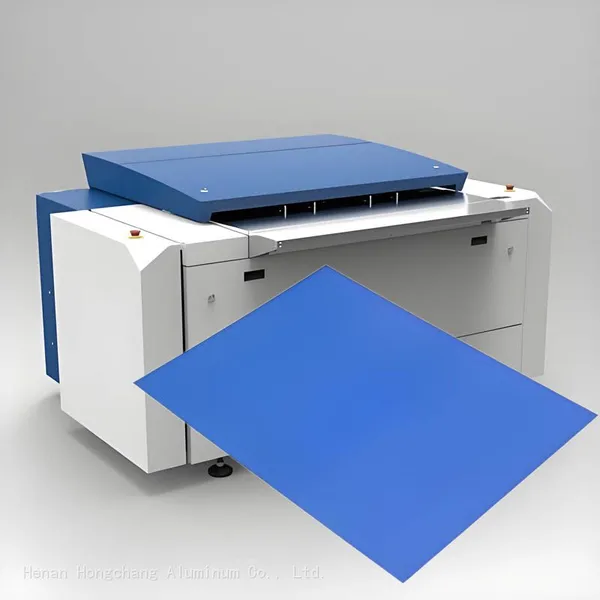

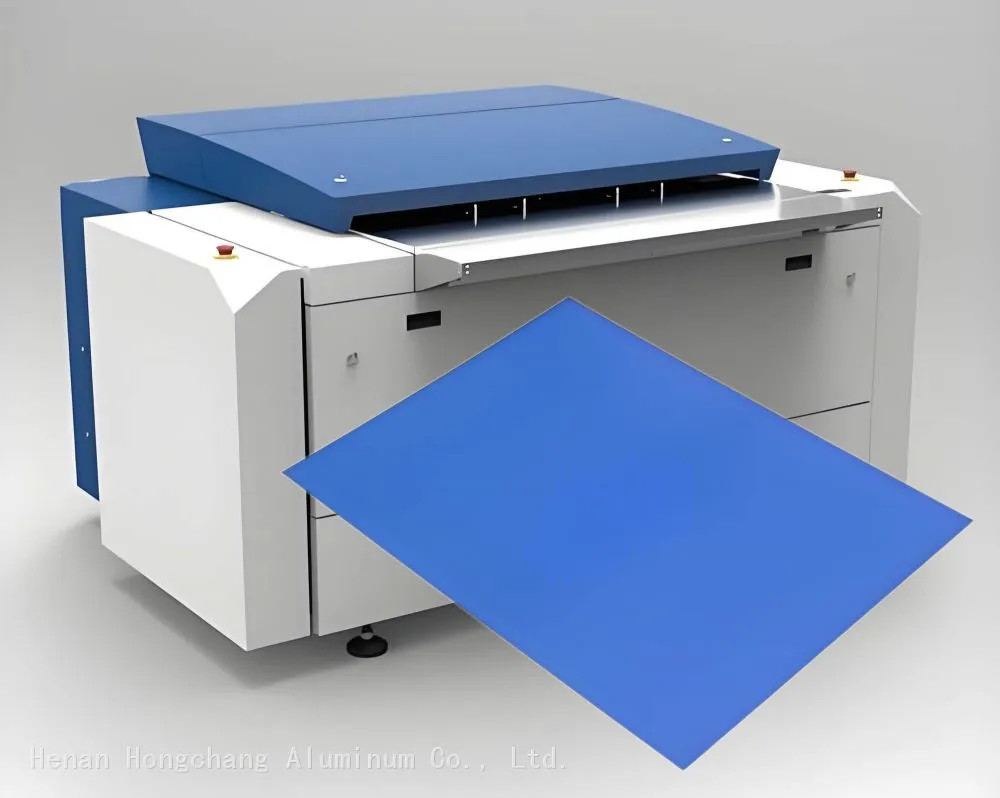

Mainstream thermal CTP plate setters |
Coating Color |
Blue or green coating, depending on model |
Key Advantages of Thermal CTP Plates
1. High Sensitivity for Improved Plate-Making Efficiency
The high-sensitivity coating requires lower exposure energy, significantly reducing the exposure time for each plate. This helps eliminate prepress plate-making bottlenecks, allowing CTP plate setters to achieve their full production capacity and meet demanding delivery schedules.
2. Accurate Dot Reproduction and Outstanding Imaging Quality
Thermal imaging offers a distinct temperature threshold, resulting in sharp boundaries between image and non-image areas. The plate supports 1%–99% dot reproduction and 240 lpi AM screening, and can even achieve 20-micron FM screening. It delivers excellent reproduction of fine text and high-fidelity images.
3. Excellent Run Length for Both Short and Long Print Runs
The plate combines high run length with cost-effectiveness. Unbaked plates can achieve a run length of more than 100,000 impressions, while baked plates can reach more than 300,000 impressions. Premium double-layer coated products can achieve 400,000 to 600,000 impressions, greatly reducing plate replacement frequency and plate consumption.
4. Daylight Handling for an Improved Working Environment
No complicated darkroom installation is required. Plate operators can load plates, expose, and process them under normal lighting conditions. The plate has high tolerance to ambient light, reducing workshop space and equipment investment while making the production process more convenient, safe, and controllable.
5. Rapid Ink-Water Balance and Reduced Start-Up Waste
The plate substrate is treated with electrochemical multi-layer graining and anodizing, creating clearly defined hydrophilic and oleophilic areas. After mounting on the press, the plate quickly reaches ink-water balance, enables faster color matching, and achieves stable printing performance. This significantly reduces make-ready time and minimizes paper and ink waste.
6. Strong Compatibility and Reliable Quality
The plate is fully compatible with mainstream 830 nm thermal CTP plate setters. With advanced coating technology, it provides excellent exposure and processing latitude, ensuring high consistency in mass production. It is an ideal solution for printing companies seeking standardized, scalable, and stable production.
Applications
High-sensitivity thermal offset printing plates have a wide range of applications and can be selected according to print quantity, paper type, ink system, and equipment conditions. Main applications include:
Commercial brochures, corporate catalogs, product catalogs
Books, textbooks, magazines, journals, and book covers
Posters, leaflets, flyers, instruction manuals, and advertising inserts
Pharmaceutical packaging, food packaging, cosmetic packaging, and gift box packaging
Paper bags, hang tags, labels, and premium paper products
Bank forms, invoices, documents, office printing materials, and forms
Short- and medium-run fast printing, as well as standard-volume offset printing orders
For jobs with complex content, high graphic and image accuracy requirements, and tight delivery schedules, high-sensitivity thermal offset printing plates provide efficient and reliable plate-making support.
Why Choose Us?
As a professional manufacturer and exporter of thermal CTP offset printing plates, we focus on supplying high-quality and highly stable offset plate materials to printing companies worldwide. With advanced production equipment, a strict quality-control system, and extensive international trade experience, our products have been exported to many countries and regions across Asia, the Middle East, Europe, Africa, and South America.
Our products are widely used in commercial printing, packaging printing, publishing, and label printing industries.

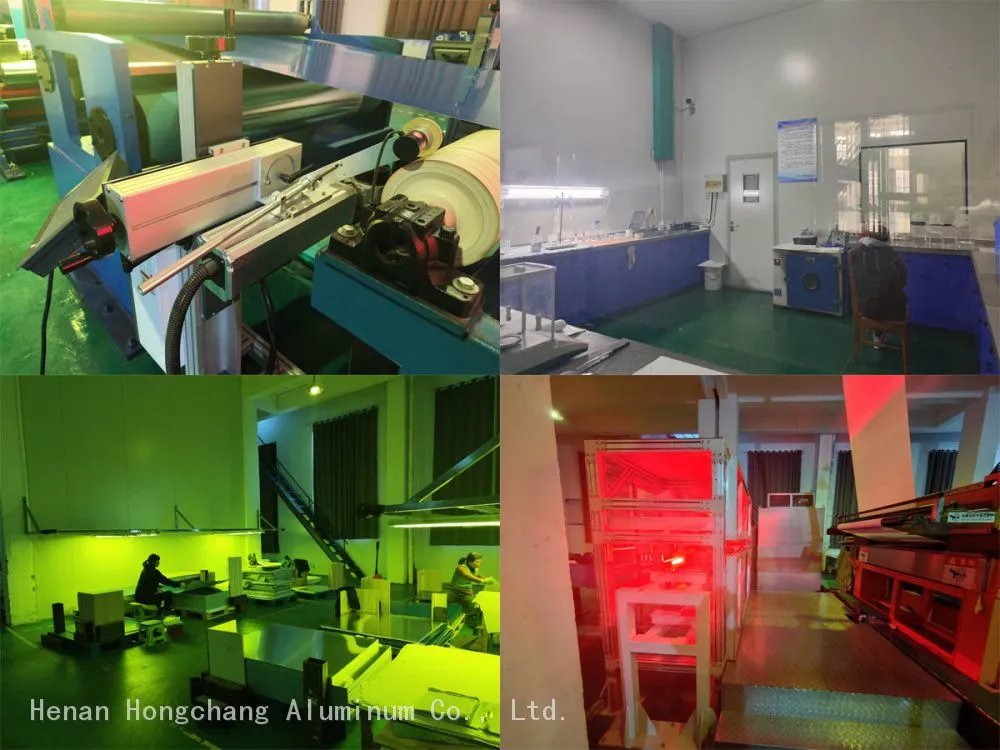

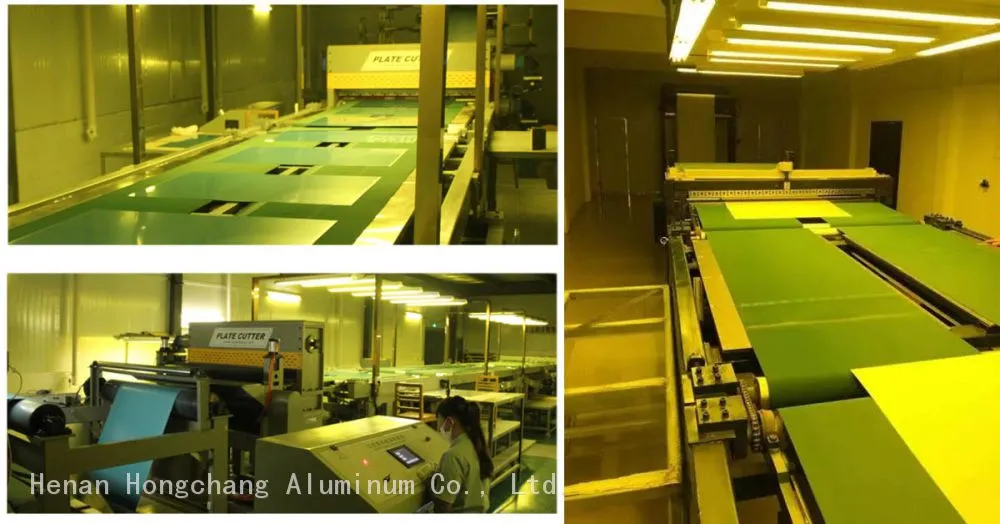

Our company is equipped with modern thermal CTP plate production lines, including advanced automatic coating equipment, electrolytic graining equipment, anodizing production lines, and high-precision testing instruments. These facilities ensure excellent and consistent quality for every plate.
We always adhere to the principle of "Quality First, Customer First." We provide reliable products and professional, efficient services to help customers improve printing efficiency and reduce production costs.
FAQ
Q1: Which CTP machines are suitable for thermal offset printing plates?
A: Our thermal CTP offset printing plates are compatible with most 830 nm thermal CTP plate setters and can work with various internationally recognized equipment brands. Specific compatibility can be confirmed based on your machine model.
Q2: What thicknesses are available for your thermal offset printing plates?
A: Standard thicknesses include:0.13 mm, 0.15 mm, 0.20 mm, 0.27 mm, 0.30 mm, etc.
Other special specifications can also be customized according to customer requirements.
Q3: What is the run length of the thermal offset printing plate?
A: Run length depends on printing conditions, ink type, paper quality, and equipment maintenance. Under normal conditions, our plates can meet the needs of high-volume commercial and packaging printing. For higher run-length requirements, we can recommend suitable product solutions.
Q4: Do you support customized sizes?
A: Yes. We can cut and customize plates according to the customer's CTP machine model or specific size requirements to suit different printing equipment.
Q5: Can you provide free samples?
A: Yes. We can provide samples for testing according to your actual requirements. Bulk purchasing can proceed after the product performance has been confirmed.
Q6: Which countries do you export to?
A: Our products have been exported to Europe, the Middle East, Southeast Asia, South America, Africa, and other regions, and have been recognized by many printing companies.
Q7: How do you ensure product quality?

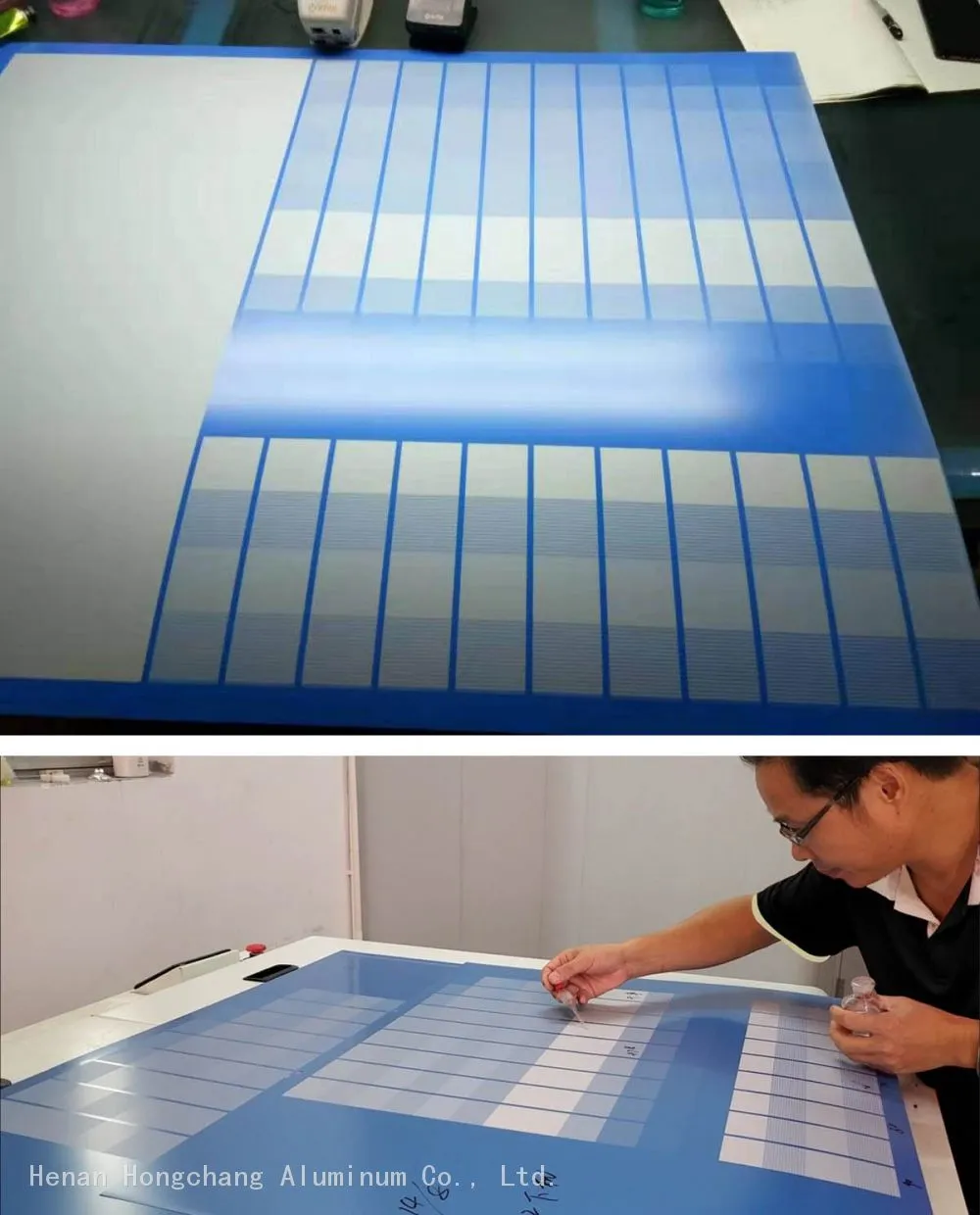

A: We use high-quality aluminum substrates and advanced coating technology, while strictly implementing quality control throughout the production process. Before delivery, each batch undergoes multiple inspections, including photosensitivity, resolution, run length, and surface quality tests, to ensure stable and reliable performance.
Q8: What is the packaging method?

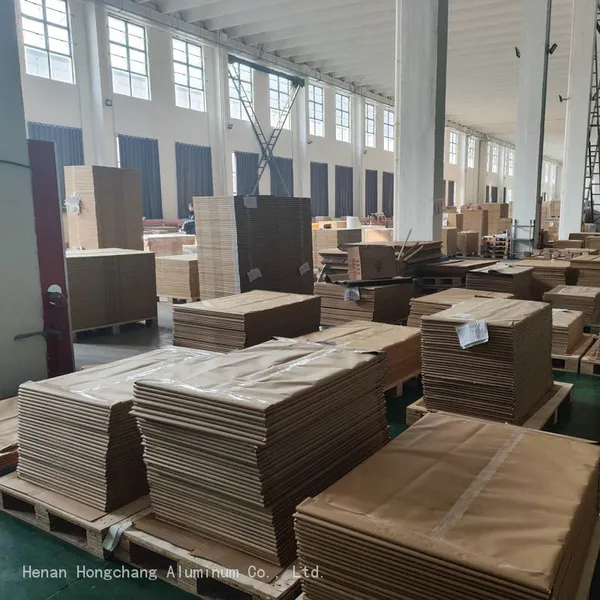

A: Our products are packaged with moisture-proof, shock-proof, and pressure-resistant materials, making them suitable for sea, land, and air transportation. Neutral packaging or OEM branded packaging is available upon request to ensure safe delivery.
Q9: What is the usual delivery time?
A: Standard specifications are generally available from stock and can usually be shipped within 7–15 days. Delivery time for customized products will depend on the specifications and order quantity.
Q10: How can I get a quotation?
A: Please provide the following information, and we will send you a detailed quotation within 24 hours:
Plate size (Length × Width)
Required thickness
Purchase quantity
Equipment model in use
Destination port or receiving country
