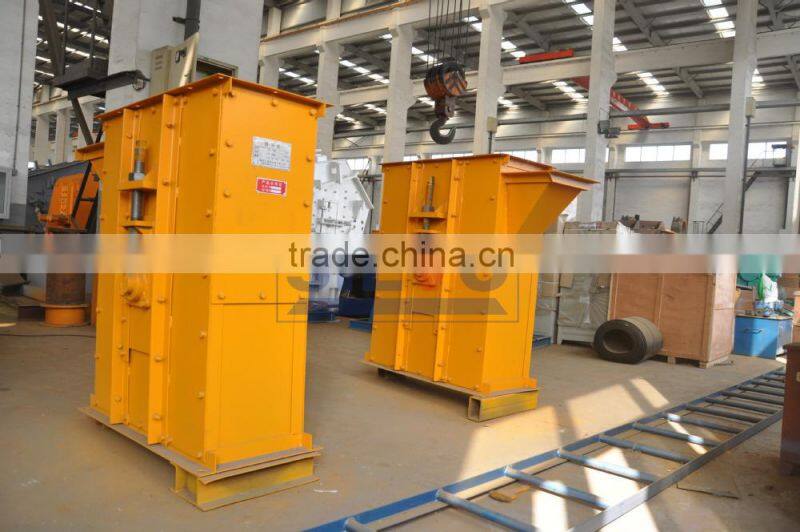

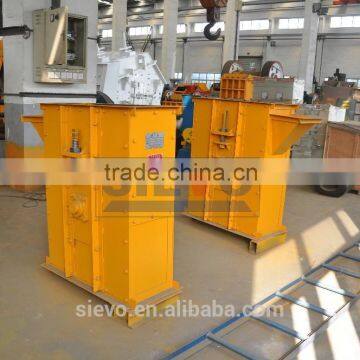

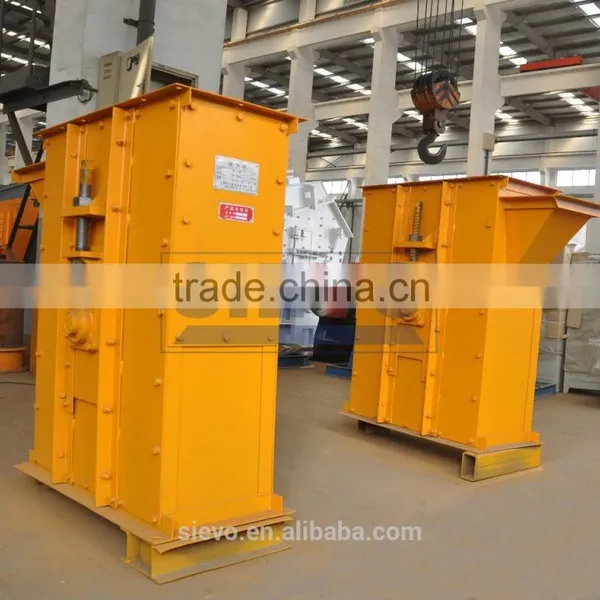

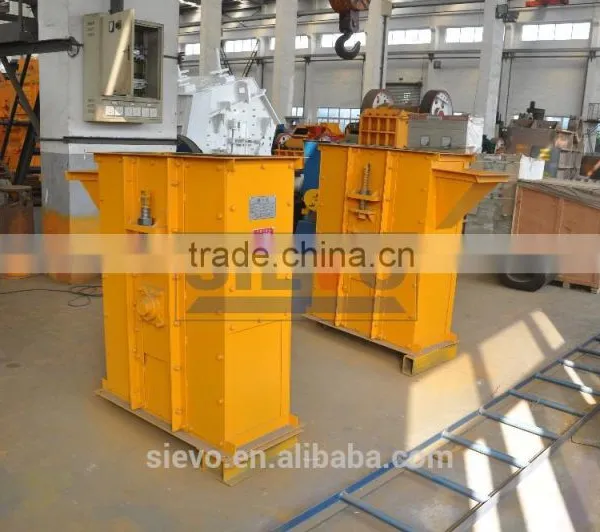

chain Bucket Conveyor /elevator machine for packaging
- 30 Set / Sets per Month
- Shanghai port
- T/T L/C D/P D/A Credit Card PayPal
- Hanging Vibrating Feeder Screw ZSW Series Vibration Feeder For Quarry Stone
- Coal Mining Industry Vibratory Feeder Industrial And Vibrating Feeder Capacity Calculation
- Vibratory Feeder Industrial And Vibratory Feeder Controller Price
- Vibratory Feeder Industrial And Vibrating Feeder Capacity Calculation
- Mining Selecting Vibratory Feeder Industrial For Sale
- Vibratory Feeder Industrial And Vibratory Feeder Controller Price
Product Details
Condition: | New | Application: | material convey | Capacity(t/h): | 114 (m³/h) |
Place of Origin: | Shanghai, China | Brand Name: | Sievo | Model Number: | HL630 |
Certification: | CE ISO9001 | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

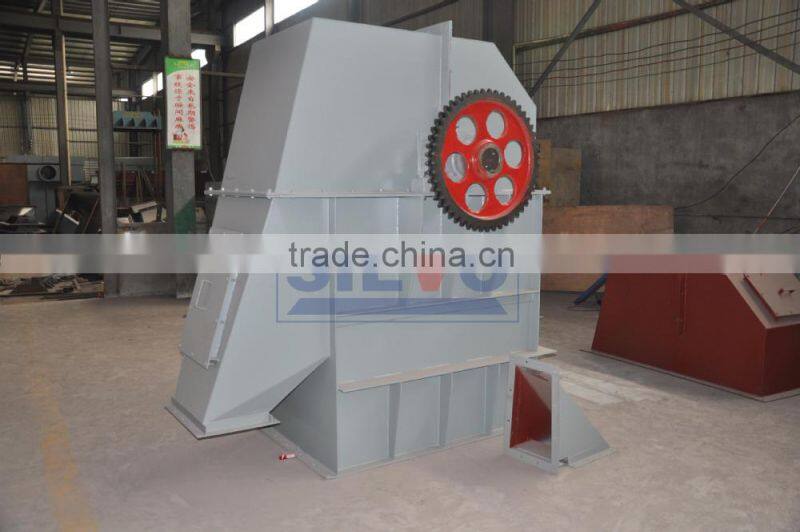

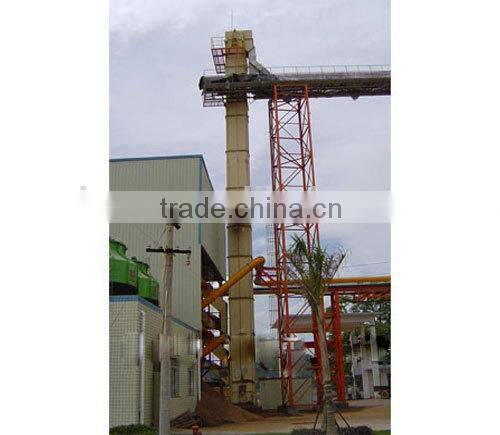

Chain Bucket Elevator Introduction
HL series of chain bucket elevator is a type of ring chain, which adopts the model of centrifugal unloading and dig-loading. And its traction mechanism is two circular chains. In our company, this series is suitable for vertical conveying of the materials with the bulk density less than1.5 t/m³, the powdery and granular materials are easy to dig, and the small lump materials have low abrasiveness, like coal, cement, gravel, sand, chemical fertilizer, and grains, etc. Besides, it can convey the materials with the temperature below 250℃.
Working Principle
The hopper scoop up the materials from the stock bin below the elevator , and then covey it up to the head through the chain,and throw the material out the discharge throat.The empty buckets then continue back down to the boot to continue the circle.
Performance Feature
1.Adopting inflow feeding and guide discharging,so the drive power is small and low energy consumption;
2.It can elevate many kinds of materials,such as coal,cement,sand chemical fertilizer,etc.and it has the good sealing,less environmental pollution;
3.Excellent running reliability and can elevate to a certain hight;
4.Long service life and easy maintenance.
Main Technical Parameters of Chain Bucket Elevator :
Model | HL250 | HL315 | HL400 | HL500 | HL630 | ||||||
Hopper type | ZH | SH | ZH | SH | ZH | ZH | SH | ZH | SH | ZH | |
Capacity (m³/h) | 31.43 | 48.19 | 35 | 59 | 58 | 94 | 73 | 118 | 114 | 185 | |
Hooper | Volume (L) | 3.0 | 4.6 | 3.75 | 6 | 5.9 | 9.5 | 9.3 | 15 | 14.6 | 23.6 |
Distance (mm) | 500 | 512 | 688 | ||||||||
Chain | Steel rod diameter*pitch (mm) | Φ14×15 | Φ18×64 | Φ22×86 | |||||||
Fracture strength of single-chain (KN) | ≥190 | ≥320 | ≥480 | ||||||||
Traction weight in unit length (kg/m) | 21 | 23 | 25.64 | 26.58 | 31.0 | 31.9 | 41.5 | 44.2 | 49.0 | 52.3 | |
Speed of driving chain wheel (r/min) | 44.11 | 42.5 | 37.6 | 35.8 | 31.8 | ||||||
Max size of material(mm) | 30 | 35 | 40 | 50 | 60 |
Shanghai Sievo Heavy Equipment CO., Ltd, is a joint-stock enterprise integrating R&D, manufacturing and marketing in Shanghai China.
The company has asset of 150 million CNY, locating at Malu high-tech park, Jiading district, Shanghai, The factory covers 60 acreages with 18000 square meters workshop, and have more than 400 staff, including a technique team of intermediate & senior 20 engineers and 70 technicians. We also have a well trained team of riveter and welder and after-sales service people.
The company products include big ball mill, rotary kiln, drier, cement production line, and dozen of products series of jaw crusher, impact crusher, sand maker(impact crusher), vibrating feeder, screen, sand washer, belt conveyor etc. up to hundreds sets of calcining, crushing and powdeing models It is widely used in mining, chemical, metallurgy, construction material, coal, refractory material and other industries etc.
