Ball Mill Roller

Ball Mill Roller thumbnail-1
Ball Mill Roller photo-1
US$ 1 - 99,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Ball Mill
Capacity(t/h):
0.5-260
Contact Supplier Request Quote Chat Now
Shanghai Sievo Heavy Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Ball Mill
Capacity(t/h) 0.5-260
Place of Origin Shanghai, China
Brand Name sievo
Model Number all models

Specifications

ball mill roller
1high working efficiency use ball mill
2long working and low cost in energy

ball mill roller



Ball Mill









ball mill rollerball mill rollerball mill roller

1.Application of Ball Mill

Ball mill is the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grindable materials.



2.Working principle of Ball Mill Machine

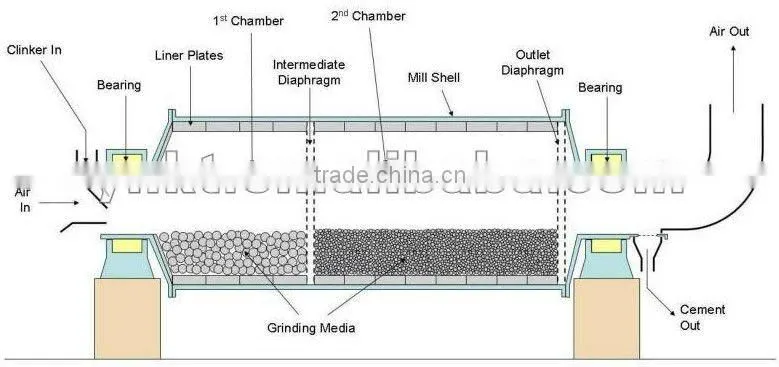

The ball mill is horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls. The shell rotates so as to generate electricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material. After the primary grinding, materials go into the second chamber through segregate screen. In the second chamber, there are flat liners and steel ball, after the secondary grinding, material is discharged from the discharging.



3.The Structure of Ball Mill

The machine is composed by feeding part, discharging part, rotation part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The rotation big gearwheel is made by cast hobbling processing and the drum is equipped with wear-resistant liner, which has good wear-resistance.



4.Features of Ball Mill

1). Wide usage, simple structure, convenient maintenance;

2).Body liners and grinding medium could be made of various of materials, good corrosion resistance;

3). Easy installation, adjustment, and operation

ball mill roller

5.Types of Ball Mill

We have various of Ball Mill,such as etc.

In order to give you a responsible quotation, you can inform us the following information:

1. Could you tell me  the material you are going to deal with?

2. Could you tell me the granularity of the material?

3. Could you tell me the granularity of the final products are you going to achive?

4. Could you tell me the producing capacity you are going to achieve?

Our engineers will suggest you the most suitable one for you according to your information.

Model

Sheel speed

(r/min)

Loading weight

(t)

Input size

(mm)

Discharge size

(mm)

Capacity

(t/h)



Motor power

(kw)

Weight

(t)

Φ900×1800

36~38

1.5

≤20

0.075-0.89

0.65-2

18.5

4.6

Φ1200×2400

36

3

≤25

0.075-0.6

1.5-4.8

30

12

Φ1200×3000

36

3.5

≤25

0.074-0.4

1.6-5

37

12.8

Φ1200×4500

32.4

5

≤25

0.074-0.4

1.6-5.8

55

13.8

Φ1500×3000

29.7

7.5

≤25

0.074-0.4

2-5

75

15.6

Φ1500×4500

27

11

≤25

0.074-0.4

3-6

110

21

Φ1500×5700

28

12

≤25

0.074-0.4

3.5-6

130

24.7

Φ1830×3000

25.4

11

≤25

0.074-0.4

4-10

130

28

Φ1830×4500

25.4

15

≤25

0.074-0.4

4.5-12

155

32

Φ1830×6400

24.1

21

≤25

0.074-0.4

6.5-15

210

34

Φ1830×7000

24.1

23

≤25

0.074-0.4

7.5-17

245

36

Φ2100×3000

23.7

15

≤25

0.074-0.4

6.5-36

155

34

Φ2100×4500

23.7

24

≤25

0.074-0.4

8-43

245

42

Φ2100×7000

23.7

26

≤25

0.074-0.4

8-48

280

50

Φ2200×4500

21.5

27

≤25

0.074-0.4

9-45

280

48.5

Φ2200×6500

21.7

35

≤25

0.074-0.4

14-26

380

52.8

Φ2200×7000

21.7

35

≤25

0.074-0.4

15-28

380

54

Φ2200×7500

21.7

35

≤25

0.074-0.4

15-30

380

56

Φ2400×3000

21

23

≤25

0.074-0.4

7-50

245

54

Φ2400×4500

21

30

≤25

0.074-0.4

8.5-60

320

65

Φ2700×4000

20.7

40

≤25

0.074-0.4

12-80

400

94

Φ2700×4500

20.7

48

≤25

0.074-0.4

12-90

430

102

Φ3200×4500

18

65

≤25

0.074-0.4



800

137



ball mill roller

Why choose our company machine

We are manufacturer in Shanghai, China. Shanghai is known as the “Pearl of China”. It serves as the largest base of Chinese industrial technology, and the busiest container port in the world. The competition in this city is severe, only companies with ending technology, stable workforce, and effective cost management could survive. With 20 years of efforts and innovation, our company is now a leading brand in China.

Affordable, high-quality machines. Our highly competitive price relies upon our ability to minimize our costs, of which our competitors don’t.

1.    We are factory(NOT Dealer)

2.    We own our factory & Land (NOT Rent)

3.    Staff reside in factory(Stable Workforce)

Producing high-quality and reliable machines is always our first priority, because we know that our success depends entirely on the satisfaction of our customers.

We never give-up quality to save cost, instead we built our machines.

 Training & service.

 Training is FREE to every customer. Whenever you need us, for installation, maintenance, or proper use of our company machines, we will be right there for you. In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
