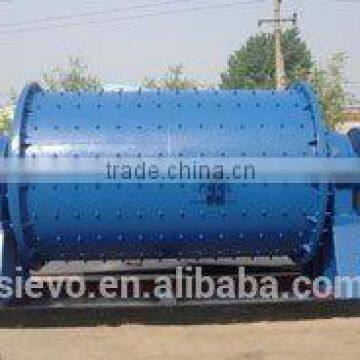

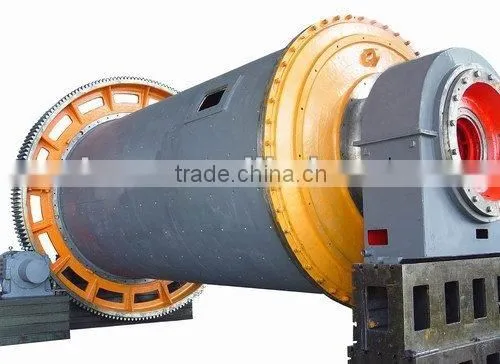

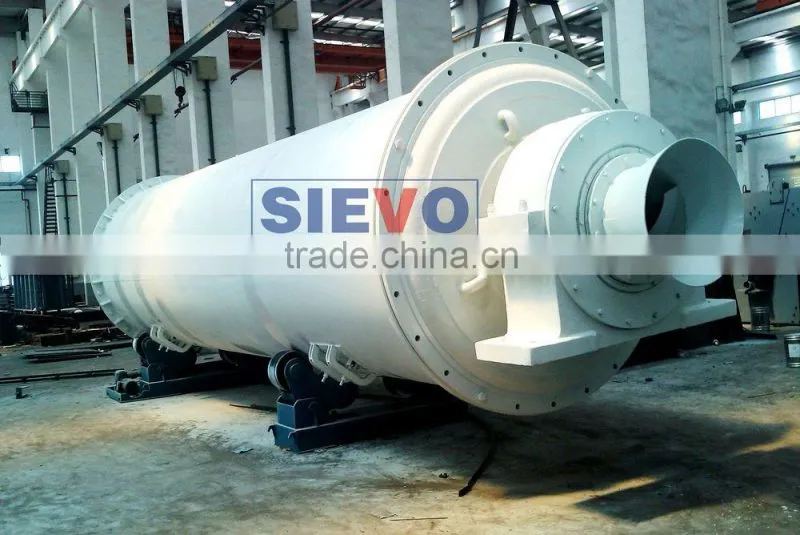

High Efficiency Ball Mill Machine sold to Egypt

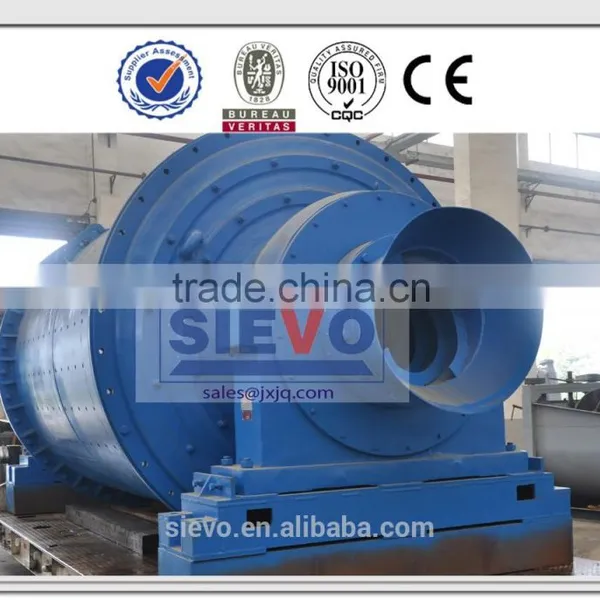

Ball Mill China with CE, ISO9001: 2000 cettification Features:
1. Easy maintenance
2. Big crushing ratio, uniform end product size.
3. Low operating cost.
Application of Ball mill:
Ball mill is the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grindable materials.

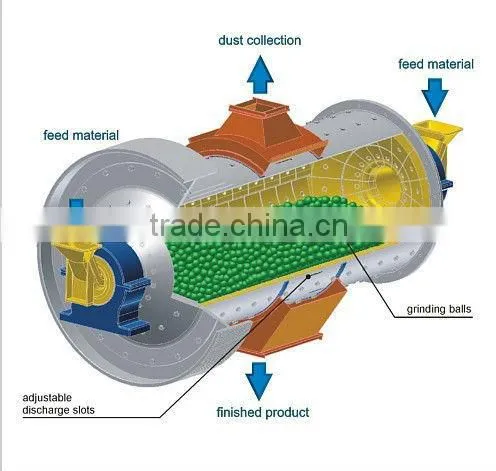

Working principle of Ball mill China:
The ball mill is horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls. The shell rotates so as to generate electricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material. After the primary grinding, materials go into the second chamber through segregate screen. In the second chamber, there are flat liners and steel ball, after the secondary grinding, material is discharged from the discharging.

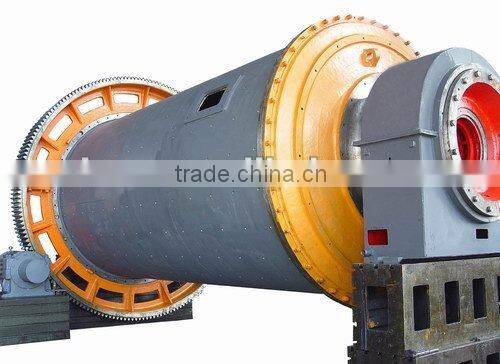

Structure of Ball mill China:
The machine is composed by feeding part, discharging part, rotation part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The rotation big gearwheel is made by cast hobbling processing and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition.
Features of Ball mill China:
1. Wide usage, simple structure, convenient maintenance;
2. Big capacity, continuous working;
3. Body liners and grinding medium could be made of various of materials, good corrosion resistance,;
4. Easy installation, adjustment, and operation
Main Technical Parameters of Ball Mill:
Model |
Rotate Speed |
Grinding Media Weight |
Feeding size |
Discharge size |
Output(t/h) |
Motor Power |
Weight |
900×1800 |
36~38 |
1.5 |
≤20 |
0.075-0.89 |
0.65-2 |
18.5 |
4.6 |
900×3000 |
36 |
2.7 |
≤20 |
0.075-0.89 |
1.1-3.5 |
22 |
5.6 |
1200×2400 |
36 |
3 |
≤25 |
0.075-0.6 |
1.5-4.8 |
30 |
12 |
1200×3000 |
36 |
3.5 |
≤25 |
0.074-0.4 |
1.6-5 |
37 |
12.8 |
1200×4500 |
32.4 |
5 |
≤25 |
0.074-0.4 |
1.6-5.8 |
55 |
13.8 |
1500×3000 |
29.7 |
7.5 |
≤25 |
0.074-0.4 |
2-5 |
75 |
15.6 |
1500×4500 |
27 |
11 |
≤25 |
0.074-0.4 |
3-6 |
110 |
21 |
1500×5700 |
28 |
12 |
≤25 |
0.074-0.4 |
3.5-6 |
130 |
24.7 |
1830×3000 |
25.4 |
11 |
≤25 |
0.074-0.4 |
4-10 |
130 |
28 |
1830×4500 |
25.4 |
15 |
≤25 |
0.074-0.4 |
4.5-12 |
155 |
32 |
1830×6400 |
24.1 |
21 |
≤25 |
0.074-0.4 |
6.5-15 |
210 |
34 |
1830×7000 |
24.1 |
23 |
≤25 |
0.074-0.4 |
7.5-17 |
245 |
36 |
2100×3000 |
23.7 |
15 |
≤25 |
0.074-0.4 |
6.5-36 |
155 |
34 |
2100×4500 |
23.7 |
24 |
≤25 |
0.074-0.4 |
8-43 |
245 |
42 |
2100×7000 |
23.7 |
26 |
≤25 |
0.074-0.4 |
8-48 |
280 |
50 |
2200×4500 |
21.5 |
27 |
≤25 |
0.074-0.4 |
9-45 |
280 |
48.5 |
2200×6500 |
21.7 |
35 |
≤25 |
0.074-0.4 |
14-26 |
380 |
52.8 |
2200×7000 |
21.7 |
35 |
≤25 |
0.074-0.4 |
15-28 |
380 |
54 |
2200×7500 |
21.7 |
35 |
≤25 |
0.074-0.4 |
15-30 |
380 |
56 |
2400×3000 |
21 |
23 |
≤25 |
0.074-0.4 |
7-50 |
245 |
5 |
2400×4500 |
21 |
30 |
≤25 |
0.074-0.4 |
8.5-60 |
320 |
65 |
2700×4000 |
20.7 |
40 |
≤25 |
0.074-0.4 |
12-80 |
400 |
94 |
2700×4500 |
20.7 |
48 |
≤25 |
0.074-0.4 |
12-90 |
430 |
102 |
3200×4500 |
18 |
65 |
≤25 |
0.074-0.4 |
According to the process condition |
800 |
137 |
Shanghai Sievo Heavy Equipment CO., Ltd, is a joint-stock enterprise integrating R&D, manufacturing and marketing in Shanghai China.
The company has asset of 150 million CNY, locating at Malu high-tech park, Jiading district, Shanghai, The factory covers 60 acreages with 18000 square meters workshop, and have more than 400 staff, including a technique team of intermediate & senior 20 engineers and 70 technicians. We also have a well trained team of riveter and welder and after-sales service people.

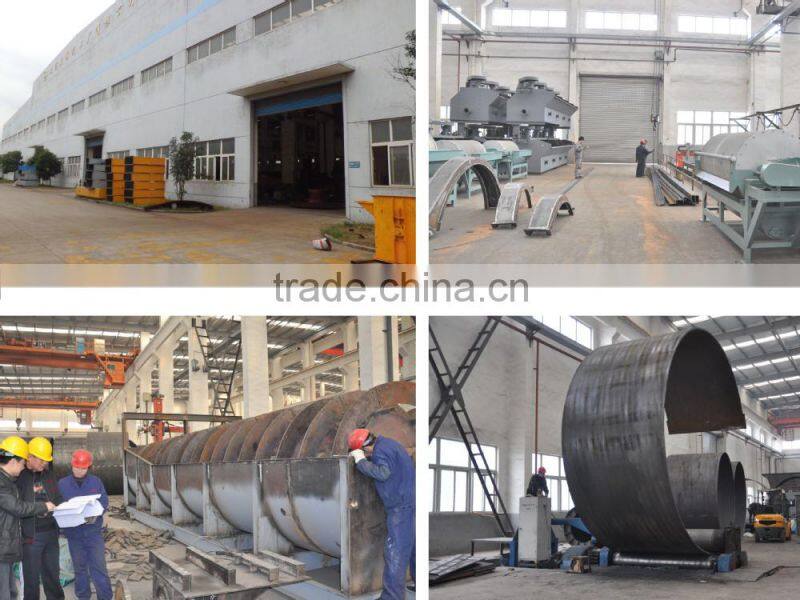

Work shop:
The company products include big ball mill, rotary kiln, drier, cement production line, and dozen of products series of jaw crusher, impact crusher, sand maker(impact crusher), vibrating feeder, screen, sand washer, belt conveyor etc. up to hundreds sets of calcining, crushing and powdeing models It is widely used in mining, chemical, metallurgy, construction material, coal, refractory material and other industries etc.
International cooperation:
Before Sale
Be a good consultant and assistant of our customer, to ensure our customer's investment will be rewarded with great profit.
1. Select the right model of equipment for customer.
2. To meet our customer's special needs, we can design and develop customized products.
3. Provide training for customer's technician.
4. We will send engineer to observe customer's working field to come up with an optimized solution.
During Sale
Respect every customer and provide them convenience and reliability. We are devoted to help customer gain more.
1. Inspect before accept the products sent by us.
2. Assist our customer to make a construction plan.
After Sale
1. The installation and testing of equipment.
2. Train the workers at present.
3 . When the installation is finished, there will be one or two service engineer staying to ensure customer's products run well.
