Help CenterFine Impact Crusher for Cement Clink Processing
Related Products
Specifications
fine impact crusher for cement clink processing2.Max feeding size:300-600mm
3.Capacity:15-310t/h
4.Granite,limestone etc

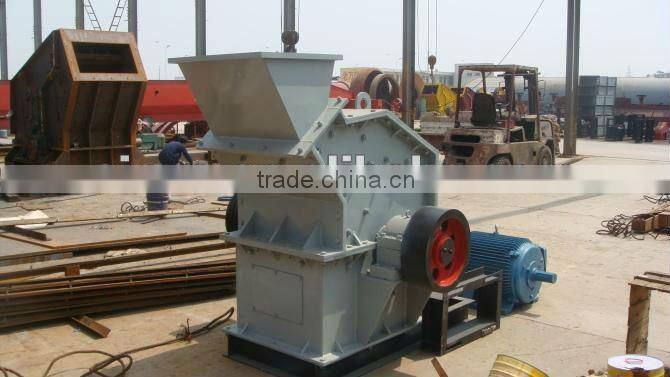

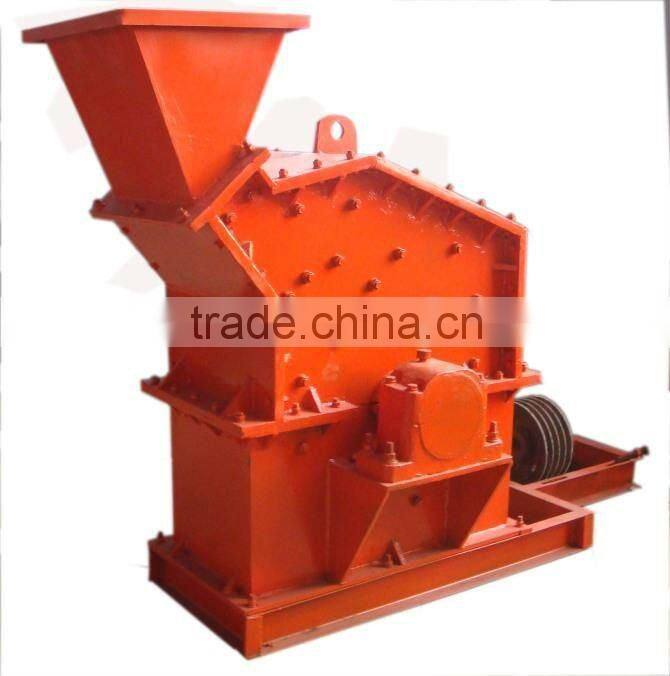

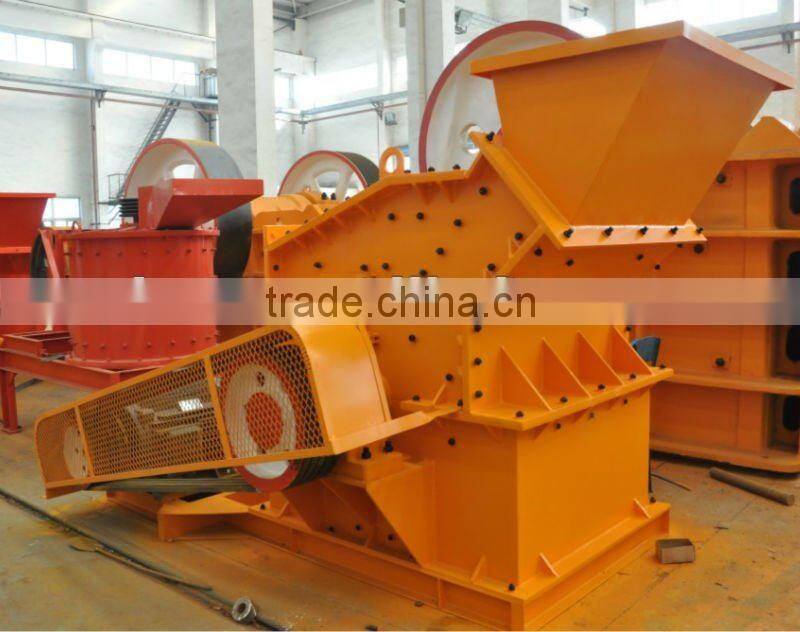

fine impact crusher for cement clink processing
2.Fine Impact Crusher adopts the newest manufacturing technology and unique structure design, so the discharged product is with cubic and perfect shape, no tension and crack. This crusher can crush materials with size smaller than 500mm and resisting strength less than 350MPa, such as granite, limestone, concrete aggregate, etc.
4.Features of Fine Impact Crusher
2.Space between impact plates and hammers can be adjusted conveniently, so the shape and size of final product can be controlled;
3.New type of abrasion-proof materials are used, so life of hammers, impact plates and lining plates is much longer;
4.High chromium hammer and unique lining plate are suitable to crush hard stones efficiently.
5.Types of Fine Impact Crusher
We have various of Fine Impact Crusher,such as PF0807, PF1007, PF1010, PF1210, PF1214,PF1315,PF1320 etc. In order to give you a responsible quotation, you can inform us the following
information:
1. What’s the material you are going to deal with?
2. What’s the granularity of the material?
3. What’s the granularity of the final products are you going to achive?
4. What’s the producing capacity you are going to achieve?
Our engineers will suggest you the most suitable one for you according to your information.
| Fine Crusher | Rotor width Ø×(mm) | Rotor width Ø×(mm) | Rotor width Ø×(mm) | Rotor width Ø×(mm) | Rotor width? Ø×(mm) | Rotor width? Ø×(mm) | Rotor width? Ø×(mm) | Rotor width? Ø×(mm) | Rotor width? Ø×(mm) |
| Model | 800×400 | 800×600 | 800×800 | 1010×1010 | 1200×1000 | 1200×1200 | 1400×1400 | 1600×1600 | 1800×1800 |
| Feeding opening size(mm) | 400×185 | 500×250 | 550×330 | 1000×350 | 1200×400 | 1200×450 | 1500×500 | 1600×550 | 1800×800 |
| Feeding size(mm) | |||||||||
| Discharge size(mm) | |||||||||
| Adjustable width of discharge gap | 5-20 | 5-20 | 5-20 | 5-20 | 5-20 | 5-20 | 5-20 | 5-20 | 5-20 |
| Cement Clinker(T/H) | 20-30 | 35-40 | 35-45 | 45-55 | 80-110 | 100-110 | 100-150 | 170-210 | 250-270 |
| Limestone(T/H) | 35-45 | 45-55 | 55-65 | 65-75 | 50-100 | 90-100 | 100-150 | 190-250 | 280-310 |
| Power(KW) | 37-45 | 45-55 | 45-55 | 55-75 | 100-110 | 100-132 | 160 | 250 | 315 |
