Specifications
corrugated carton production line*3/5/7 ply corrugated cardbord
*Easy operation
*Good after-service

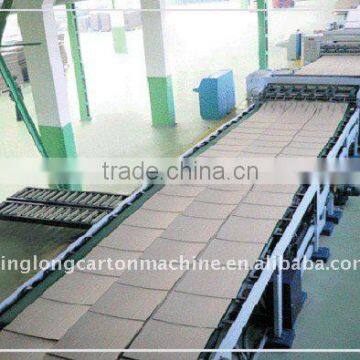

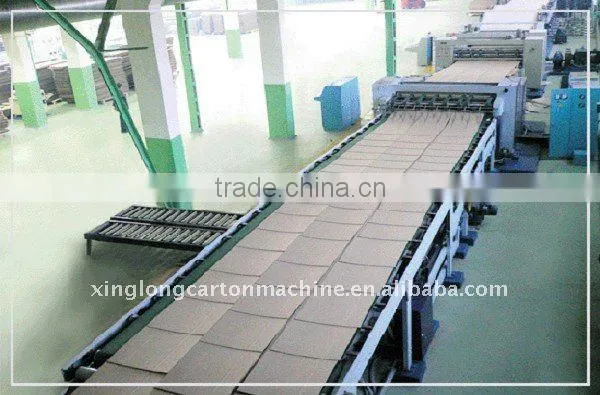

corrugated carton prodcution line:
corrugated cardboard production line mainly consist of the following equipment; Mill Roll Stand, Surface Paper(core paper) Preheater , Single Facer, Conveying Span Bridge, Glue Application Machine, Double Facer, Slitter Scorer, Cut-off, Conveyer and Stacker, Heating System, Air compression system and Glue Making System, etc.
On the base of understanding the requirements of the customers and the advanced skills at home and abroad,
3ply production line Main Technology Parameter:
Design Speed |
30-50m/min 50-80m/min 60-100m/min 80-150m/min |
Working Speed |
30-40m/min 50-70m/min 60-90m/min 80-120m/min |
Expiry Width |
1600mm-2400mm |
Power |
About 60KW-80KW |
Drum Diameter |
270mm-360mm |
Flute Type |
A,B,C,E for you choice( or user specified) |
Type of heating |
Electric, Oil |
5 ply production lineMain Technology Parameter
Design Speed |
30-50m/min 50-80m/min 60-100m/min 80-150m/min |
Working Speed |
30-40m/min 50-70m/min 60-90m/min 80-120m/min |
Expiry Width |
1600mm-2400mm |
Power |
About 80KW-100KW |
Drum Diameter |
270mm-360mm |
Flute Type |
A,B,C,E for you choice( or user specified) |
Type of heating |
Electric, Oil |
We Try Best to Satisfy Our Customers!
Pls Contact Me Freely!
