Specifications
1.Glitter Shoes machine for PVC shoes.2.PVC Shoes machine with excellent quality.
3.machine components imported.

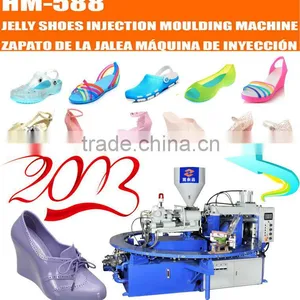

Glitter Shoe Machine PVC Shoe Machine Plastic Shoe Machine
Features
1. This machine is used in plastic shoes making industry.It is special for produce
all kinds of plastic shoes,sandals in plastic PVC TPR TPU.
2.Taiwan Made PLC program control,Servo system made in Japan.
Operation system can be showed in Chinese,English,Russian,Spanish,Arabia.
3.Machine working is automatic,only need one worker in the production.
4.Machine have automatic alarm system,touch screen will show you the problem.
and you can find the solution in our operation manual easily.
Sample produced by our machine
SPECIFICATIONS
Machine model |
HM-588 |
|
Mould-clamping Unit | ||
Work station |
|
20 |
Clamping force |
TON |
120-150 |
Opening stroke |
MM |
210 |
Mould dimension |
MM |
600*280 |
Height of injection nozzle |
MM |
280 |
Injection Unit | ||
Injector |
SET |
1 |
Screw diameter |
MM |
60 |
Screw L/D ratio |
L/D |
20 |
Max.injection volume |
CC |
600 |
Injection pressure |
Kg/cm² |
500 |
Injection speed |
Cm/s |
10 |
Screw rotation speed |
R.P.M |
0-200 |
Electricity Consumption | ||
Heating power of injector |
KW |
7 |
Hydraulic unit motor |
KW |
18.5 |
Total electric consumption |
KW |
25.5 |
Temperature control |
Section |
4 |
Dimension and Weight | ||
Machine dimension |
(L*W*H)MM |
4600*3700*2500 |
Machine weight |
KGS |
6500 |
1.We will install the machine for you in your factory.
We will teach you how to produce the products with machine,mold and material.
including the machine operation,mold design suggesions and raw material formula.
We supply 24 hours mobile and skype video call service and solve the problem on time.
We supply the longest guarantee period in this industry,1 year and 3 month.
We also can share our successful experience in market promotion.
Export standard package.We also can pack it according to customer's requirements.
and one set single color machine can load in a 20feet container.
one set double color machine can load in a 40feet container.
