Specifications
Safety Boots Injection Moulding Machine(Servo System)This machine is used to produce various kinds of safety boots for workers
Rain boot injection Machine(Rotary Single Color Plastic RainBoots Injection Moulding Machine)rainboots machine Features:
1.This machine is applied to produce various kinds of different height of PVC/TPR rain boots.It is the most ideal and efficient machine for rain boots industry at present.
2.The injection system is controlled by 2 section pressure;temperature is controlled by 4 section PID.It is operated by full automatic PLC system;
3.It uses strong pressure air to assist the workers to open mold.It uses strong and double clamping cylinder makes the products perfect.
4.Disk driving uses 2 section speed;It is more fast and stable.
Rain boot injection Machine(Rotary Single Color Plastic RainBoots Injection Moulding Machine)rainboots machine Specification:
Machine model |
HM-618-2C |
|
Mould-clamping Unit | ||
Work station |
|
12 |
Clamping force |
TON |
220 |
Opening stroke |
MM |
350 |
Mould dimension |
MM |
650*260 |
Height of injection nozzle |
MM |
650 |
Injection Unit | ||
Injector |
SET |
2 |
Screw diameter |
MM |
95,85 |
Screw L/D ratio |
L/D |
19 |
Max.injection volume |
CC |
1900,1000 |
Injection pressure |
Kg/cm² |
520 |
Injection speed |
Cm/s |
10 |
Screw rotation speed |
R.P.M |
0-180 |
Electricity Consumption | ||
Heating power of injector |
KW |
14 |
Hydraulic unit motor |
KW |
22.5,18.75 |
Total electric consumption |
KW |
55.25 |
Temperature control |
Section |
4*2 |
Dimension and Weight | ||
Machine dimension |
(L*W*H)MM |
7500*5000*2500 |
Machine weight |
KGS |
18000 |
Rain boot injection Machine(Rotary Single Color Plastic RainBoots Injection Moulding Machine)rainboots machine Products:

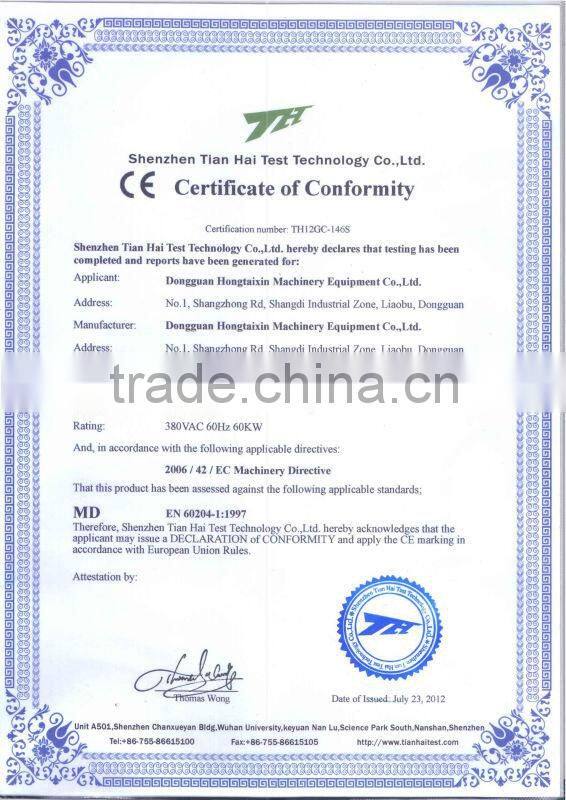

Rain boot injection Machine(Rotary Single Color Plastic RainBoots Injection Moulding Machine)rainboots machine Certificate:
