Specifications

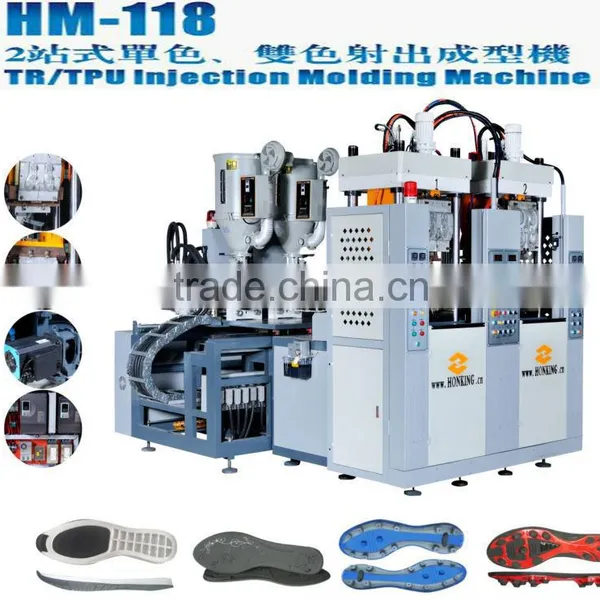

It is used to make sole,outsole,shoes,uppers,shoe components and plastic articles in PVC,TR,TPU,TPR raw material,1/2 color.Automatic static PVC/TR injection moulding machine
Featues:
1.This machine is suitable for injecting 1/2 color soles such as TR,TPR,TPU,PVC etc.
2.Adopting Electrical cabinet integrated and hydraulic systems integration, man machine interface,
display of touch screen, operate easily
3.The barrel temperature controlled with P.I.D,ensuring constant temperatur and high quality product
4.The straight pressure hydraulic system, which is very strong, fast mold locking system,
Mould thickness adjusting automatic.
5.When the moulding cycle is completed, the mould would be open on top, take it out easily.
Specifications:
Machine model |
HM-118-2 |
|
Mould-clamping Unit | ||
Work station |
2 |
|
Clamping force |
TON |
150-200 |
Opening stroke |
MM |
350 |
Mould dimension |
MM |
500*500 |
Mould height |
MM |
100-200/150-250 |
Height of injection nozzle |
MM |
60/110 |
Injection Unit | ||
Injector |
SET |
2/2*2 |
Screw diameter |
MM |
65 |
Screw L/D ratio |
L/D |
13 |
Max.injection volume |
CC |
1000 |
Injection pressure |
Kg/cm² |
650 |
Injection speed |
Cm/s |
10 |
Screw rotation speed |
R.P.M |
0-185 |
Electricity Consumption | ||
Heating power of injector |
KW |
13 |
Hydraulic unit motor |
KW |
22.5 |
Total electric consumption |
KW |
36 |
Oil tank volume / |
L |
500 |
Temperature control |
Section |
4 |
Dimension and Weight | ||
Machine dimension |
(L*W*H)MM |
5000*4000*2800 |
Machine weight |
KGS |
8000 |

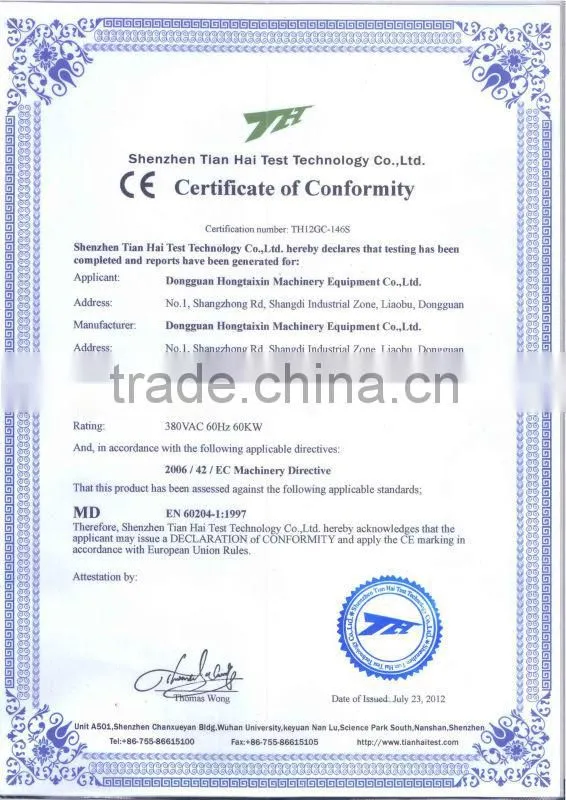

CE certificate of this machine :
