Home > Products > PVC Upper Machine > Automatic rotary type PVC upper injection moulding machine(1/2/3 color,1/4/6 stations,vertical) HM-168

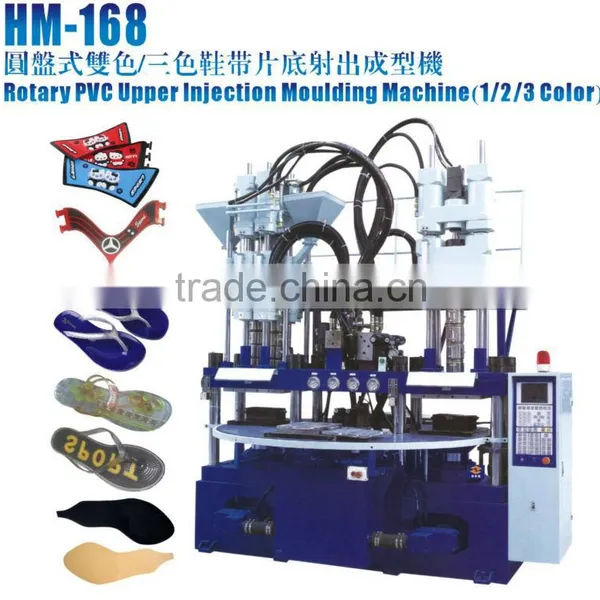

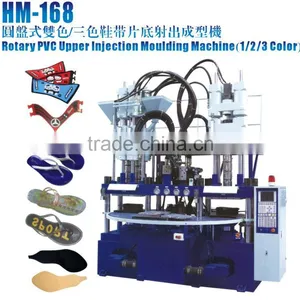

Automatic rotary type PVC upper injection moulding machine(1/2/3 color,1/4/6 stations,vertical) HM-168
- 30 Set / Sets per Month
- SHENZHEN
- T/T
You May Like
-
PVC upper machine(Upper making Machine,shoe machine,Shoelace Machine,Straps Machine)
-
PVC rain boots inection machine (two color) \ men\woman boots machine
-
2014 fashion rain boot for children
-
2014 moda bota de agua para ninos
-
automatic rotary 1/2 color pvc boots injection molding machine
-
GumBoots\Rain boot Machine prices
Product Details
| Place of Origin | Guangdong, China | Brand Name | Hongtaixin | |
| Model Number | HM-168 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
PVC upper machineSingle color pvc upper machine
Double color pvc upper machine
Tricolor upper machine
upper making machine
FEATURES
1.This machine is suitable for all kinds of one / two /three color PVC,TPR
shoelaces,baby shoes and other plastic daily necessities.
2.Less consumption,and less pollution
3.Injecting fast,with strong mold clamping pressure.
4.It can be installed easily,operated easily,needed fewer skillful operator.
5.Operation is safe and reliable.
Specifications:
Technical Terms | UNIT | HM-168-4P | HM-168-6P |
Screw Diameter | mm | φ50φ40φ40 | φ50φ40φ40 |
Injection Capacity | g | 200150150 | 200150150 |
Injecting Pressure | kg/cm | 150014501450 | 150014501450 |
Screw Speed | r.p.m | 10-250 | 10-250 |
Clamping Force | tf | 80×2 | 80×2 |
Max.mold thickness | Mm | 30 | 30 |
Injection Stroke | mm | 168 | 168 |
Mold Size | Mm | 320×310 | 320×310 |
Work Stations | 4 | 6 | |
Heating Plate Power | kw | 2.522 | 2.522 |
Work Table Height | mm | 800 | 800 |
Machie Dimension | mm | 2400×1870×2610 | 2400×2510×2610 |
Machine Weight | t | 4.2 | 4.8 |
