Specifications
PVC upper machineSingle color pvc upper machine
Double color pvc upper machine
Tricolor upper machine
upper making machine

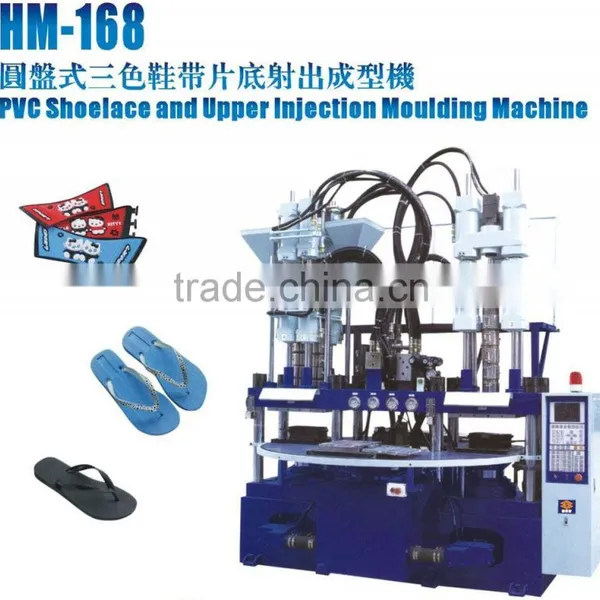

PVC Upper Machine(Upper making Machine,shoe machine,Shoelace Machine,Straps Machine)
FEATURES
1.This machine is suitable for all kinds of one / two /three color PVC,TPR
shoelaces,baby shoes and other plastic daily necessities.
2.Less consumption,and less pollution
3.Injecting fast,with strong mold clamping pressure.
4.It can be installed easily,operated easily,needed fewer skillful operator.
5.Operation is safe and reliable.
PARAMETER
Technical Terms | UNIT | HM-168-4P | HM-168-6P |
Screw Diameter | mm | φ50φ40φ40 | φ50φ40φ40 |
Injection Capacity | g | 200150150 | 200150150 |
Injecting Pressure | kg/cm | 150014501450 | 150014501450 |
Screw Speed | r.p.m | 10-250 | 10-250 |
Clamping Force | tf | 80×2 | 80×2 |
Max.mold thickness | Mm | 30 | 30 |
Injection Stroke | mm | 168 | 168 |
Mold Size | Mm | 320×310 | 320×310 |
Work Stations | 4 | 6 | |
Heating Plate Power | kw | 2.522 | 2.522 |
Work Table Height | mm | 800 | 800 |
Machie Dimension | mm | 2400×1870×2610 | 2400×2510×2610 |
Machine Weight | t | 4.2 | 4.8 |
