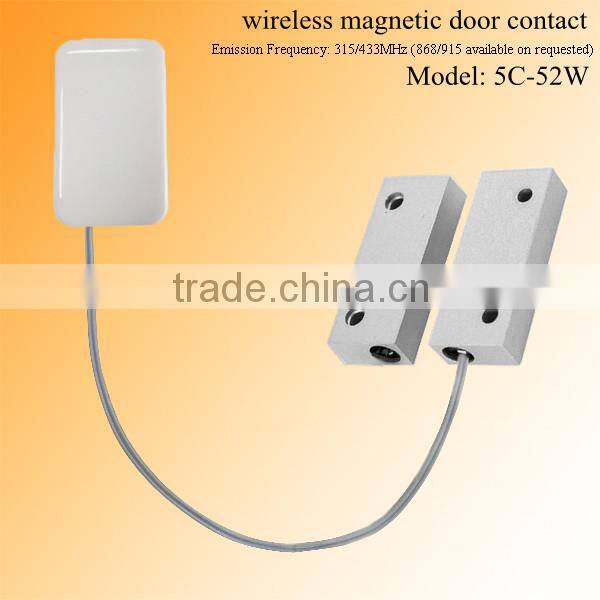

5C-52W New Wireless Magnetic Contacts for Steel Door or WindowUS$ 1 - 5MOQ: 200 Pieces -

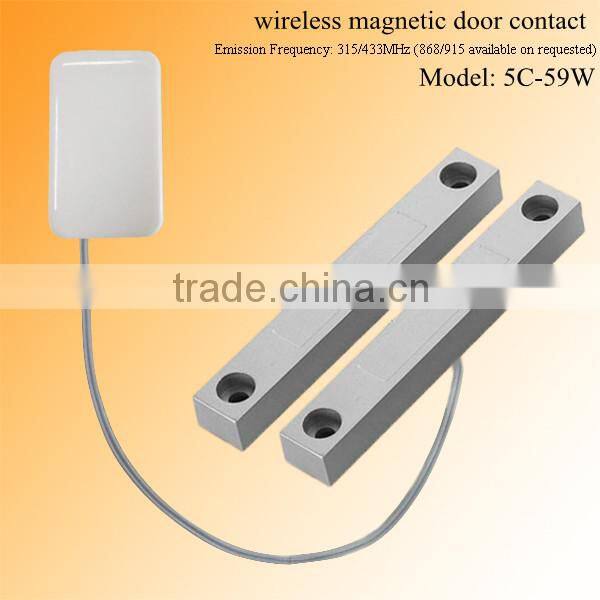

5C-59W New Wireless Magnetic Contacts for Metal DoorUS$ 1 - 5MOQ: 200 Pieces
-
E-5C 433MHz Wireless Door Contacts/magnetic Switch/roller Door Sensor 5C-55WUS$ 4 - 5MOQ: 1000 Pieces
-
5C-52B Magnetic Contacts for Metal DoorUS$ 2 - 3MOQ: 10 Pieces
-
5C-44B 2 Wire NC Type Surface Mounted Door Magnetic ContactUS$ 0.35 - 0.8MOQ: 1000 Pieces
Welcome to choose E-5Continents brand
we specialized in magnetic reed switch sensors since 2001
all kinds of magnetic contacts for you to choose
Magnet contact alarm, anti-tamper alarm, low-battery indicator alarm and emergency alarm
Specification ----------------
Model: 5C-618
Output: NC type
ABS case, white color
Operation gap: 3-15 mm
for wooden door or window
Emission Current: 13ma
Quiescent current ≤10ua
Emission Frequency: 315/433MHz (868/915 available on requested)
Wireless Transmitting Range: 120M open area
Working Environment temperature:-10℃~ +50℃
Wireless chip: EV1527(2262,1920 available on requested)
Alarm Output: alarm, low battery
Automatic status report
battery:Lithium battery CR-2450,
3V, 600mAH
Encoded mode:fixed code
5C-618 new and mini wireless magnetic door contact,it has the functions of instantly detecting door or window open and close, tamper protection for shell and battery level real-time checking.
5C-618 can be also connected with our other sensors for your metal/wooden door or window. Detector needs to enroll its only address code to wireless host. Besides, it is a separate trigger detector, which means that it will send alarm signal to alarm host immediately to prevent the intrusion from door or window and automatic status report enhance its protection.
Installation--------------------

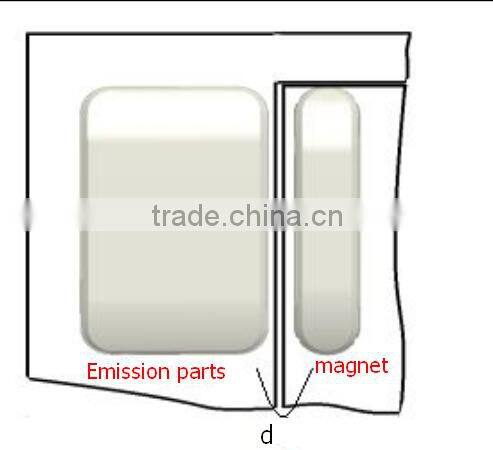

After installed batteries, surface mount switch at top or side (NOT on hinge side) of door or hinged window frame. On double hung window, surface mount the switch at top, side or bottom of window frame. Surface mount the magnet parallel to the switch, the spacing of these two components as close as possible.Distance:3mm≤d≤15mm. (Magnetic components is best to use screws. Screw holes in the rear panel, the required hard sharp object poke open)
After installing the best antenna all the way out, and then open the windows and doors are monitored, the Magnetic Red "work instructions" light, while the host and the handset will sound an alarm and instructions, such as the red light does not shine on the door sensor or host and the handset does not alarm check green "low voltage directive" lamp is lit, such as light, replace the battery, or contact your supplier. NOT intended for Steel doors or steel windows.

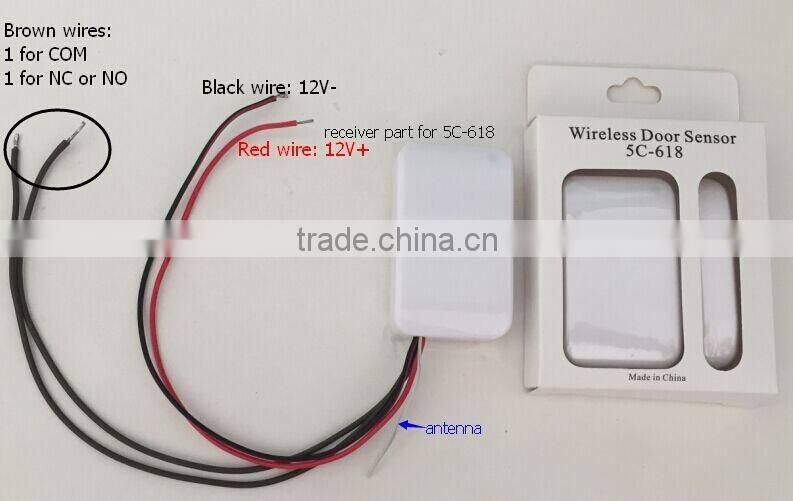

Receiver part is available. If you need it, please tell us.
