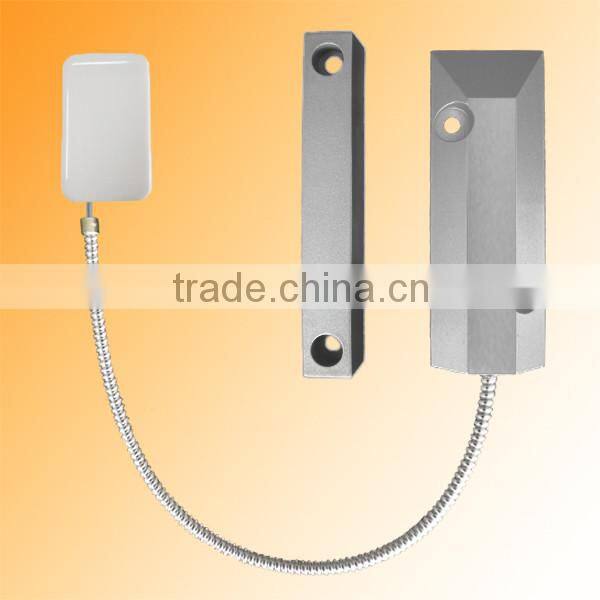

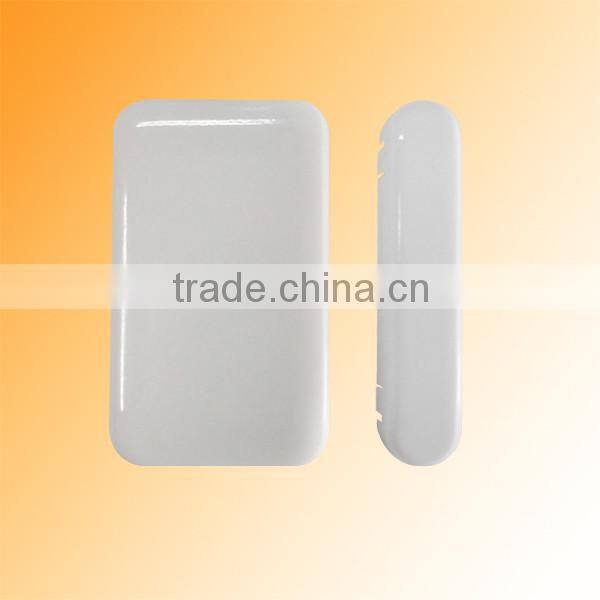

Help CenterE-5C 433MHz Wireless Door Contacts/magnetic Switch/roller Door Sensor 5C-55W
Related Products
-
5C-618 New Mini Wireless Magnetic Contacts/wireless Window ContactsUS$ 1 - 5MOQ: 200 Pieces -
5C-52W New Wireless Magnetic Contacts for Steel Door or WindowUS$ 1 - 5MOQ: 200 Pieces
-
5C-59W New Wireless Magnetic Contacts for Metal DoorUS$ 1 - 5MOQ: 200 Pieces
-
5C-52B Magnetic Contacts for Metal DoorUS$ 2 - 3MOQ: 10 Pieces
-
5C-44B 2 Wire NC Type Surface Mounted Door Magnetic ContactUS$ 0.35 - 0.8MOQ: 1000 Pieces
1.0 Function
l Reed switch alarm signal
l Periodic real-time working signal
l Tamper alarm signal
l Low battery alarm signal
l 1 external connection signal port
Receiver part is available. If you need it, please tell us.
2.0 Data sheet
l ABS PA-757 case, white/black
l Emission Current: 13ma
l Quiescent current ≤10ua
l Emission Frequency: 315/433MHz (868/915 available)
l Transmission distance: 120M open area
l Working temperature:-10℃~ +50℃
l Wireless chip: EV1527(2262,1920 available)
l battery:Lithium battery CR-2450,
l 3V, 600mAH
l Encoded mode:fixed code

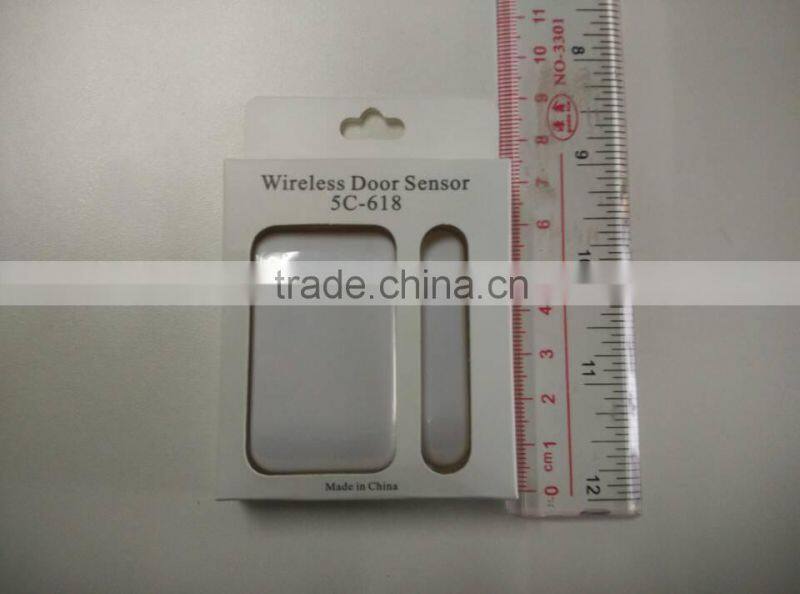

l Dimension:R(50*30*15 mm) M(50*10*10mm)
l N.W.:32g
3.0 Installation
After installed batteries, surface mount switch at top or side (NOT on hinge side) of door or hinged window frame.
On double hung window, surface mount the switch at top, side or bottom of window frame. Surface mount the magnet
parallel to the switch, the spacing of these two components as close as possible.Distance:3mm≤d≤15mm.
(Magnetic components is best to use screws. Screw holes in the rear panel, the required hard sharp object poke open)
After installing the best antenna all the way out, and then open the windows and doors are monitored,
the Magnetic Red "work instructions" light, while the host and the handset will sound an alarm and instructions,
such as the red light does not shine on the door sensor or host and the handset does not alarm check green "low voltage
directive" lamp is lit, such as light, replace the battery, or contact your supplier. NOT intended for Steel doors or steel windows.
