5C-52B Magnetic Contacts for Metal Door

5C-52B Magnetic Contacts for Metal Door photo-1
US$ 2 - 3 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
E-5continents
Model Number:
5C-52B
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name E-5continents
Model Number 5C-52B
Usage Door

                     E-5continents  Co., Ltd
we specialized in security accessories since 2001:

E-5C New patented magnetic door sensor for metal equipment cabinet door normally close normally open

 contact name : Sylvia      skype : sales2-e5continents

                  Parameters
Design Patent NO.: 201230366961.6
Ideal for communication cabinets equipment cabinets,
Metal housing (alloy  aluminum), light and easy to install
Output:      NC | NO| COM

Gap:           30-40mm
Leads:       1007UL 22AWG350mm
Encapsulation:    Epoxy Glue

Core :         reed switch
Color:         grey

Magnet:     NdFeB

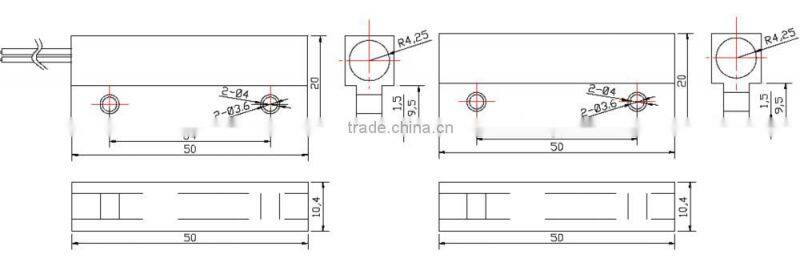

                         Drawing

5C-52B magnetic contacts for metal door

Order information:

Specification Output Casing Material Action Gap(mm) Max CUr./Vol./Power/Init.Ress(A/VDC/W/mΩ) MOQ
NC-AL-3040 NC Alloy-aluminum 30-40 0.5A/100V/10W/200mΩ 0
NC-AL-3040 NO Alloy-aluminum 30-40 0.2A/30V/3W/200mΩ 500

More:

       5C-36                         5C-35                         5C-52                      5C-38

       5C-44B                       5C-58                     5C-55ZL                   5C-1827
5C-52B magnetic contacts for metal door
5C-52B magnetic contacts for metal door   5C-52B magnetic contacts for metal door

   Shenzhen E-5continents Co., Ltd. was established in 2001,an ISO9001 enterprise, which is specializing in designing and manufacturing Reed Switch Sensors( door sensor, magnetic sensor, metal proximity switches,etc.) and other security accessories(panic buttons, sirens, strobes & other detectors,etc.) Most of the products are approved with ROHS, CE & FCC certification.There are nearly 100 moulds with 300 models for customers' choice. More than 30,000,000 pieces of reed switch products are widely used all over the world.

5C-52B magnetic contacts for metal door

                 Craftsmanship

5C-52B magnetic contacts for metal door



5C-52B magnetic contacts for metal door
