Home > Instruments & Meters > Meter for Electricity > Current Meter > Voltage Calibrator

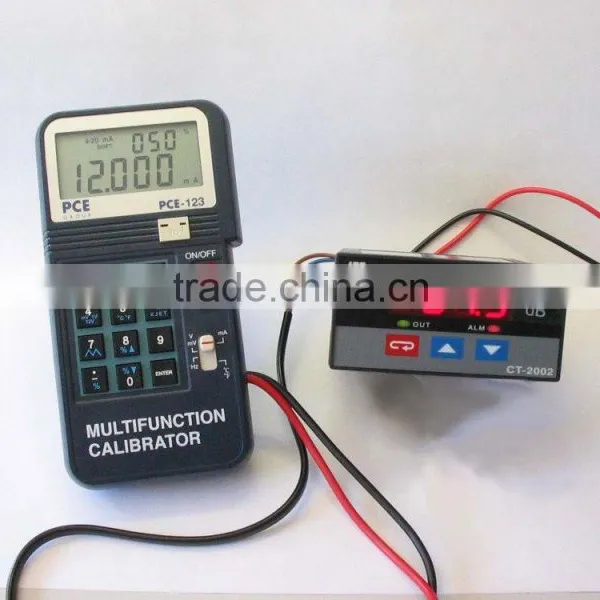

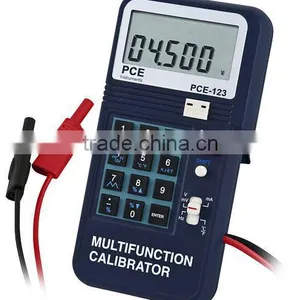

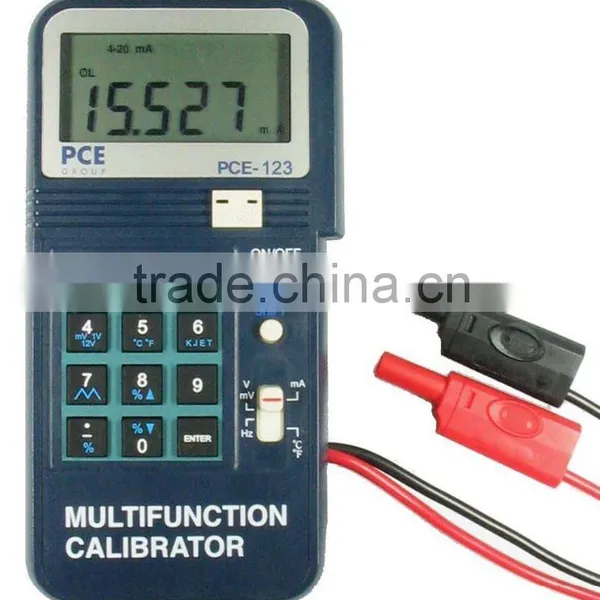

Voltage Calibrator

Name: Voltage Calibrator
Brand: PCE Inst.
SKU: 104811267
Availability: InStock

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

PCE Inst.

Model Number:

PCE-123

Measuring Range:

1 to 125Hz and 126 to 62.5kHz

Contact Supplier Request Quote Chat Now

PCE Deutschland GmbH

Payment & Shipping

Payment Methods:

Port of Shipment:

Hamburg

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name PCE Inst.

Model Number PCE-123

Measuring Range 1 to 125Hz and 126 to 62.5kHz

Supply Voltage 1 9V battery or 6 x 1.5V batteries

Operating Temperature 0 to 50°C

Dimensions 88 x 168 x 26mm

Product Description

- 4 to 20mA (1kΩ, 24V power)
- 0 to 100.00 mV / 0 to 1,0000V / 0 to 12,000V
- type-K, J, E, T temperature sensors (°C or °F)
- Frequency range 1 to 62,500Hz
- Accuracy of 0.025%
- Operated via keypad
- Graduated automatic functions
- Selectable between 0 to 20mA/ 0 to 24mA
- Input 0 to 100% (mA, mV, V )
- Alarm beep 'open' (mA) or 'short circuit' (mV, V)

Technical Specifications
mA DC current (maximum load at 1kΩ, powered by 24V)
Range	4 to 20mA / 0 to 20mA / 0 to 24mA
Resolution	1µA
Accuracy	±0.025% ±3µA
Alert	beeps when there is a short circuit or ouput current >1mA .
mV current, V DC (power 1mA)
Ranges	0 to 100.00 mV 0 to 10.000 V 0 to 1.0000 V
Resolution	10 µV 1 mV 1.0000 V
Accuracy	± 0.05% ±30 µV ± 0.05% ±3 mV ± 0.05% ±300 µV
Alert	beeps when there is a short circuit or ouput current >10mV.
Temperature sensor type-K, J, E, T (1 kΩ min.)
Ranges	K: -200 to 0°C and 0 to 1370°C J: -100 to 0°C and 0 to 760°C E: -10to 0°C and 0 to 700°C T: -200 to 0°C and T: 0 to 400°C
Resolution	1°C (across entire range)
Accuracy	K: ±1.1°C and ±0.8°C J: ±0.9°C and ±0.7°C E: ±0.9°C and ±0.7°C T: ±1.0°C and ±0.8°C
Frequency
Range	1 to 125Hz and 126 to 62.5kHz
Resolution	1 to 125Hz / 1Hz 126 to 62.5kHz / 604 readings
Accuracy	±0.04Hz
Selection	604 frequencies
General characteristics
Display	5 position LCD
Operating conditions	0 to 50°C; <85% r.h.
Storage conditions	-20 to 60°C; <85% r.h.
Power	1 9V battery or 6 x 1.5V batteries
Consumption	60mA to 180mA (depending on output)
Battery indicator	5.5V for 150mA
