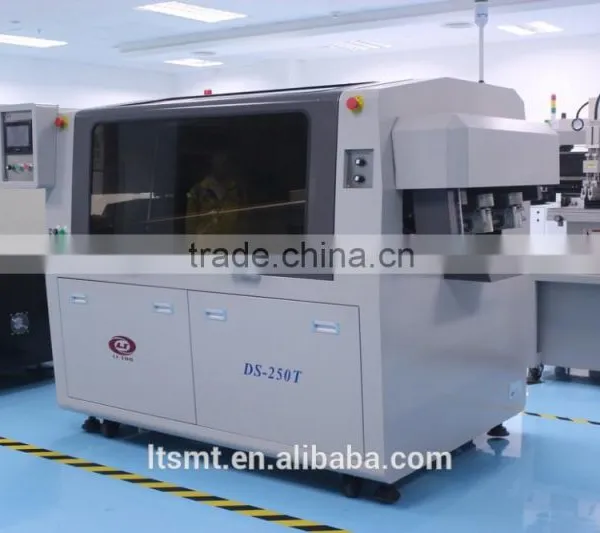

LT - DS250T Mini type energy saving hot air wave soldering machine (touch screen)
The core technology of energy saving: save electricity 40% (standard)
The compressed air to save 60% , flux save 20% consumption (optional)
The main function of configuration:
1: 7 Inch Touch Screen industrial control + PLC and intelligent temperature control system;
2: 180KG small capacity lead-free solder;
3: SMC rodless cylinder spray control device (optional step drive);
4: Manual width adjusting device;
5: Tin manual import device;
6: Forced two hot air heating system of 0.8M
7: Ductile cast iron heating plate (Rio patent, saving 40%);
8: The wind cooling device;
9: Automatic feeding device;
The main technical parameters:
1, Size: 2300 x 1250 x 1550 (MM)
2 , weight: 580KG
3 , PCB transmission: 750 + 20 mm height
4 , Transport speed: 0-2000mm
5, L - R transmission direction (left to right)
6, PCB width: 50-250mm
7, Transmission power: 220V 60W motor
8, Spray transmission: SMC rodless cylinder
9, The length of 0.8M: preheating zone
10, Preheating: forced air heating
11, Preheating zone two hot air preheating zone
12 , Preheating power: 7KW preheating
13, Preheat temperature: room temperature -250 degrees
14 ,Temperature control mode: PID+SSR
15, Tin groove material: 316L
17 , Solde capacity: 180KG
16,Power: three-phase five wire 380 V 60A 50/60HZ
17 , Total power: 17KW
18,Normal power consumption: 4KW
The company has set up the equipment exhibition hall in Shenzhen,
welcome the foreign friends to come to visit.
Our service:
1. Quick response within 24 hours.
2. On time delivery.
3. Techinical support before and after sales.
Contact us:
Shirley Xie(Sales Supervisor)
**************************************************************************
SHENZHEN LITUO CHUANG NENG ELECTRONIC EQUIPMENT CO., LTD
Shirley Mobile( Whatsapp): 86 13632687345
Assistant General QQ: 2823023317 wetchat: xst827514933
Tel:0755-27231258-8005 Fax:0755-27231256
Adress:Building 21~22, Ma'anshan second industrial zone, Shajing Street, Ban'an district, Shenzhen
