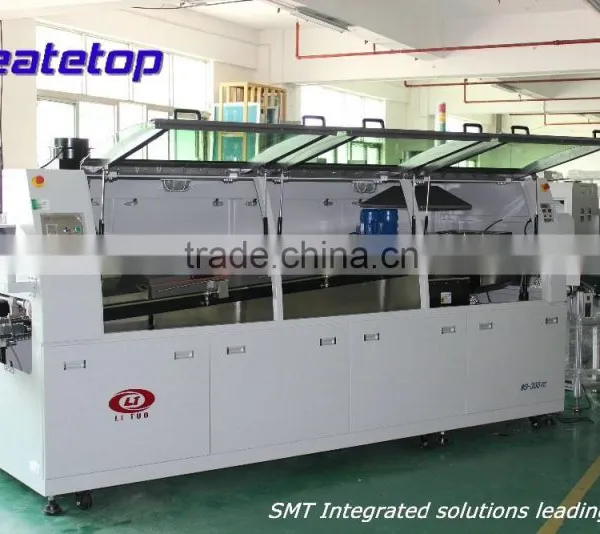

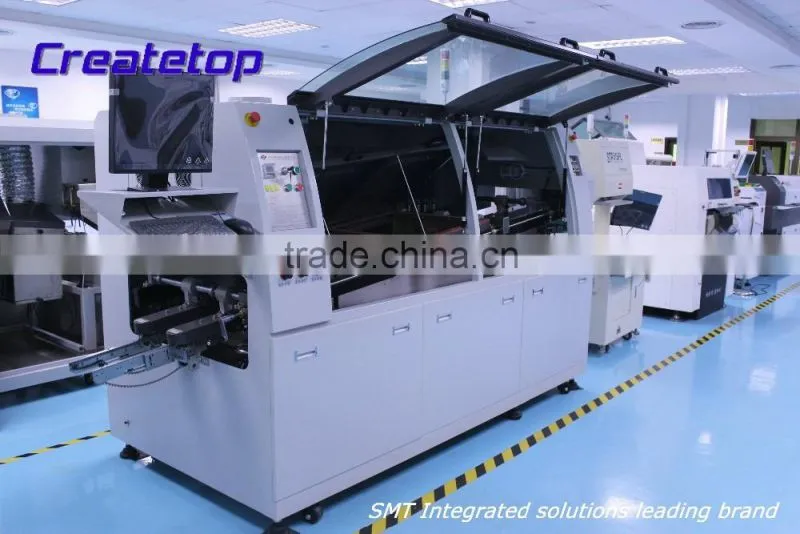

Help CenterWS Series of Large-sized Lead-free Wave Soldering Machine/ Large Tin Stove
Related Products
-
Computer Lead-free Dual Wave Soldering Machine(Medium Wave)US$ 1.00 - 1.00MOQ: 1 Set -
Lead Free Wave Soldering Machine DW300B/T/PCUS$ 16000.00 - 20000.00MOQ: 1 Set
-
Mini Type Energy Saving Hot Air Wave Soldering Machine (touch Screen)US$ 1.00 - 1.00MOQ: 1 Set
-
Mini Wave Soldering Machine DS250B/T/PCUS$ 1.00 - 13000.00MOQ: 1 Set
-
MiNi Lead Free Wave Soldering MachineUS$ 1.00 - 13000.00MOQ: 1 Set

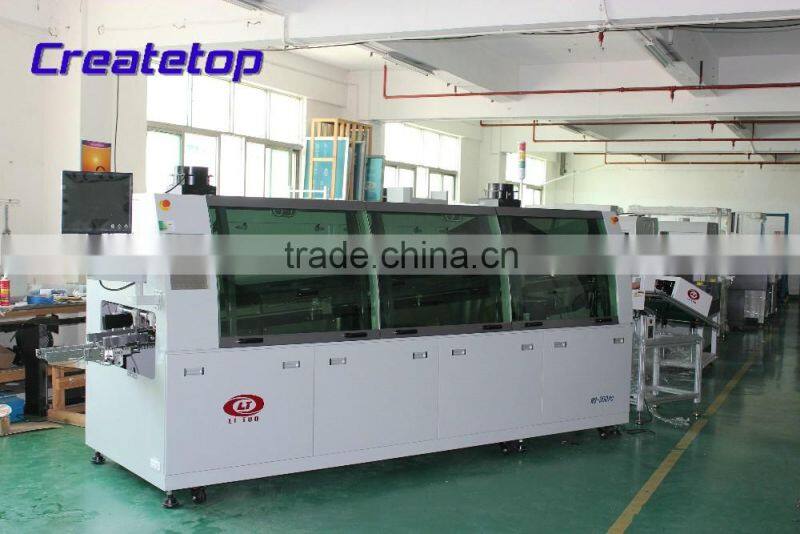

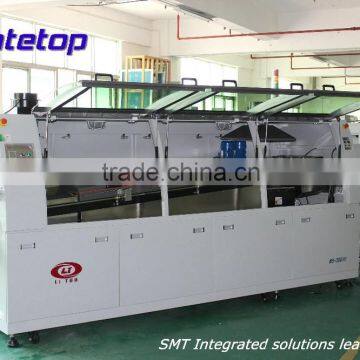

Applicable to all types of plug-in welding, production capacity can reach 2.4m/min, is an ideal model for large capacity.

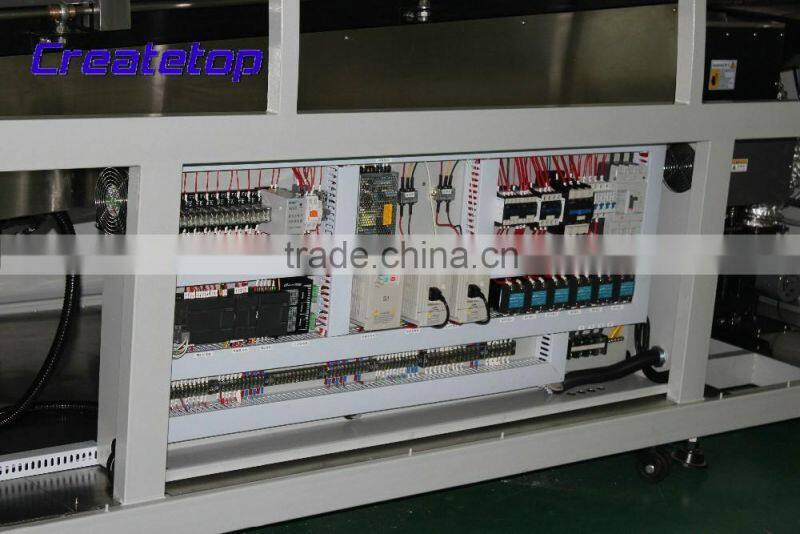

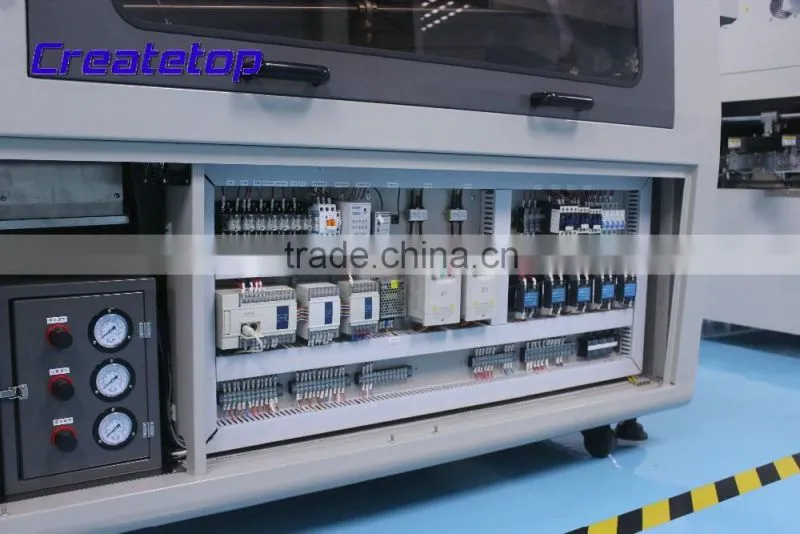

Control system: Siemens Lenovo LCD computer + PLC + SSR control, man-machine dialogue, with temperature curve, parameter setting, production operations, production counting etc. functions, intelligent welding can be achieved from the computer to run, to replace the industrial computer control system.
Inverter control tin furnace height, can be adjusted from 0 -15 mm,
Meet the requirements of different products welding (Non-long pin PCB)

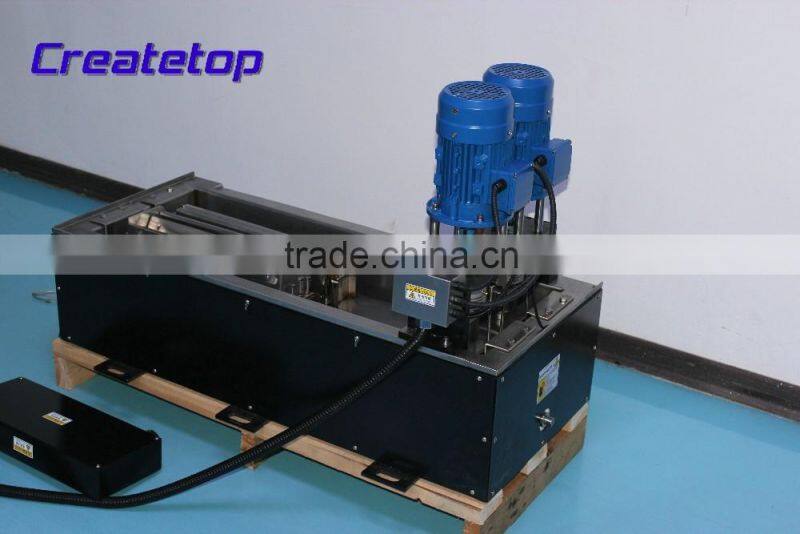

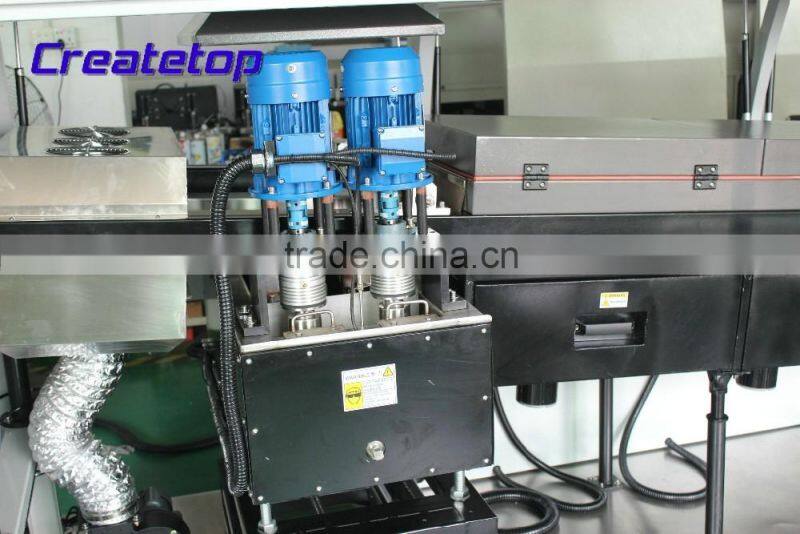

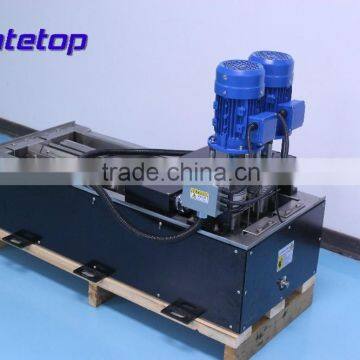

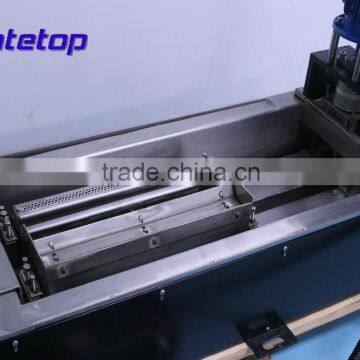

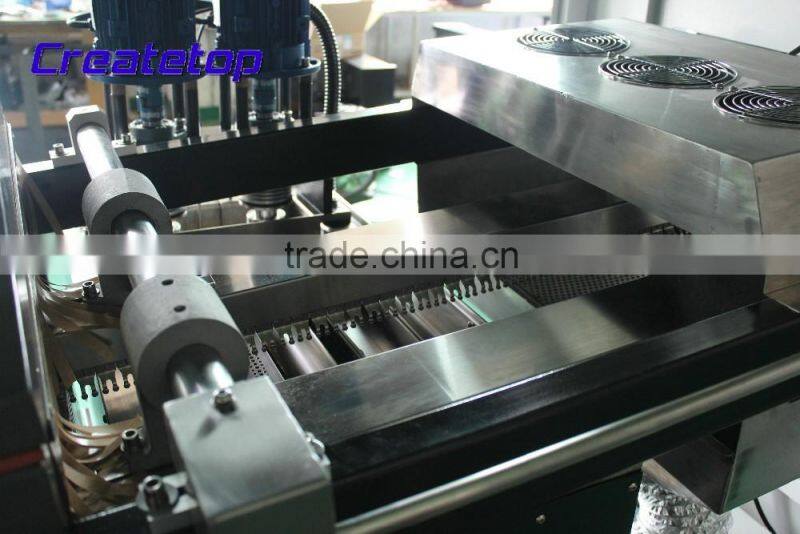

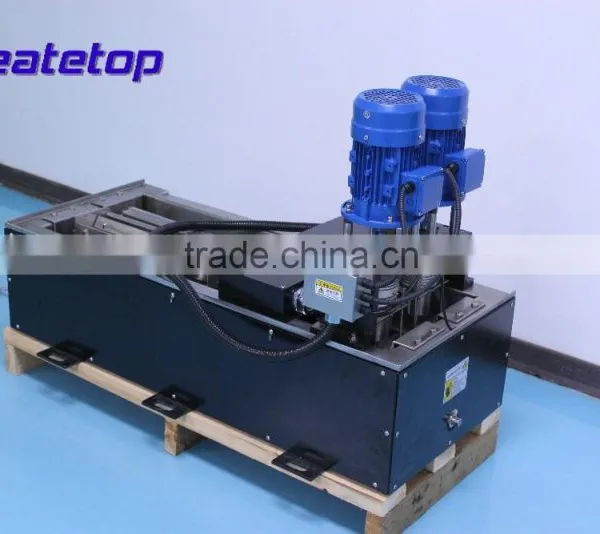

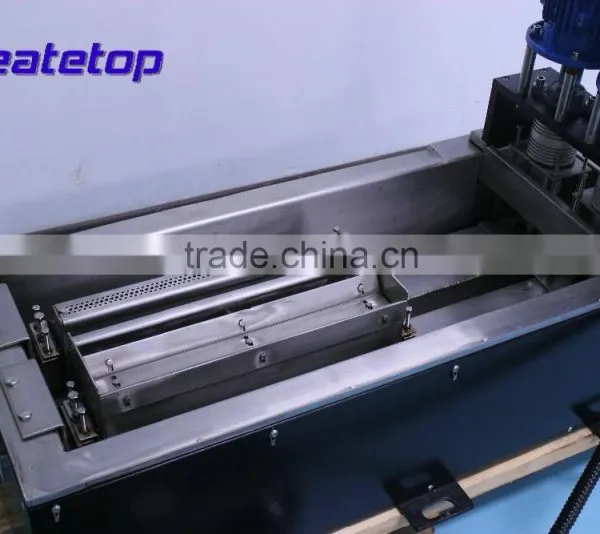

Tin stove system: lead-free furnace, long service life, high stability. Using patented nozzle design, oxidation ≤2kg(8h), unique tin slag collection design, convenient maintenance, tin furnace temperature control accuracy ±1℃. Wave crest controled by the stepless frequency conversion speed regulation, more stablely,
adopting maintenance-free design, heating furnace with double temperature protection, to prevent the loss caused by high temperature stove;

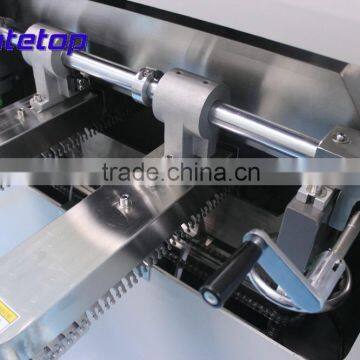

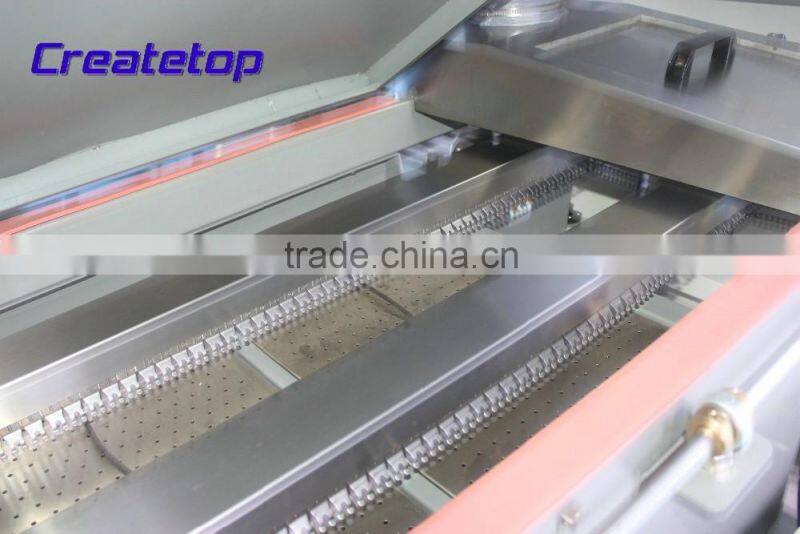

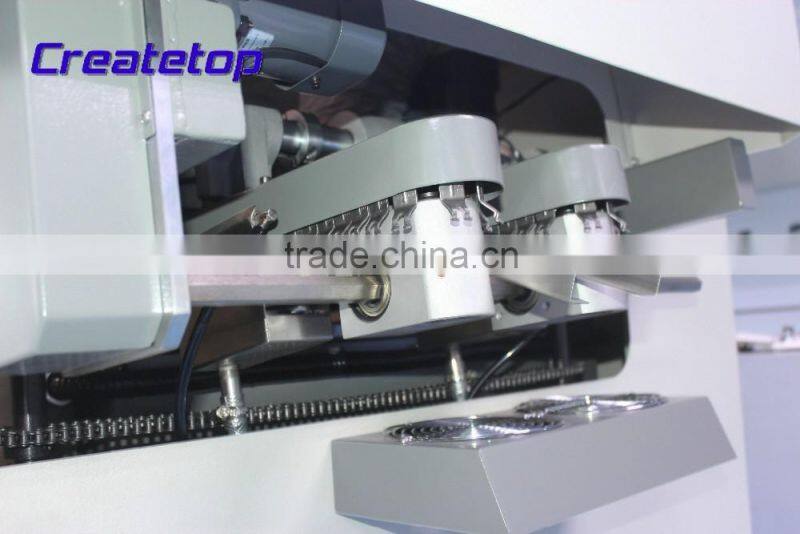

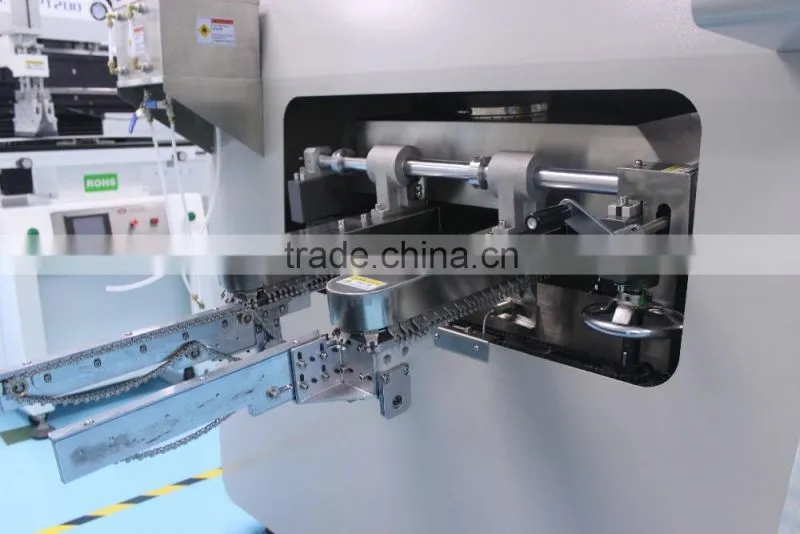

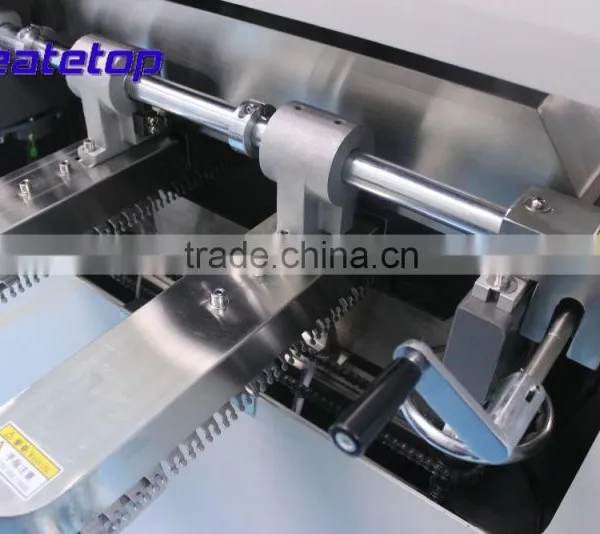

Transportation System: guide rail width adjusted by four-point worm and gear structure, stable and accurate. synchronous into the plate connection, The guide rail uses the special craft design, it is not easy to deform; the LITUO patent titanium alloy transport claw, strengthens the wear-resisting stainless steel to prevent the deformation device;
Tin stove adjustment:
Precision worm and gear adjustment, optional automatic furnace regulation system;

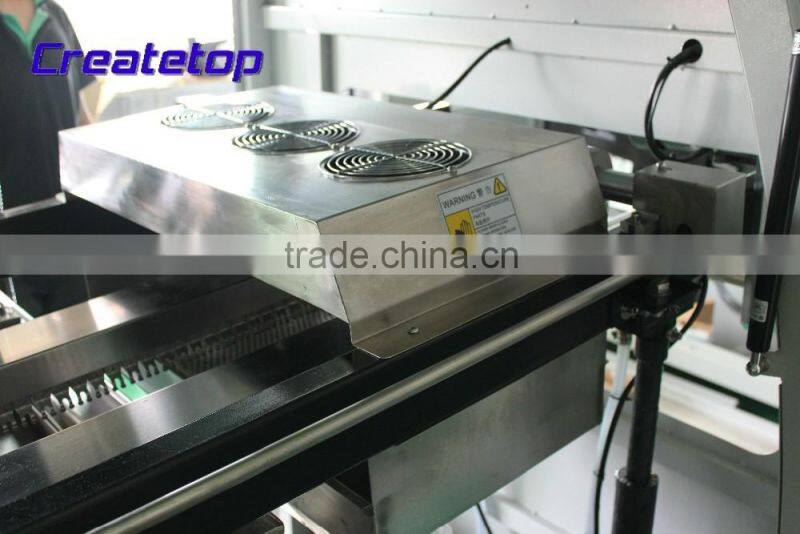

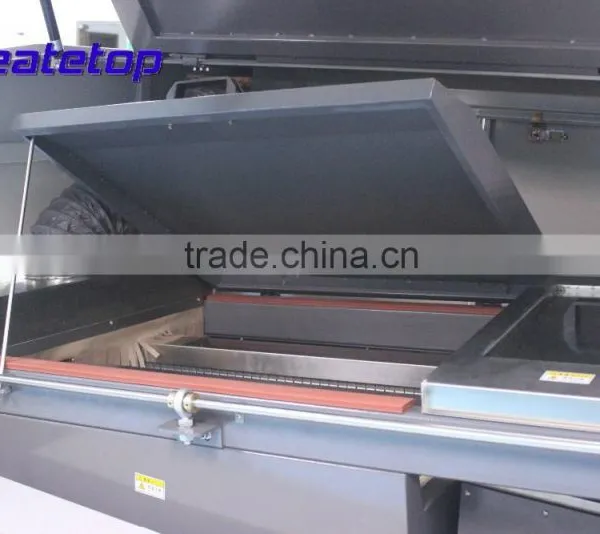

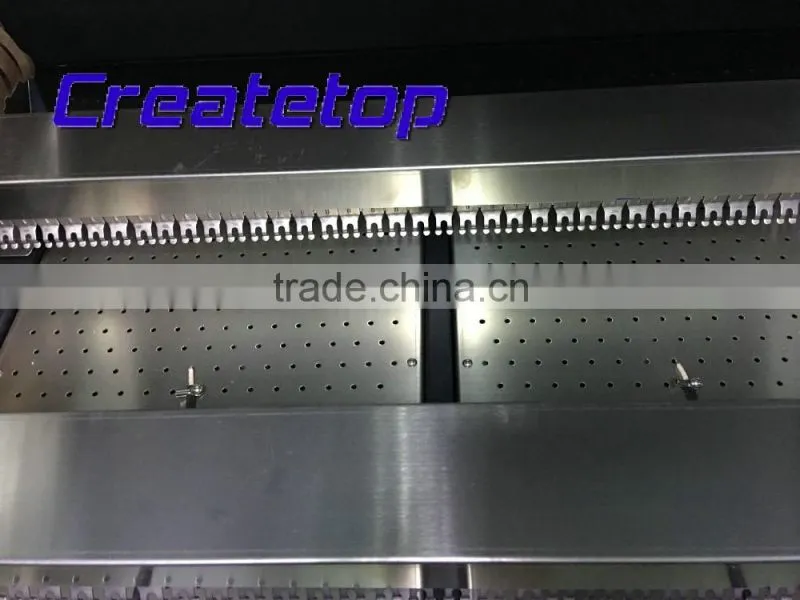

Preheating system: the LT patent heated air circulation preheating structure; modular design, precise temperature control, it can meet with single or multi plate and the fixture of lead-free process, reduces the thermal shock, drawer type design, maintenance more convenient;

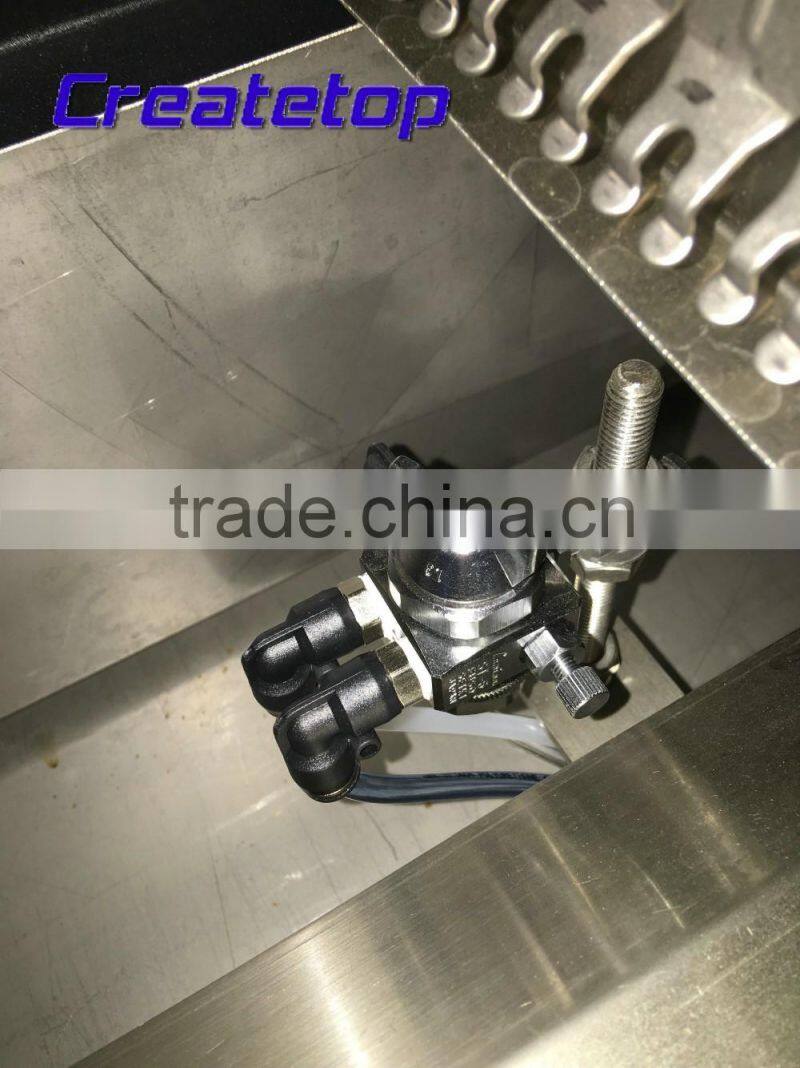

Spray System: Japan ST-6 nozzle, Japan SMC rod cylinder drive and SMC trachea durable.
Using SMC cylinder control, automatic adjustment of spray speed according to the PCB width and transport speed , the use of imported high precision nozzles, to ensure the uniformity of the spray. Flux recovery system to ensure environmental health(Optional);
Cooling system: air cooling, Double-stage cooling design, extended range of cooling, the cooling rate can be up to 4-6 cm/s;
Expansion function: it can be configured to test the function of the three channel curve,
PC-N type: electric adjustable width function and automatic recharge flux, nitrogen protection welding reservation system (optional)
