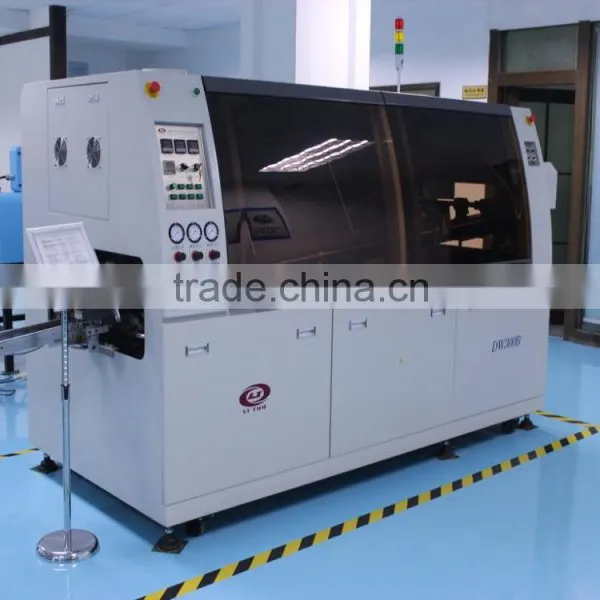

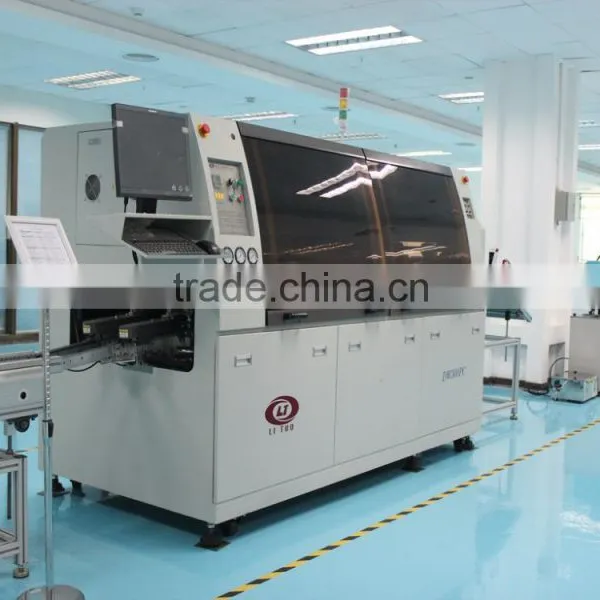

Double In-line Package Lead Free Wave Soldering Machine

  Medium reflow soldering is cheaper and more energy efficient than large scale, and is more efficient than small capacity. ( The furnace capacity: 280KG)

The main function of the configuration :

1:Lenovo LCD computer + Siemens PLC system.

2:The latest version of LT energy saving control program system .

3: A highly corrosion and resistant high life, equipped with special solder furnace.

4:280KG small-capacity free solder furnace.

5:SMC rodless cylinder control spray

6:Manually adjust the width of the device

7: Tin stove manual access device

8:1.2M (two groups) like drawer Hot-air heating systems

9:Ductile cast iron heating plate (energy-saving 40%)

10:Strong wind cooling device

11:Automatic feed plate means

12:Tin stove over-temperature protection

13:Preheating transport wind motor (Panasonic)

14: Furnace motor (Italy B & M)

15:Transport motor: Taiwan Leeming

16:Peak frequency regulation: Delta converter

17: Transmission speed control: Panasonic DV1234 stepless adjustment

18:Wave soldering interface board 220v

Lenovo LCD computer + Siemens PLC system.

Strong wind cooling device

Manually adjust the width of the device
Automatic feed plate means

Can match  Wave Soldering PCB front Conveyor

The main technical parameters:

1. Dimensions: 3320 × 1350 × 1700 (MM)

2. Weight: 950KG

3. PCB transport height: 750 ± 20 mm

4. Transport speed: 0-2000mm

5. Transfer direction: L - R (from left to right)

6. PCB Width: 50-300mm

7. Transmission motor power: 220V 60W

8. Spray Transmission: SMC rodless cylinder

9. Preheat Zone Length: 1.2M

10. Preheat mode: Hot-air heating

11. Number of preheating zone: Two Drawer

12. Preheat the total power: 10KW

13. Preheat temperature control: room temperature -250 degrees

14. Temperature control mode: PID + SSR

15. tin bath Material: 3 mm 304L

17. The furnace capacity: 280KG

18. Pot temperature: room temperature -350 degrees

19. A furnace heater plate power: 1.0KW × 10

20. Tin furnace heating time: 120min

21. Wave Height adjustment: The Promise inverter control

22. Cooling: forced air (multi axial fan cooling)

23. Power supply: three-phase five-wire 380 V 100A 50 / 60HZ

24. Total power: 20KW

25. Actual power consumption: 5KW

Touch screen type

Button control type
