If you have trouble with the strip in SMT workshop which is not easy to collect . If you are worried about the machine and accessories damage because of the strip still did not cut , and at the scene of the production of clean, lost customer orders? These worries., perhaps because worry "strip" takes us a lot of trouble, LT introduce automatic intelligent strip cutting machine, which do not need manual management and placement machine cleaning waste belt for you.

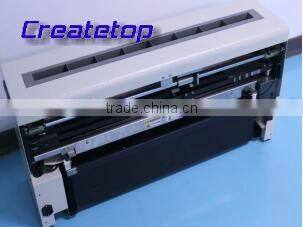

CM series SMT intelligent strip cutting machine is used for patch material recycling.There is no built-in recovery function of the placement machine as usual.Recycling waste material is done with garbage can, personnel use the scissors to cut off the hand. And SMT strip cutting machine is completely replace manual cutting strip with rule collection. Without dedicated facilities placed waste of material, it can do the same work efficiently.
The machine features:
1. Microcomputer intelligent control blanking time delay, and two kinds of patterns :time delay shear belt and sensor model (with board pasted on shear band);
2. Without gas supply, the use of gear motor, high torque, compared to conventional pneumatic cutting tape machine, because the pneumatic high frequency, the high consumption of compressed air, high cutting material cost, high consumption devices in addition to the cost of the blade, not easy to control the produce cost .

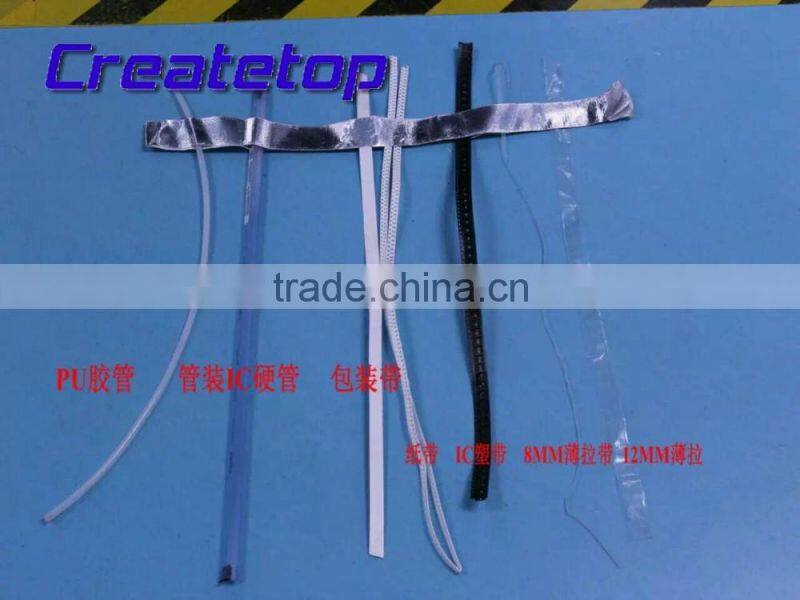

3. New cutting machine is suitable for the SMT various material, from 0.04 mm film to 1.5 mm thick belt can be easily cut;
4. Stable performance: imported hard tooth shape HSS cutting tools, similar to the principle of scissors, cut off all kinds of material, stable and durable, effective shearing width is 680 mm;
5. Machine appearance size: (L)900mmX(W)260mmX(H)430mm, cover an area of an area small, usage and storage are very convenient;(this dimension is customized according to customer's placement machine feida head width of);
6. Flexible: only 26 kg weight, equipped with four straight to the caster, convenient transportation.
7. Antistatic type material box + stainless steel stent borders;(advantages: good appearance, light weight, strong and durable), and is equipped with safety sensors.The material box installation of safety sensing device status alarms,no material box without shear zone
8. Precision CNC machining cut foot drive system + double linear guide
9. Adopt CNC sheet metal process + high adhesion plastic spraying processing, durable, premium.

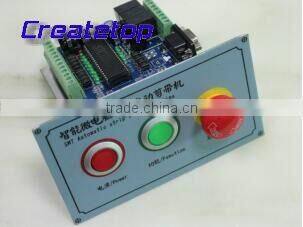

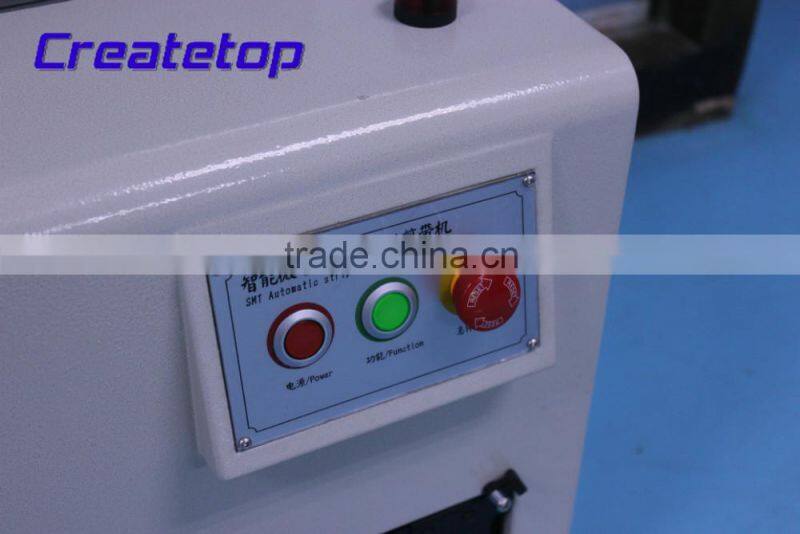

Intelligent microcomputer control, multiple cutting and protection mode

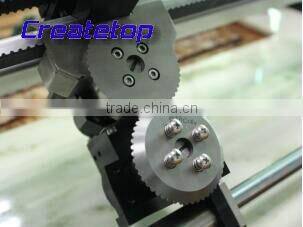

The import tool and synchronous cutting technology patent

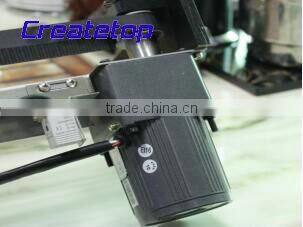

Precision gear motor, high torque cutting ability
The material box configuration around double sensor,auto-sensing cut material

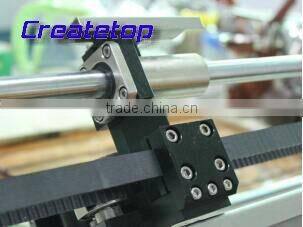

Imported precision guide rod and a sliding sleeve system,durable
After upgrading the strip of artificial discard window (humanization design)
CM680A upgrade function: (Third generation intelligent cutting machine)
New functions: the material box increase to about two sensors
Add buzzer alarm
Bejammed overtime alarm and motor protection (20s)

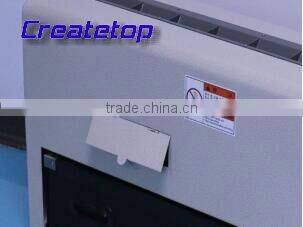

Increase recycling manual door (other waste input port)
Improved import tool, increase soft belt cutting ability
Main technical parameters:
Temperature and humidity: 10 ± 40° 20%-90%RH relative temperature
Strip material: 8M tape / 8-44M plastic belt
/ Ethylene soft band (optional cutting)
Cutting cycle: 9 seconds (Not contain delay pause)
Effective cutting width: 680MM (can be customized according to the customer mounter)
Dimensions: (L) 900X (W) 260X (H) 430mm
Weight: 26KG
Access voltage: 220V (110V optional order)
Power: 0.05KW
Main wearing parts:(Normal maintenance state)
up the main knife ( high-speed steel (imported)) consumption cycle: 1-2 years
down the vice knife (high speed steel (imported) consumption cycle: 1-2 years
Belt loss cycle: 1-2 years

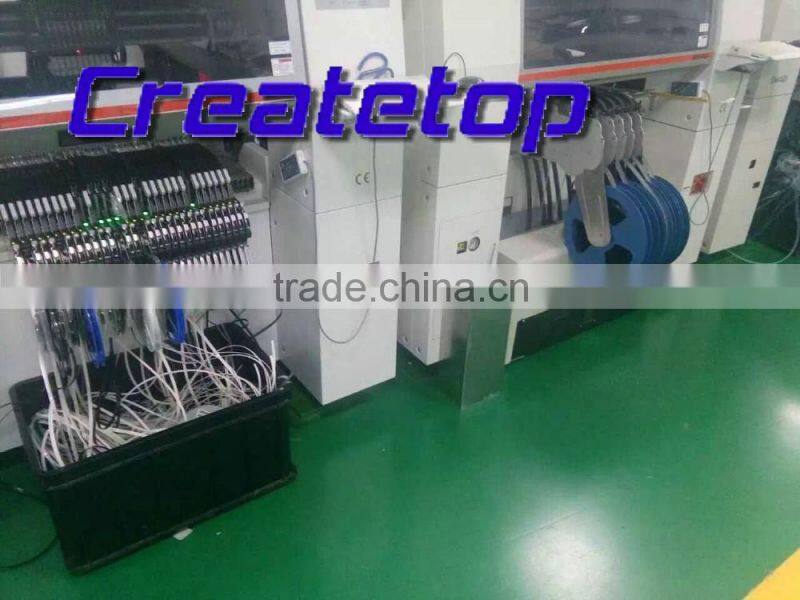

Improve before and after comparison: (SMT workshop good management, from the CM series intelligent strip cutting machine started!)
Import business case: core competitiveness of enterprises - implement intelligent SMT workshop good Management

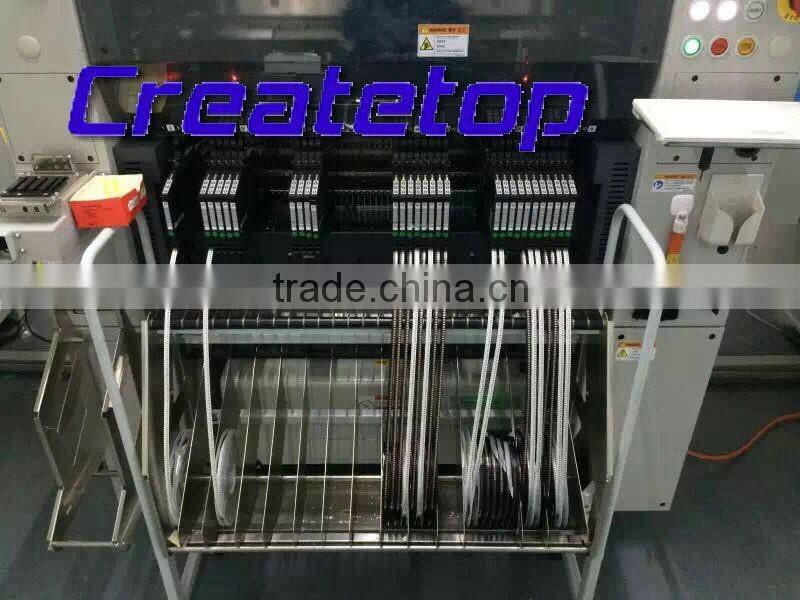

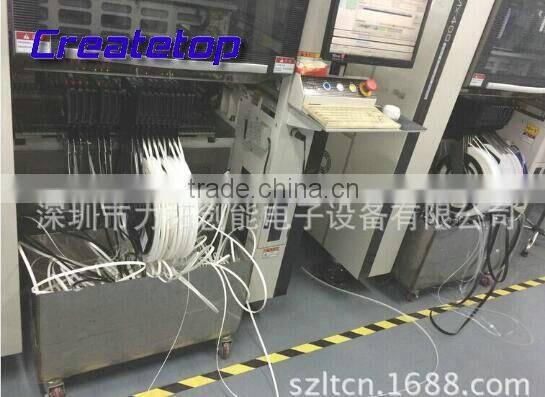

Before After
Suitable for all SMT supporting shape (can be customized according to the actual installation conditions)
The company has set up the equipment exhibition hall in Shenzhen,
welcome the foreign friends to come to visit.
