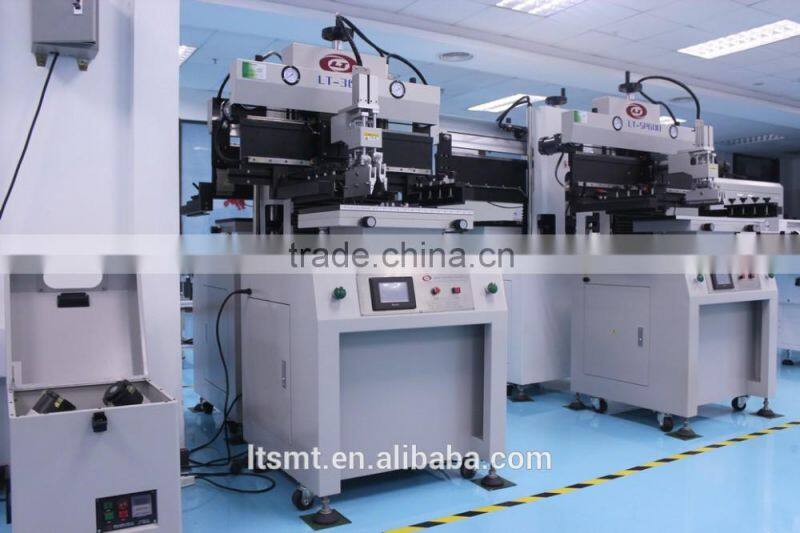

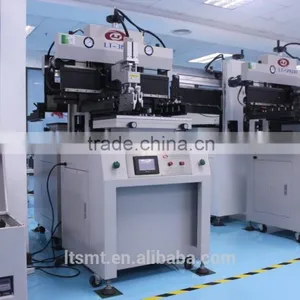

Help CenterSMT Stencil Printer/ PCB Screen Printing Machine LT-3088
Related Products
-
The Full Automatic Solder Paste Printing Machine GP-430AUS$ 40000.00 - 50000.00MOQ: 1 Set -
SMT Chip Mounter/smt Placement Machine/led Pick&place MachineUS$ 45000.00 - 55000.00MOQ: 1 Set
-
Samsung SMT Machine Spare Parts,CCD,Camera,Smt Valve,Samsung FeederUS$ 1.00 - 1.00MOQ: 1 Set
-
SMT Parts CP40 CP45 CP63 SM310 SM321 SM411 SM421 NozzleUS$ 1.00 - 1.00MOQ: 1 Set
-
SMT Pick and Place Machine SAMSUNG FEEDER CP/SMUS$ 1.00 - 1.00MOQ: 1 Piece
Four: the main performance parameters of the product:

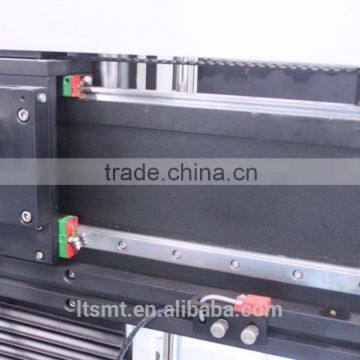

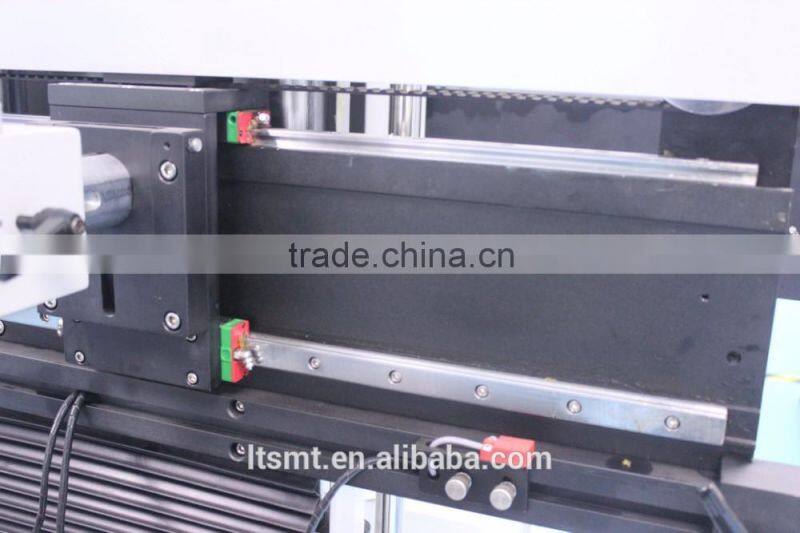

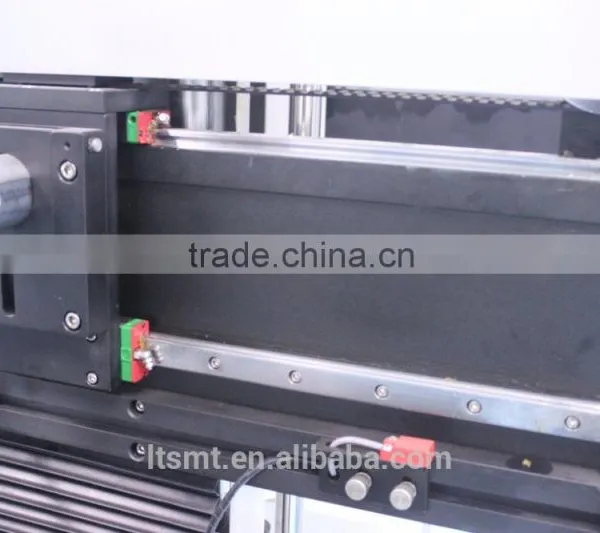

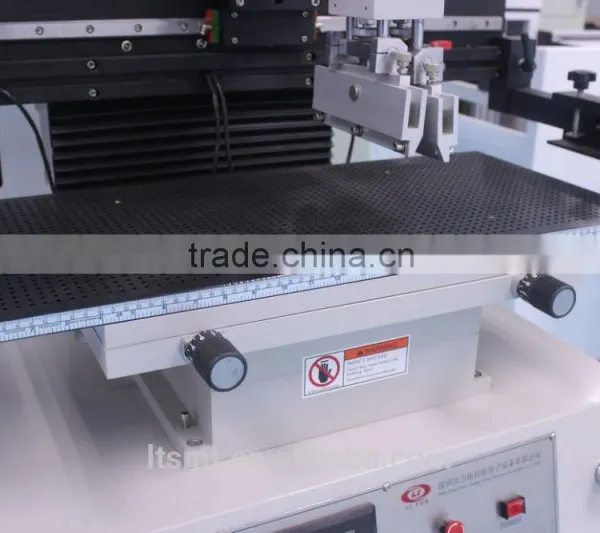

1: high precision printing platform and import guide:
2: intelligent man-machine interface and frequency control system:

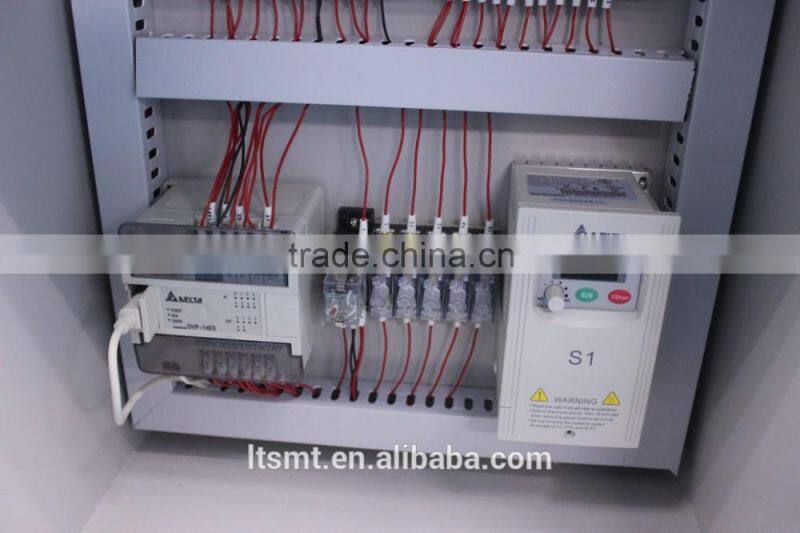

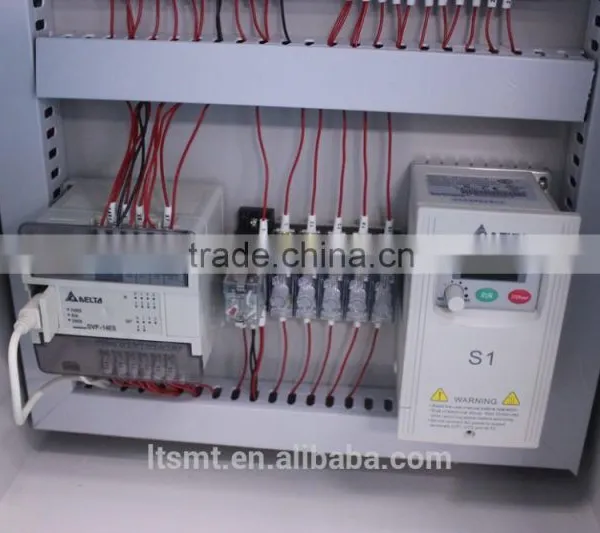

3: imported electric control and multi-level protection system:
4: imported pneumatic components:
Five: product main specifications:
1 digital control: (printing)
2: protection of electronic control (stability)
3 buffer stripping functions: (printing)
The 4 circuit gas separation: (safety / stability)
5 advanced control procedures: (man-machine dialogue, convenient operation)
6 steel pneumatic synchronous clamping: (optional) high precision printing recommended

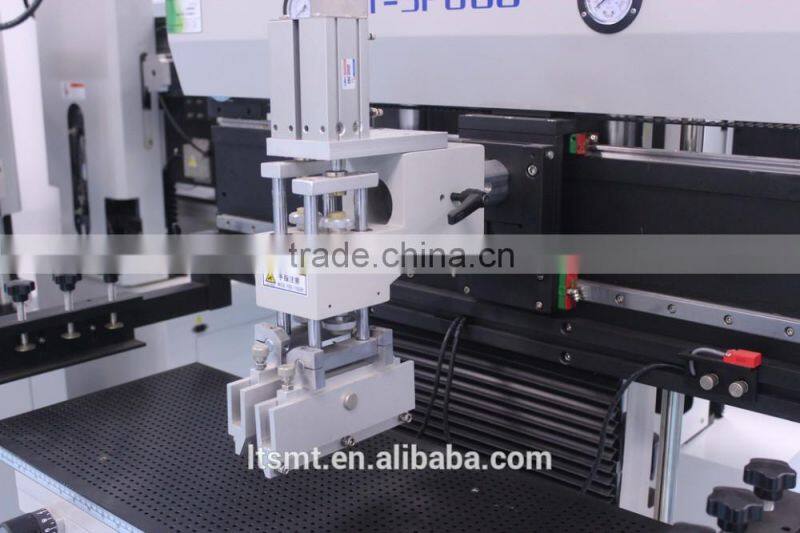

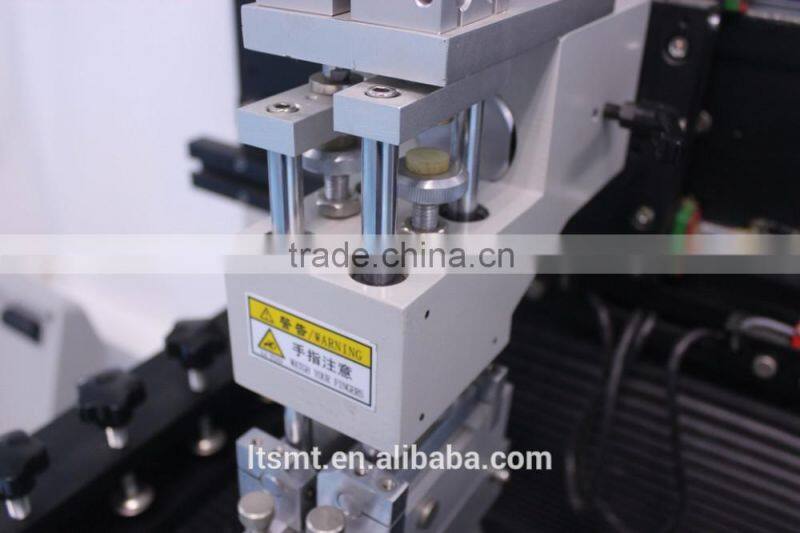

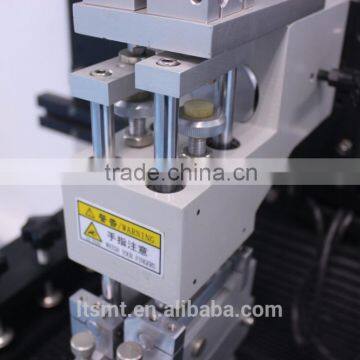

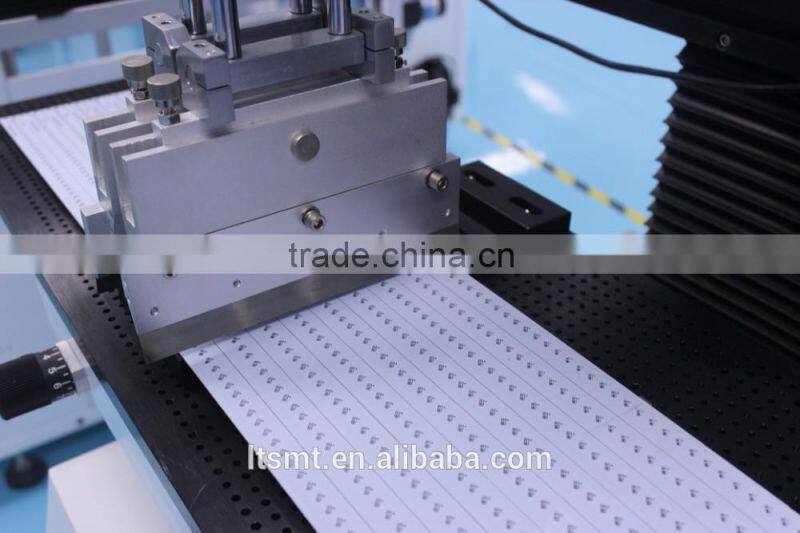

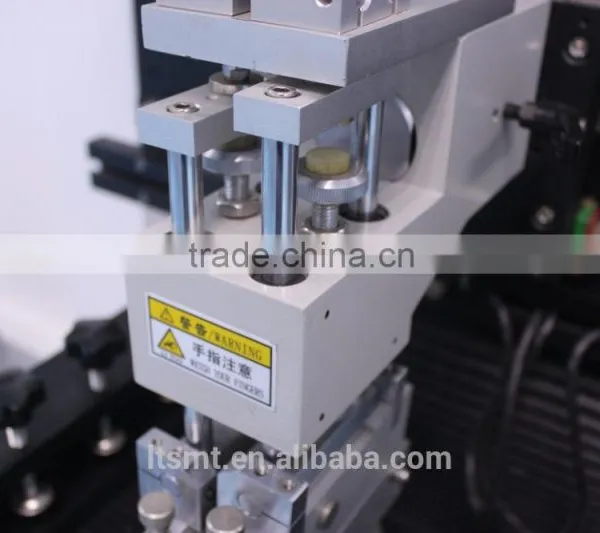

7 suspended buffer type scraper frame design: (advanced design)
8 scraper block tin functions and specifications scraper selection:

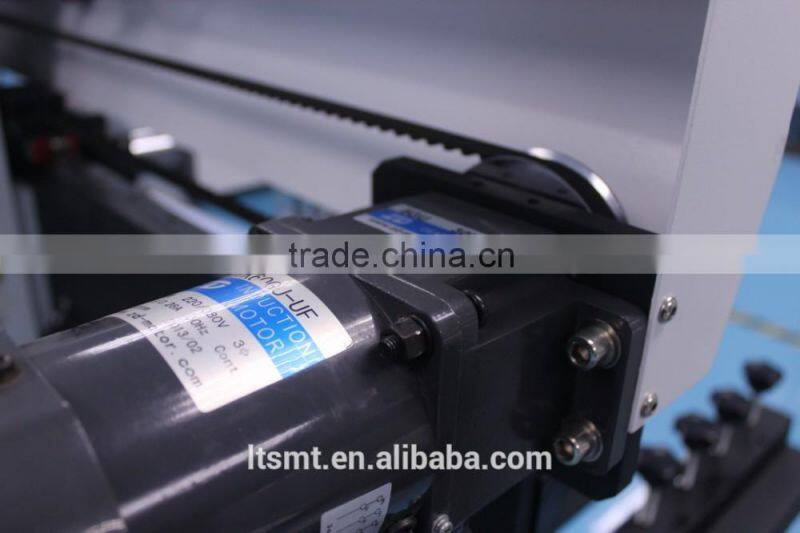

9 advanced synchronous belt adjusting mechanism: (convenient / steady printing speed high precision)
10 scraper frame removed: (safety / precision)

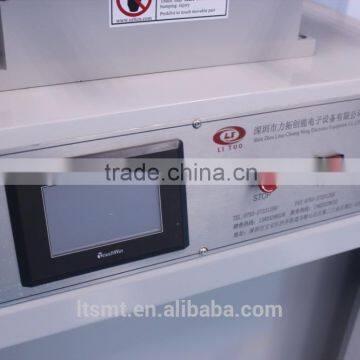

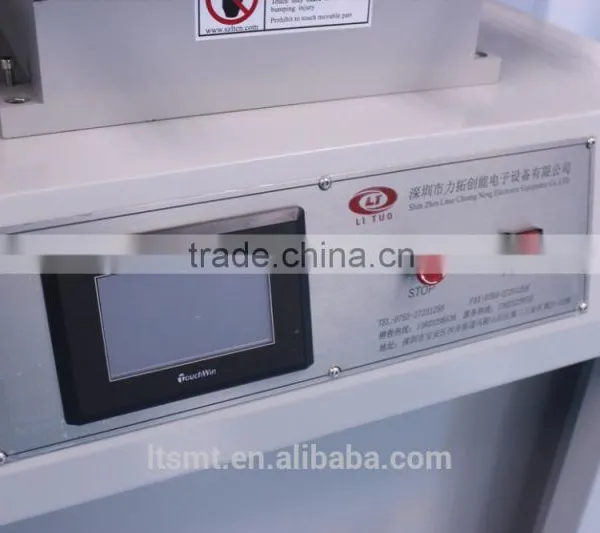

11 touch screen protection (protection):
12 series of products: (application scope)
In order to meet the needs of different customers in the printing range, Rio Tinto launched SP600 model to deal with: 600x320mm with machine: 1200 sp1500 models: 1500x320mm 3088P series: 500 x450mm other series are can be equipped with economic push-button system (b), also suitable for point condition operation needs of the manufacturers.
13 man-machine interface powerful extensions: (utility and individual balance)
14 kinds of positioning methods (PCB devices)

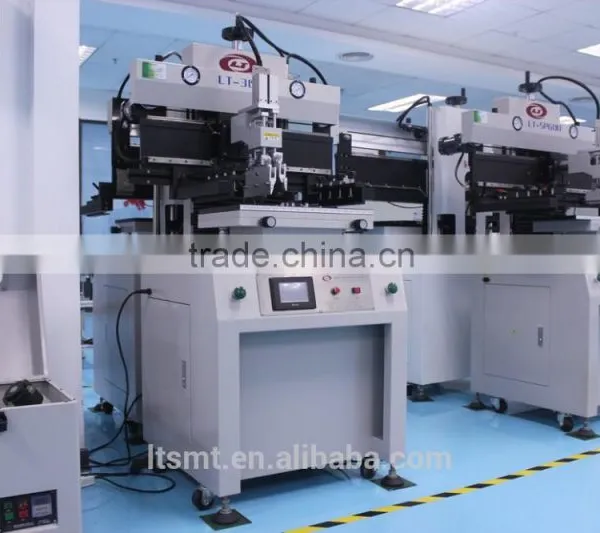

LT-3088 LT-SP600 LT-SP1200 LT-SP1500
Release time 0~5 seconds 0~5 seconds 0~5 seconds 0~5 seconds
Taiwan 320x450mm 320x650 320x1250 320x1550 printing area
Steel mesh size 550X650mm (adjustable) 550X950mm 550X1550mm 550X1850mm
Substrate size maximum (MAX) 320X400mm 320X600mm 320X1200mm 320X1500mm
0.2~3mm 0.2~3mm 0.2~3mm 0.2~3mm substrate thickness
0~6 kgf/cm2 0~6 kgf/cm2 blade pressure 0~6 kgf/cm2 0~6 kgf/cm2

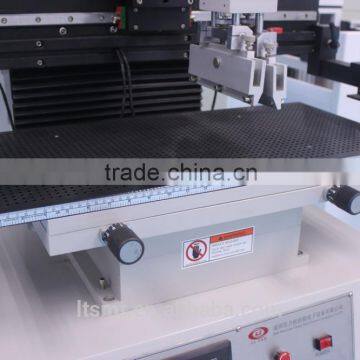

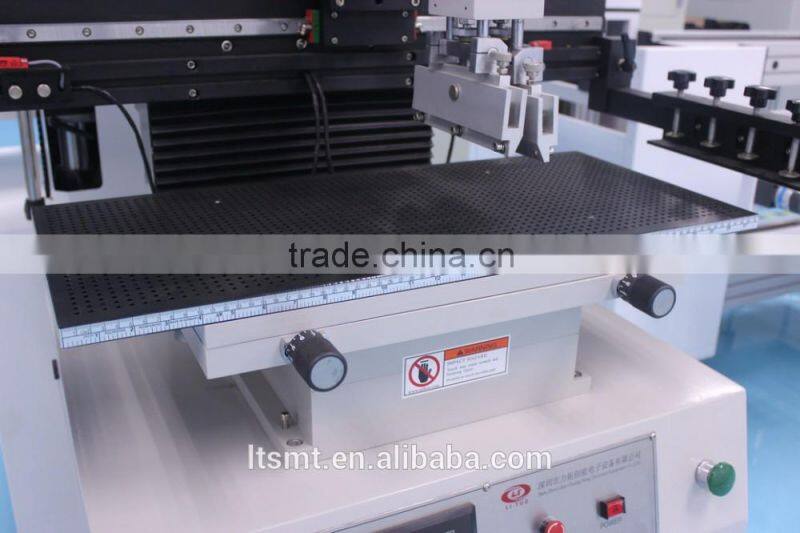

Table trimming Front/back + 5mm
Right/left + 5mm with left and Zuo Tongzuo
Printing blade angle + 60 ~ + 60 ~ + 60 ~ + 60 degrees
Printing precision + 0.03mm + 0.03mm + 0.03mm + 0.03mm
Machine precision + 0.01mm + 0.01mm + 0.01mm + 0.01mm
4.5kgf/cm2 4.5kgf/cm2 4.5kgf/cm2 4.5kgf/cm2 the use of air pressure
Use power single-phase 220V 50/60Hz.
0.1KVA + single phase 50/60Hz 0.12KVA 220V 0.12KVA + single phase 50/60Hz 220V 50/60Hz 0.12KVA 220V
L900XW720XH1680mm L1100XW720XH1680mm L1750XW720XH1650mm L2000XW720XH1650mm machine size
