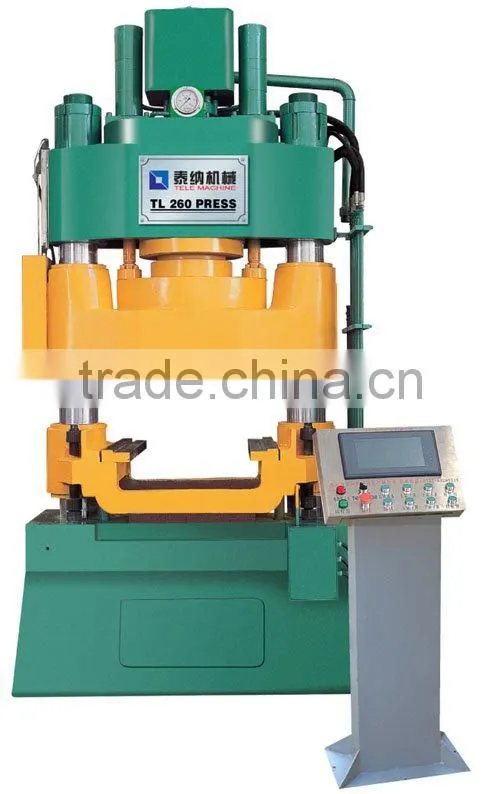

auto hydraulic tiles press machine type TL-YZJ-260

Main body dimension l*w*h

1,600x7508x3055   (mm)

main cylinder max. pressing force

2,600  (kn)

Main cylinder max. pressure

37    (MPA)

Lower cylinder ejecting force

110   (KN)

Main cylinder max stroke

260   (MM)

Lower cylinder ejecting stroke

120   (MM)

Main power

22    (KW)

Net weight

9,000  (kg)

Stander set

Mechanical jacks system :four-beam&two-pillar frame,main cylinder ,pneumatic components, two-way and straight-line miving guider,whole sealing hydraulic system,and power-feeding hydraulic-driving systemect. Electric auto-control system:japanese MITSUBISHI  PLC codingcomponent,L-size color liquid crystal display and man-machine control panel ect.

Feature of type TL-YZJ-260

The Press Type TL-YZJ-260 is special designed and made of leading technology toproduce special ceramic tiles ,like corner tiles ,ultra-thick or special shape ceramic ect .by adopting powder material compacting pressed-forming process. Through whice the required anger or thickness or shape of tilesare achieved, which are smooth in surface,precise in dimensions with high inner density andstrenght.since the hydraulic drove powder-feedingsystm is unique designed of easy-to-adjust but notable low costs compared with other complex and expensive one,the remarkable features of the TL-YZJ-260pressare not only its guaranteed performance but also its high performance-price ratio dealing with varied technical paraments of different special tiles to be made like the tiles anger tiles thick ,pressing-force.or feeding-conditions etc.it is truly the best ideal equipmentfor special ceramics.

1.Mainly for producing special-shape ceramic tiles or ultra-thick tiles, like corner tiles, split rocks etc. by adopting dry pressed- forming process, to get more trendy and characteristic constructional materials.

2. Pattered technology guarantees good performances and easy dealing with varied technical parameters of different kind special ceramics, thickness, pressing-force, feeding-conditions during work.
