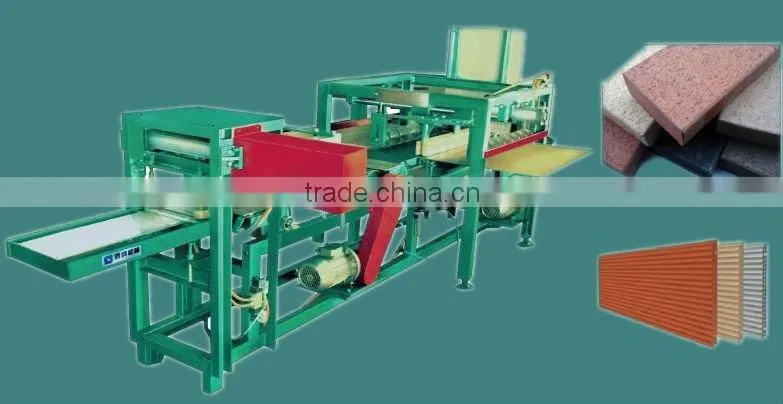

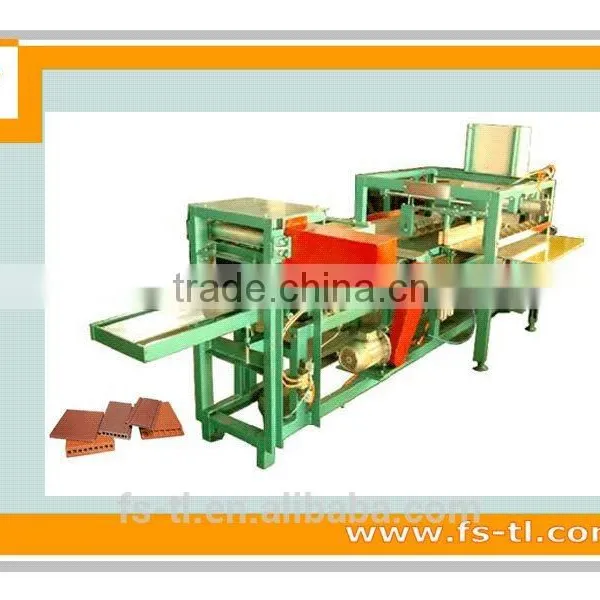

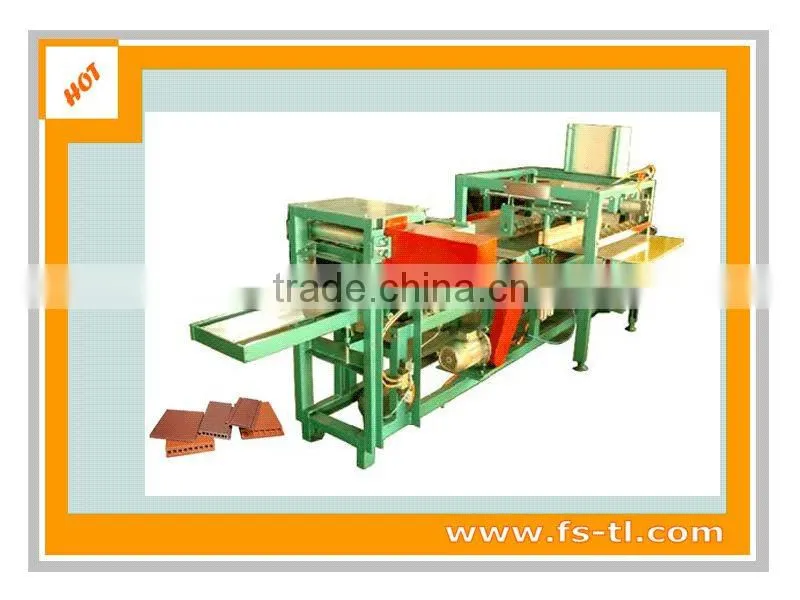

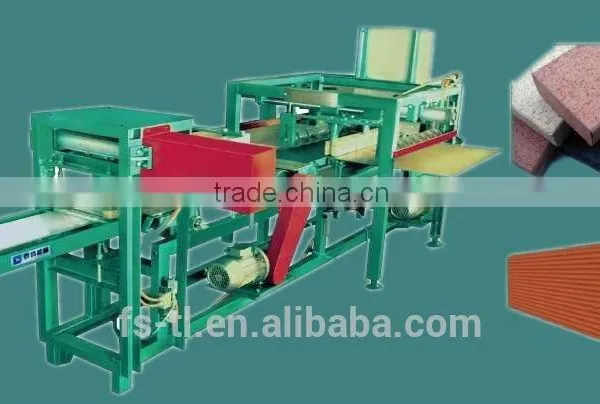

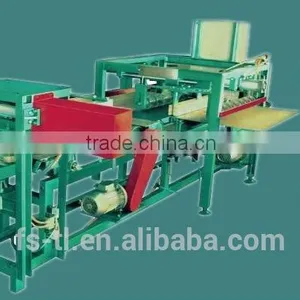

Small scale industries machines Auto Small-Size Horizontal Cutter , small machine cutter Type TL-QDJ-S

Major Technical Parameters of Auto Large-Size & Small-Size Horizontal Cutter Type TL-QDJ-S

Dimension L x W x H (mm)

Cutting Frequency (Matched with the extruder) (1/min)

Capacity (Pieces/min)

Cutting Precision (mm)

3,360 x 1,173 x 1,067

1 ~ 22

2 ~ 66

<1

Motor Power (kw)

Cutting Length Range (mm)

Cutting Width Range (mm)

Net Weight (kg)

3

70 ~ 660

≤ 160

≈  800

Features of This Type

1. Leading technology specially made for the cutting process of high-grade extruded wet-forming green ceramic tiles and bricks,especially for cutting the horizontal conveying tiles, like ceramic plate, special shaped and artistic tiles, clay bricks etc.

2. The unique cutting mechanism and liquid crystal display control panel ensure high quality and whole automatic working of rough cutting, pushing forward, traversing and cutting to fixed size with chamfered edges or carved-marks when needed.
