waterproof SMD 3535 led rigid strip with aluminum profile cover
- 100000 Meter / Meters per Month
- Guangzhou Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
High lumen aluminum base SMD3030 led lattice backlight strip
-
excellent heat dissipation led SMD3030 backlight led source
-
New design LED edge-lit led module using 2W LED chip LED EdgeStrip Module
-
1 sided or 2 sided graphics DC24V osram smd led module
-
DC 24V led Posterbox Module 2016 new design Bijection Distance Max: 3m
-
waterproof SMD side-lit light source 5leds with aluminum base
Product Details
| Light Source | LED | Input Voltage(V) | 24 | |
| Lamp Power(W) | 10 | Lamp Luminous Flux(lm) | 400 | |
| Lamp Luminous Efficiency(lm/w) | 40 | Color Temperature(CCT) | Other, 6000-6500K | |
| Working Temperature(℃) | -30, 60 | Working Lifetime(Hour) | 50000 | |
| IP Rating | IP67 | Certification | CCC, CE, EMC, FCC, GS, UL | |
| Emitting Color | Other, White, White | Lamp Body Material | Aluminum | |
| Place of Origin | Guangdong, China | Brand Name | HBM | |
| Model Number | HBM-3535 |
Product Description

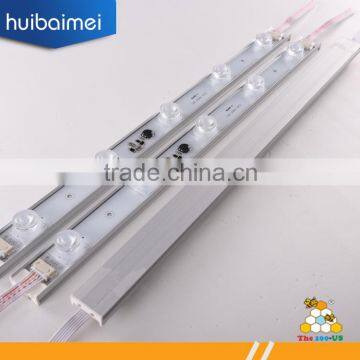

waterproof SMD 3535 led rigid strip with aluminum profile cover
Product Description:
1) Excellent edge-lit solution for single or double side lightboxes
2) High power Samsung chip SMD3535 LEDs
3) Special design of LENs to allow narrow beam angle
4) DC24V/12V input. Waterproof for outdoor light box
5) Aluminum PCB for good heat dissipation
6) UL/cUL Listed
7) Light boxes up to 1800mm wide only require LEDs along the two long sides
Light boxes wider than 1800mm are lit from all 4 sides
8) Indoor as well as waterproof outdoor modules available
Specification
| Series high power edgelit for single and double-sided illumination | |
| Voltage | dc12V/24V |
| Current | 400mA |
| Power | 6W-12W(2W/LED) |
| Luminance/Led | 180Lm/LED |
| Luminance/Strip | 480-510Lm |
| Number of LEDs | 3-5pcs |
| Distance between LED | 72 mm |
| Emission Angle | 15°*45° |
| Sealing | IP65 |
| Working Temp.(°C) | -20°C/+60°C |
| Color Temp. | 6200-7000k or customized |
| Measures | 360×23×15mm |
| Lumens decay | 1%-2% 1,000h |
| Lifespan | >50,000 h. |
| Chip | Korea Samsung |
| Lens | PMMA Japan raw material |
| Warranty | 3years |
Please note:
1) Input voltage of bars: DC12V/24V depends on bar length.
2) Please pay attention to the power load of each bar and your power supply. Usually give some
margin to maximum
Q: What is the standard strip size?
A: 50cm---6lens; 45cm---5lens; 36cm---4lens; 25cm---3lens
Q: How long is the lead time?
A: Sample usually takes about 1-2 working days, mass production depends on order quantity.
Q: What's the MOQ?
A: Sample is acceptable.
Q: What's your payment method?
A: Sample: full payment. order: 30% deposit in advance before production. We accept Western Union, T/T and Paypal.
ect
Q: Can you provide the shipping quotation?
A: Sure, we cooperation with DHL, UPS, TNT etc express company with competitve price and best sevice.
