P10 LED Display Module 320*160mm 32*16 Pixels Waterproof High Brightness for Text Message Led Sign

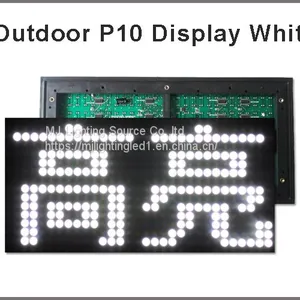

P10 LED Display Module 320*160mm 32*16 Pixels Waterproof High Brightness for Text Message Led Sign thumbnail-1
P10 LED Display Module 320*160mm 32*16 Pixels Waterproof High Brightness for Text Message Led Sign thumbnail-2
P10 LED Display Module 320*160mm 32*16 Pixels Waterproof High Brightness for Text Message Led Sign thumbnail-3
P10 LED Display Module 320*160mm 32*16 Pixels Waterproof High Brightness for Text Message Led Sign photo-1

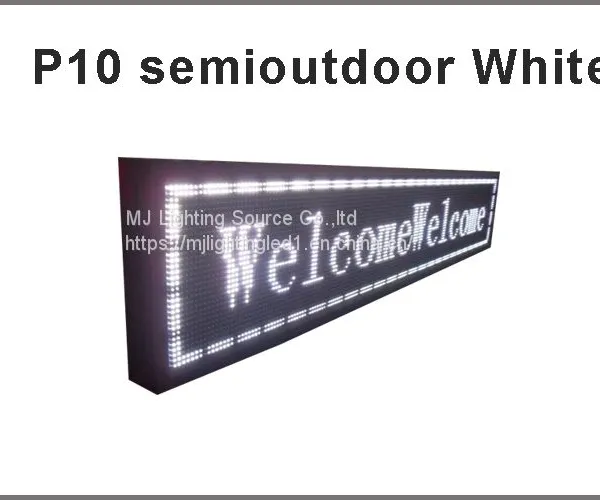

P10 LED Display Module 320*160mm 32*16 Pixels Waterproof High Brightness for Text Message Led Sign photo-2

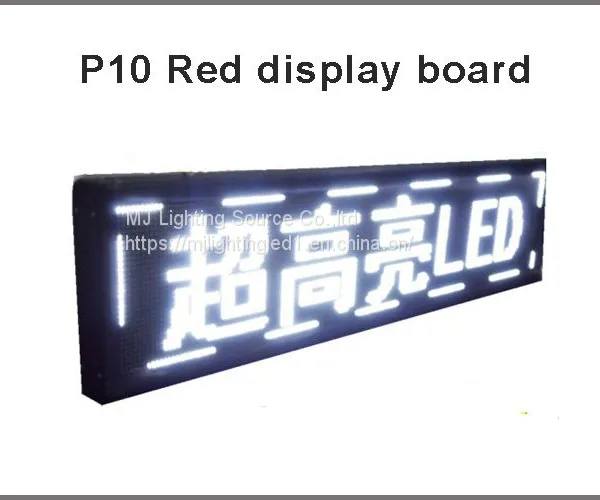

P10 LED Display Module 320*160mm 32*16 Pixels Waterproof High Brightness for Text Message Led Sign photo-3
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
MJ
Place of Origin:
China
Model Number:
MJ-P10-Outdoor-DIP-white
Contact Supplier Request Quote Chat Now
MJ Lighting Source Co.,ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
2 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MJ
Place of Origin China
Model Number MJ-P10-Outdoor-DIP-white
Certification CE, ROHS
Light Source LED
Emitting Color Cold White
IP Rating IP65
Color Temperature(CCT) Cool White
Input Voltage(V) 5V
Working Lifetime(Hour) 100000
CRI (Ra>) 90
Working Temperature(℃) 0, 50
                                    Main products Hot seller
RGB LED module 5050 modules 5054 3led modules 5730 pixel modules
RGB Pixel light Fullcolor led pixel light 9mm 5V pixel led
p10 led module RGB Display module RGB Display module P10 message board
HD-D10 controller card ZH-Um controller LED controller card LED Controllers
LED Drivers RGB LED Controllers LED Power supply DMX512 led Controller


P10 LED display module 320*160mm 32*16 pixels Waterproof high brightness for text message led sign


Specification:

Item Outdoor P10 led module 320*160
Pixels Pitch 10mm
Control Mode Synchronous/Asychronous
Cabinet Size 320*320mm
Driver Mode 1/4
Pixel Density 10000 pixels/m2
Refresh Rate ≥60HZ
Color White
System Operating Platforms WIN98,WINXP,WIN2000…ect
Panel Resolution 32*16
Input Voltage AC200-265V
Resolution 1024 pixels
Data Communication RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION
The Best View Distance 10-100m
The Best View Angle Level:90°-130°; Up:30°-45°; Down:10°-20°
Control System PCTV card+DVI Graphics+ Main Controller+Optical fiber
Brightness ≥2000cd/m2
MTBF ≥1000hours
Lifespan 10,0000H
Max Power Consumption ≤400W/m2
Failed Rate





Pictures:

Pls check the pictures below. Red,Green,Bule, Yellow,White colors for choose from.






Feature:

1) Taiwan Epistar LED chip

2) Fiberglass green enviromental PCB with 18mil  thickness copper plating .

3)  wide view angle (120 degree) with excellent visibility and good performance.

4) quick and easy assembly and disassembly.

5) High brighness (>2000cd/sqm) and refreshrate.

6) Two years warranty.


Applications:

P10 semioutdoor is widely used for advertising in front of buidings like shops, supermarket,hotel....ect.
