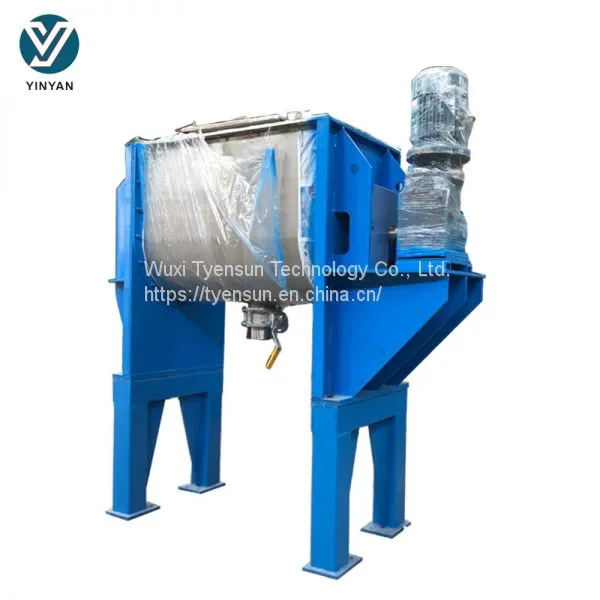

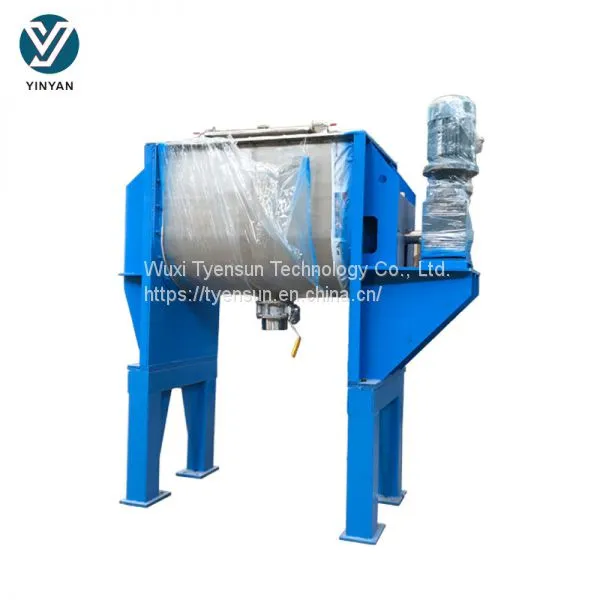

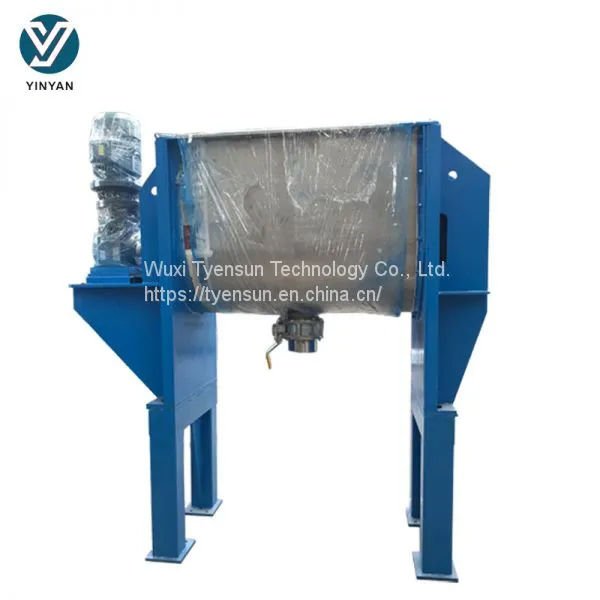

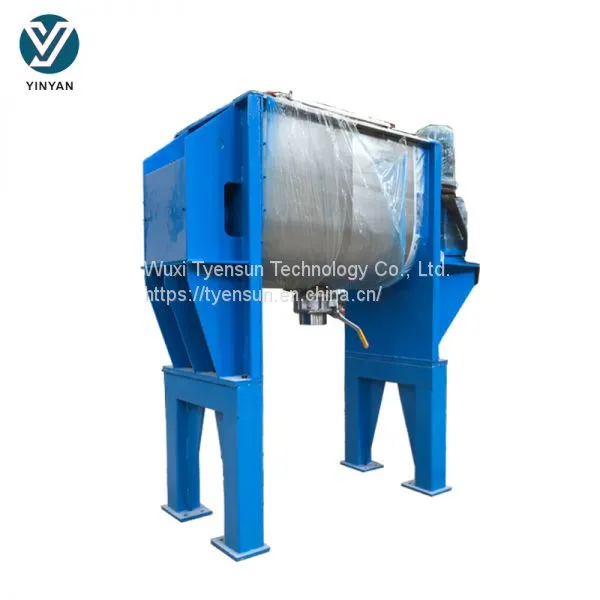

Horizontal Plough Powder Mixer
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
YINYAN
Place of Origin:
China
Certification:
ISO
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Horizontal Double Shaft Paddle Non-gravity Dry Powder MixerNegotiableMOQ: 1 Set -
Customized Industrial Mixing Tank/ Blending Vessel/ ReactorNegotiableMOQ: 1 Set
-
Customized Industrial Mixing KettleNegotiableMOQ: 1 Set
-
Industrial Electrical-heating Mixing Kettle/vessel/reactorNegotiableMOQ: 1 Set
-
Sealant Making Machine Dual Planetary MixerUS$ 999 - 10000MOQ: 1 Set
Brand Name
YINYAN
Place of Origin
China
Certification
ISO
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 Year
Dimension(L*W*H)
Custom Made
Condition
New
Product Type
Detergent Powder
Voltage
customized
Application
Powder
Power(W)
customized
Max. Loading Capacity
10000L
Additional Capabilities
Other, mixing, drying
Mixer Type
Agitator
Product Description
Horizontal plough mixer consists of drive disk assembly, agitator, round-shape cylinder, high-speed fly-cutter. The plough not only disperses materials along axial direction during high speed rotation, but drives the materials flow in circles around the cylinder wall, which settles the stratification efficiently. At the same time, fly-cutter rotates in high speed to smash the agglomeration. With the combined action of plough and fly-cutter, materials can be fully mixer in short period.
Technology parameters:
| Model | Power (kw) |
Speed (rpm) | Fly-cutter Power&Q’ty (kw) | Fly-cutter speed(rpm) | Size | Capacity | Size | Weight | ||
| (mm) | (L) | (kg) | ||||||||
| length | width | Heigth | ||||||||
| PPM-1 | 11 | 62 | 3*2set | 1440 | Ø900*1500 | 300-600 | 2700 | 1000 | 1450 | 1600 |
| PPM-2 | 15 | 50 | 3*3set | 1440 | Ø1100*2000 | 600-1200 | 3300 | 1200 | 1700 | 2500 |
| PPM-3 | 18.5 | 50 | 3*3set | 1440 | Ø1280*2250 | 900-1800 | 3800 | 1300 | 1950 | 2900 |
| PPM-4 | 22 | 42 | 3*4set | 1440 | Ø1400*2700 | 1200-2400 | 4100 | 1400 | 2000 | 4000 |
| PPM-5 | 30 | 42 | 3*4set | 1440 | Ø1500*3000 | 1500-3000 | 4200 | 1500 | 2000 | 4500 |
| PPM-6 | 37 | 42 | 3*4set | 1440 | Ø1600*3200 | 1800-3600 | 4500 | 1700 | 2000 | 6000 |
| PPM-8 | 45 | 33 | 3*5set | 1440 | Ø1650*3750 | 2400-4800 | 5000 | 1800 | 2200 | 7500 |
| PPM-10 | 55 | 33 | 3*5set | 1440 | Ø1800*4000 | 3000-6000 | 6000 | 1900 | 2500 | 8500 |
Remarks:
(1) Max. capacity: 10000L
(2) The table cannot include all products, please contact with our sales engineers for more information.
