Help Center4*2*0.5mm Cat5 Utp Copper Coated Steel Cat5 Splitter
Related Products
-
4*2*0.48mm Cat5 Utp Copper Coated Alumium Cat5 SplitterNegotiableMOQ: 5000 Meters -
Cheap Lan Cable Cat5 SplitterNegotiableMOQ: 5000 Meters
-
4*2*0.4mm Cat5 Utp Copper Coated Alumium Lan Cable TesterNegotiableMOQ: 5000 Meters
-
4*2*0.4CCA Cat6 FTP Copper Coated Alumium Indoor Fire-retardant,low Smoke Non-toxic, Water-proof,sewer,overhead Lan CableNegotiableMOQ: 5000 Meters
-
4*2*0.5 CCA Cat5e FTP Insects and Rodents Resistant Lan CableNegotiableMOQ: 5000 Meters
Specifications
4*2*0.5mm cat5 utp copper coated steel cat5 splitter1.material:copper coated steel
2.lenth:305m
st:365yuan
4*2*0.5mm cat5 utp copper coated steel cat5 splitter
standard
1-ISO/IEC 11801
2-TIA/EIA-568-8.2
3-UL 444 /RoHS
4-UL 444(CM/CMR/)
good sales cat5 utp 4p copper coated steel cat5 splitter24AWG Patch Cord with best price and high quality

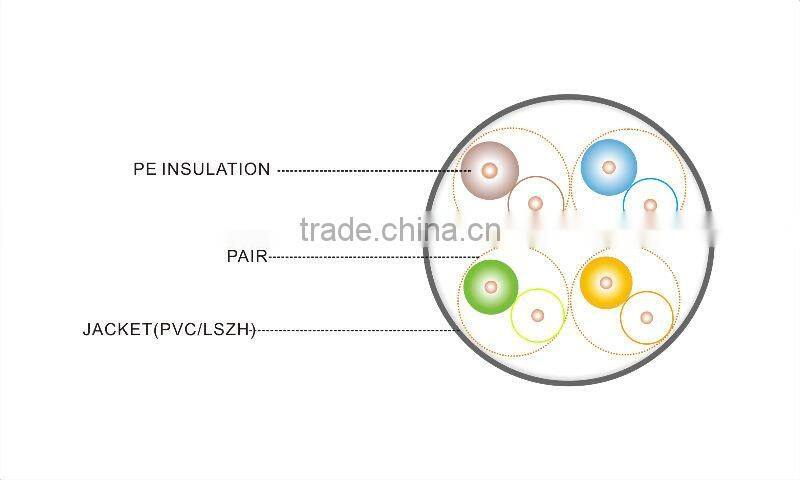

nstruction
1)Conductor:
* material: copper coated steel
* Conductor Diamter.: 0.585±0.003mm
* Quantity:4 twisted pairs
Blue/white-blue Green/white-green
Orange/white-green Brown/white-brown
2)Insulation:
*material:high density polyethylene
* insulationDiameter:1.45±0.005mm
* Average thickness: 0.4325 mm
* Minimum point thickness: 0.43mm
4)sheath:
* material: PVC or LSHZ
* Nominal Diameter.: 7.50 ± 0.2mm
* Average thickness: 0.55mm
* Minimum point thickness: 0.45mm
5)Mechanical Properties:
*Conductor insulation material: PE
*Cable jacket material: halogen-free, flame-retardant material
*Application area: dray as well as humid rooms
*Temperature (moved): 0°C to 50°C
*Operating temperature: -20°C to +60°C
*Min. bending radius for one-time bending: 4×O.D.(not less than 15 times of the outer diameter when the outer diameter is not more than 40mm and not less than 20 times of the outer diameter when the diameter larger than 40mm.)
*Min. bending radius during installation: 8×O.D.
We are manufacturer, warmly welcome yourCUSTOM CABLE ASSEMBLY REQUEST
6)Cable assembly specification:
Conductor |
Insulation |
Core Number |
|
Shielded |
|
Jacket |
||||
AWG |
Specification mm |
Material |
Thickness (NOM.mm) |
Material |
Thickness (NOM.mm) |
OD (NOM.mm) |
||||
24 |
1/0.511 |
HD-PE |
0.20 |
4P |
|
PVC or LSZH |
|
PVC or LSNH |
0.55 |
5.5 |
26 |
1/0.404 |
HD-PE |
0.20 |
4P |
|
PVC or LSZH |
PVC or LSNH |
0.60 |
5.0 |
|
| ||||||||||
7). Transmission Properties: ( at 20°C)
Frequency [MHz] |
1 |
10 |
16 |
20 |
31.25 |
62.5 |
100 |
300 |
600 |
Typical values (attenuation) [db/100m] |
1.8 |
5.2 |
6.8 |
7.7 |
9.6 |
13.8 |
17.5 |
31.5 |
45.0 |
Typical values (NEXT) [db/100m] |
>100 |
>100 |
>100 |
>100 |
>100 |
>100 |
98.0 |
93.0 |
89.0 |
Typical values (PSNEXT) [db/100m] |
98.0 |
98.0 |
98.0 |
98.0 |
98.0 |
98.0 |
96.0 |
91.0 |
87.0 |
Typical values (ELFEXT) [db/100m] |
93.0 |
93.0 |
93.0 |
93.0 |
90.0 |
86.0 |
84.0 |
65.0 |
45.0 |
Typical values (PSELFEXT) [db/100m] |
91.0 |
91.0 |
91.0 |
91.0 |
88.0 |
84.0 |
82.0 |
63.0 |
43.0 |
Typical values (RL) [db/100m] |
26.2 |
34.7 |
36.3 |
35.7 |
36.3 |
36.1 |
36.1 |
31.7 |
27.5 |
Typical values (ACR) [db/100m] |
98.2 |
94.8 |
93.2 |
92.3 |
90.4 |
86.2 |
80.5 |
61.5 |
44.0 |
1. Telecommunications
2. Local Area Network (LAN)
9)packing:one piece into one plastic bag then into one box/carton
10)testing:
11)certificate
we have won and adopted TLC and so on quality managment system to stricly control the quality of communication cable and its accessories.Oure products are well received by China Telecom, China Netcom, China railcom,CPN, Specail network and Commerical Netcom.
12)export market:
mainland China, africa oceania eastern Europe , southeast Asia,South America and so on.
Do you know our producing concept?
13) producing concept: * We promote the concept of green environmental protection, we produced the jumper wire is low smoke zero halogen and environmental .
* Meanwhile,we follow the principle of human base, quality first, keep improving, competitive price , satisfactory service ,cost reduction, well effiency, on time delivery
