Help Center4*2*0.4CCA Cat6 FTP Copper Coated Alumium Indoor Fire-retardant,low Smoke Non-toxic, Water-proof,sewer,overhead Lan Cable
Related Products
-
4*2*0.5 CCA Cat5e FTP Insects and Rodents Resistant Lan CableNegotiableMOQ: 5000 Meters -
4*2*0.5 Cat6 CCA Copper Coated Alumium Water Proof Lan CableNegotiableMOQ: 5000 Meters
-
4*2*0.4 Cat6 CCAutp Fire Retardent Water Proof Lan CableNegotiableMOQ: 5000 Meters
-
Cat5e Networking Cable Best Price for BuyerUS$ 15 - 45MOQ: 50 Boxes
-
Cat5e Networking Cable Best Price for BuyerUS$ 15 - 45MOQ: 50 Boxes
Specifications
1.material:copper coated alumium2.outer packing and size:plastic,wooden drum/18.5x37.5x36.5 cm
nological standard: EV

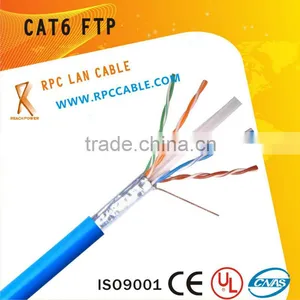

4*2*0.4 copper coated alumium indoor use lan cable
nductor size deviation: norminal diameter of 0.4mm or below, deviation will be less than 0.004mm .the nominal diameter of 0.4mm or above , deviation will be less than 1%.

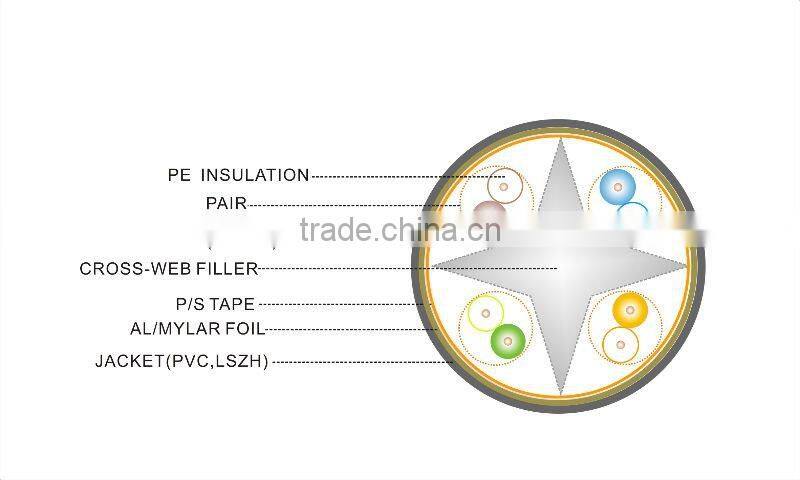

2.specification:4P +Mylar +D +AL
3.insulation structure:three choice:A Solid polyolefin
B foam polyolefin
C skin foam polyolefin or a skin
4.insulation core colour: Uniformity of colour identificaton ,the use of the following 10 colours ,colour GB 6995.2
Provisions:
Main line : white red black yellow purple
Auxiliary: blue orange green brown grey
5. MechanicalProperties
Elongation: Min. 300%
Temperature Range: -20 Up To +75 Celsius Degree
Tensile Strength: Min. 1.68kg/Mm2
6.alumium:outer sheath of the cable core package with or overlap longitudinallly wrapped YD/T 7232-2007 under the double-sided alumium -plastic composite tape layer, aluminum thickness of 0.20mm.
7.ripcord :ripcord can place throughout the entire cable does not absorb moistrue ,oil, nad have sufficient strength to open the cable
8.Standard:
Meets ISO/IEC 11801 Standards
Meets ANSI/EIA/TIA 568-B. 2 Requirements
Fire Protection: IEC 60332-1 (CMR ),
The Cable Meets UL 444 UL 1581 Fire Safety Standard
9.export market:North America, mainland China, Africa , oceania ,eastern Europe southeast asia and so on.
10.Packing:
1000ft/Pull Box, 2boxes/Out Carton
1000ft(305m)/Pull Box, 45boxes/Pallet, 20'container Can Hold 20pallet, 900boxes.
Or As Customers' Requirments. Weight Per 305m(1000 Ft): 9.8 Kg
11.Applications:
IEEE 802.3 1000BASE-T, 100BASE-TX, 10BASE-T (IEEE 802.3u).
155 MB/S ATM.
ANSI X3.263 100MB/S.
4/16 MB/S Token Ring.
High Definition Video.
Digital Broadcast Video/IP Video/VoIP.
ISDN/ADSL
mark:RPC

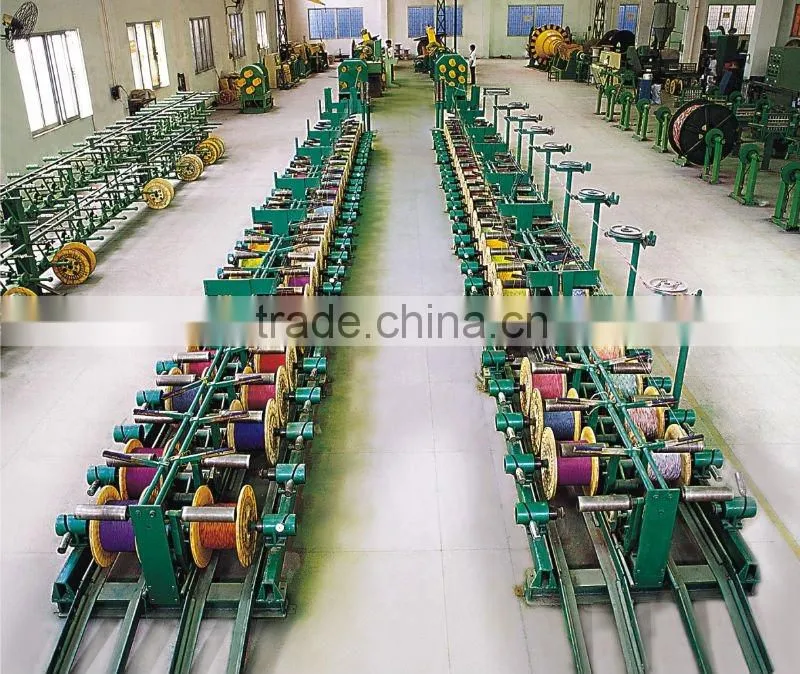

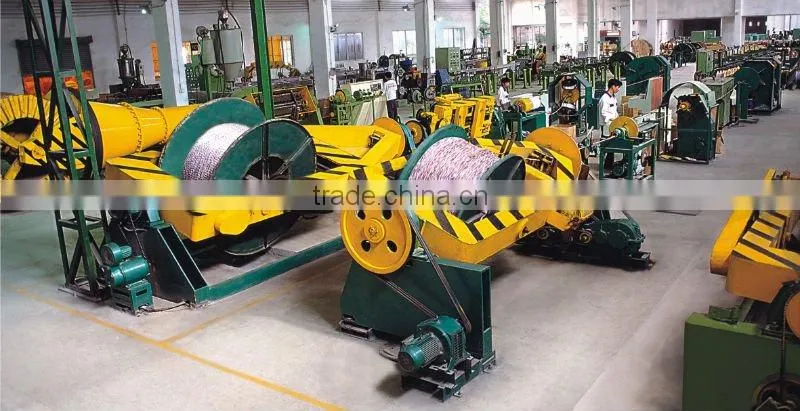

13.Factory show
Founded in 1989,Foshan RPC CABLE MFG.ENTERPRISE. IS one of the specialized manufactures in producing Lan cable ,telephone cable ,drop wire and so on.More than twenty years of profesional manufacturing experience has equipped RPC Mfg.Enterprise with adcanced production facilities and technologyh , skilled workers and engineers.
