Good Quality Fluke Test Past Cat 5 Cable Connector

Good Quality Fluke Test Past Cat 5 Cable Connector thumbnail-1
Good Quality Fluke Test Past Cat 5 Cable Connector photo-1
US$ 56.95 - 65.93 MOQ: 50 Boxes
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Canton RPC
Model Number:
cat5
Contact Supplier Request Quote Chat Now
Foshan Rpc Cable Mfg.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen/Foshan
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Canton RPC
Model Number cat5
Type Cat 5
Number of Conductors 8

Specifications

good quality fluke test past cat 5 cable connector
Conductor: 99.99% bare copper
Insulation: HDPE

good quality fluke test past cat 5 cable connector

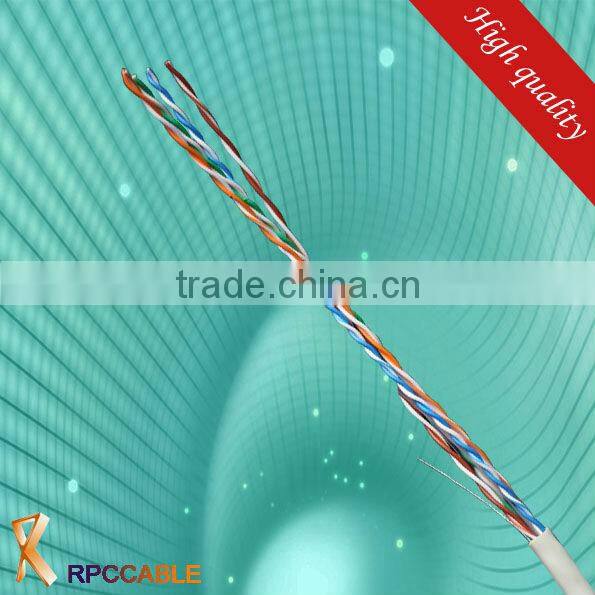

1. Product display

good quality fluke test past cat 5 cable connector

-------------------------------------------------------------------------------------------

2.Mechanical Characteristics



Maximum Pulling Force:50 N

Minimum Bending Radius :45 MM

Nominal Weight:40 KG/KM

Operating Temperature: -15Deg C ~ +70 Deg C

Installation Temperature: +5 Deg C ~ +40 Deg C

Flammability Grade: CMX, CM, CMG, CMR

Pairs: 4

Pair1: Orange/White Orange
Pair2: Blue/ White Blue
Pair3: Green/ White Green
Pair4: Brown/White Brown

Sectional view:

good quality fluke test past cat 5 cable connector





 -----------------------------------------------------------------------------------------------------

 3. Related product display



 cat6  sftp lan cable

 good quality fluke test past cat 5 cable connector



 -----------------------------------------------------------------------------------------------------------

4.Application

 1.Computer Network Cabling Project

 2.Broadband Network Communication

 3. Intelligent building or residential cabling systems,



 4. Local area network system,



 5. Computer network distribution system,



 6.Communication network systems,



 7.Test equipment, and cable systems,



 8.Security monitoring systems.





--------------------------------------------------------------------------------------------------------------

 5.Electrical characteristics: ( at 20°C)



Frequency(MHz)

Impedance(ohm)

RL(dB)

Attenuation(dB/100m)

Next(dB)

Next Power Sum(dB)

ELFEXT(dB)

PSELFEXT(dB)

1.0

100±15

20.0

2.0

62.3~65.3

62.3~62.3

61.0~63.8

61.0~60.8

4.0

100±15

23.0

4.1

53.0~56.3

53.0~53.3

49.0~51.8

49.0~48.8

10.0

100±15

25.0

6.5

47.0~50.3

47.0~47.3

41.0~43.8

41.0~40.8

16.0

100±15

25.0

8.2

44.0~47.2

44.0~44.2

37.0~39.7

37.0~36.7

20.0

100±15

25.0

9.2

43.0~45.8

43.0~42.8

35.0~37.8

35.0~34.8

31.25

100±15

23.6

11.7

40.0~42.9

40.0~39.9

31.0~33.9

31.0~30.8

62.50

100±15

21.5

17.0

35.0~38.4

35.0~35.4

25.1~27.8

25.1~24.9

100.0

100±15

20.1

22.0

32.0~35.3

32.0~32.3

21.0~23.8

21.0~20.8





 ------------------------------------------------------------------------------------------------------------------

 6.Test report









 ----------------------------------------------------------------------------------------------------------------

 7.packing process



first put lan cable into a plastic roller



good quality fluke test past cat 5 cable connector

    then into a box

               ↓

good quality fluke test past cat 5 cable connector

   finally wrap the box

               ↓

 good quality fluke test past cat 5 cable connector





---------------------------------------------------------------------------------------------------------------------------------------------------------------------------

 pany view



                   Do you know our producing concept?

  We promote the concept of green environmental protection, we produced the jumper wire which is low smoke zero halogen and environmental .good quality fluke test past cat 5 cable connectorgood quality fluke test past cat 5 cable connector



 Meanwhile,we follow the  principle of human base,

quality first, keep iproving, competitive price satisfactory service ,cost reduction, well effiency, on time delivery.





 ------------------------------------------------------------------------------------------------------------

Looking forward to your inquiry and cooperation!

We will reply as soon as possible!

good quality fluke test past cat 5 cable connector
