Specifications
Professional utp cable cat6 price with great price1.24 awg
pper
3.indoor use
4.ce/rohs/iso9

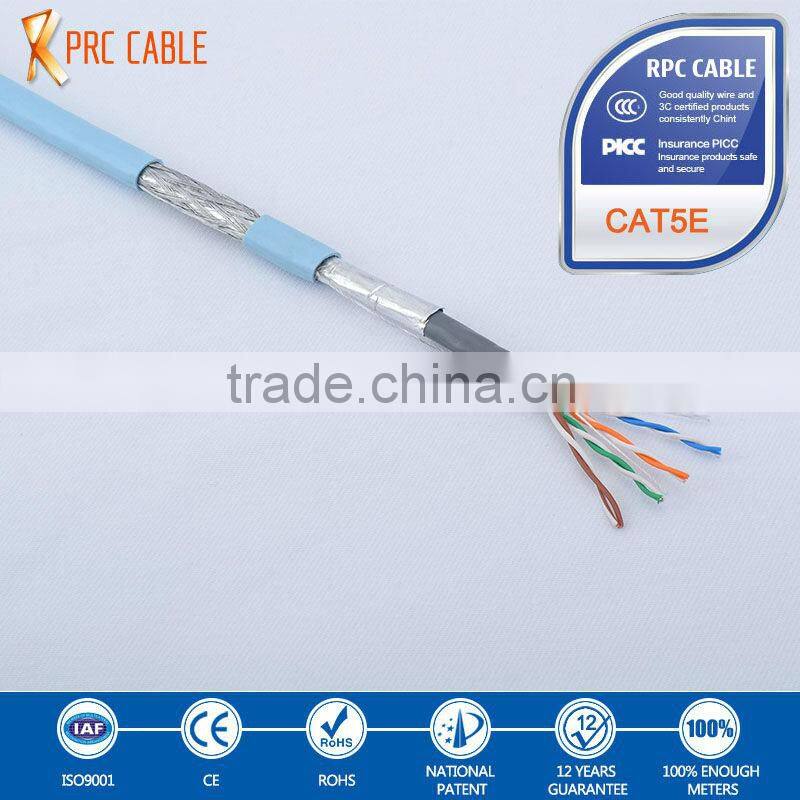

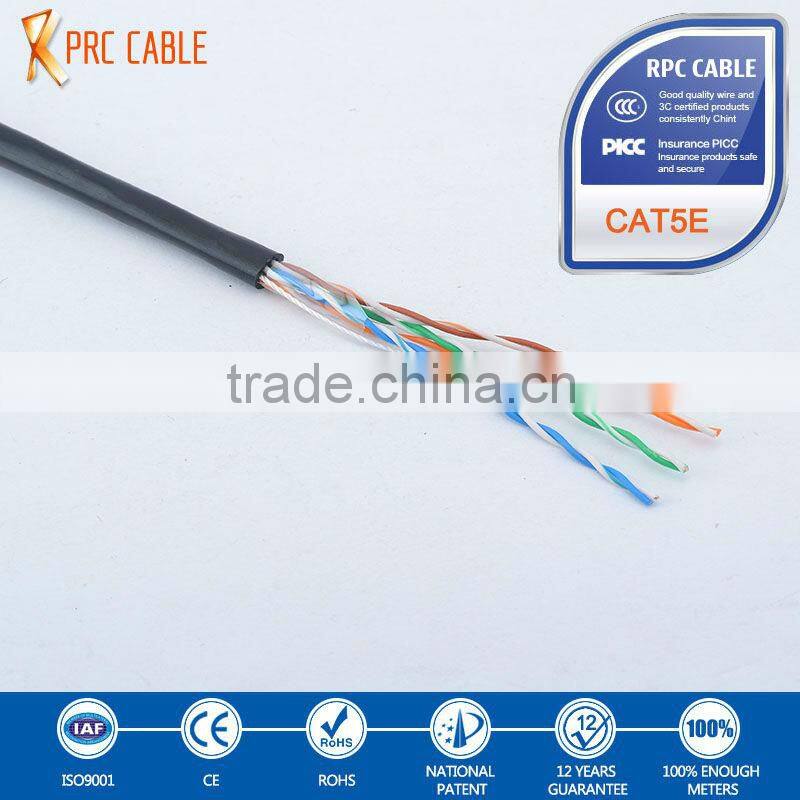

Professional utp cable cat6 price with great price
Description
The cable of category 5e consists of 4 polyolefin-insulated pairs and is covered with PVC jacket. The cable includes the ripcord. The cable designed for industrial networks like Industrial Ethernet and application in severe operation conditions, has colour codes of pairs for the applications like EtherNet/IP, supports applications like Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, RS-422. This cable has the index CMR, which enables its installation in rising mains, and the index CMX-Outdoor, which enables its usage as a limited application cable for the outdoor cabling. The cable is compatible with connectors like RJ-45.
The cable complies with UL1666 Riser, UL 444; IEC 11801; TIA/ EIA 568-B.2; NEMA WC-63.1
Materials
The conducting material is annealed soft electrolytic copper wire, monolithic
Core insulation: polyolefin
Jacket: gray PVC for the indoor cabling
Technical characteristics
| Conductor (core) diameter | 0.51 mm (0.02", 24 AWG) |
| Insulated conductor diameter | 0.94 mm (0.04") |
| The outer jacket thickness | 0.76 mm (0.03") |
| Insulation thickness | 0.2 mm (0.008") |
| Cable weight per 1000 ft | 11.3 kg (25 lbs) |
| Cable outer diameter | 5.8 mm (0.23") |
| Operation temperature | -40°C – +75°C (-40°F – +167°F) |
| Cabling temperature | -25°C – +75°C (-13°F – +167°F) |
| Bend radius | 6.35 mm (0.25") |
| Tension force | max. 177.9 N |
Electrical characteristics:
| Maximum direct current conductor resistance at 20°C (68°F) | 94 Ohm/km (151.28 Ohm/mile) |
| Min. insulating resistance | 5 GOhm/km (8.05 GOhm/mile) |
| Max. Ohmic asymmetry | 2% |
| Capacitive asymmetry at the frequency of 1 kHz | 1.6 pF/m (0.49 pF/ft) |
| Propagation velocity | 68-70% |
| Max. operating voltage | 220 V |
| Dielectric breakdown strength | 700 V/1 min |
| Wave impedance at the frequency of 1-100 MHz | 100 ± 15 Ohm |
| Propagation delay at the frequency of 1 kHz | 5.7 ns/m (1.74 ns/ft) |
| Phase shift at the frequency of 1-100 MHz | 15 ns/100 m (4.57 ns/100 ft) |
| Coupling attenuation at 1-100 MHz | 40 dB |

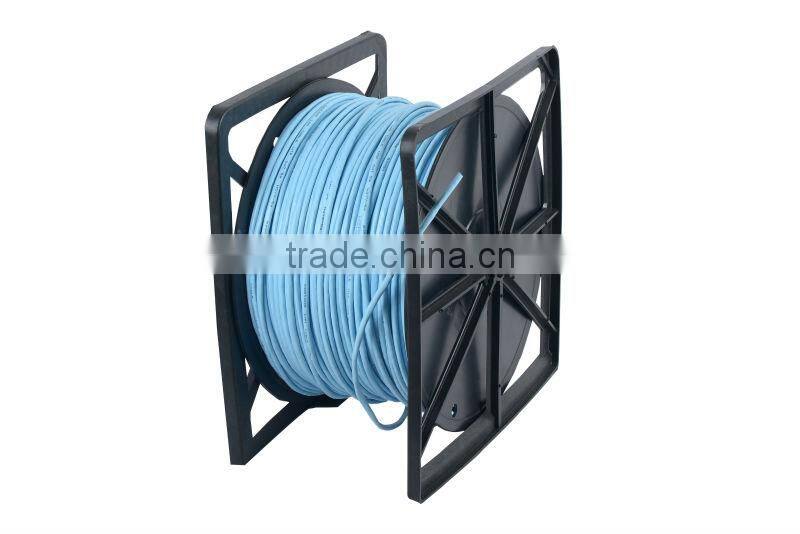

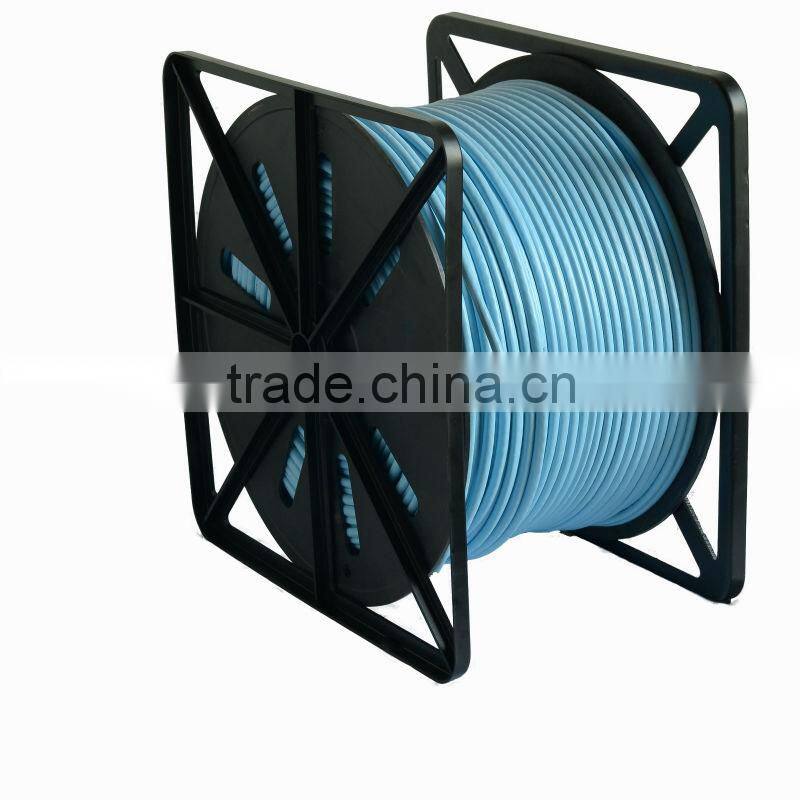

package:

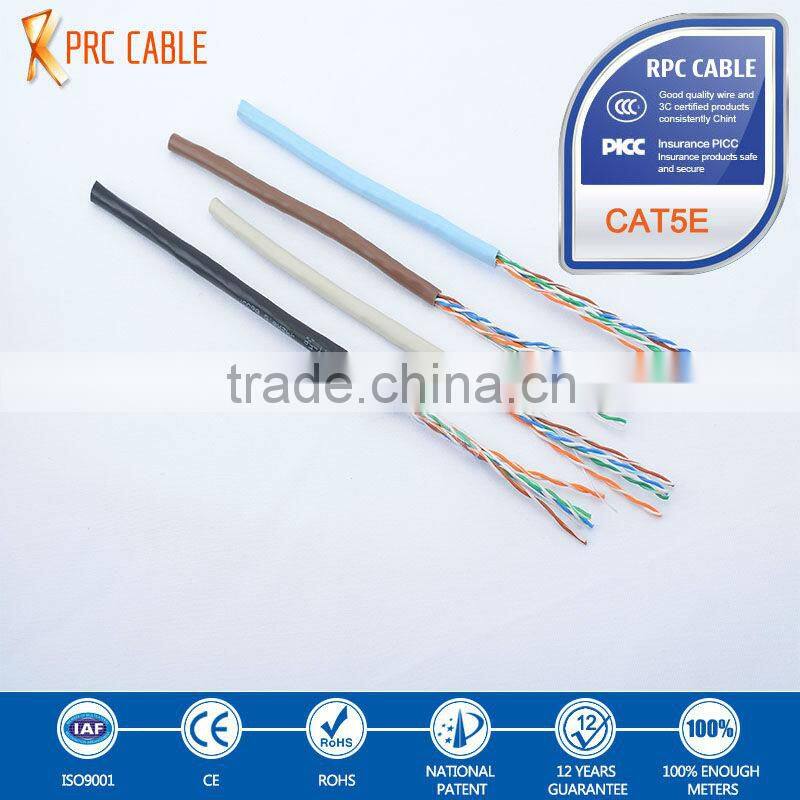

product series:
factory workshop
test
certification
payment
delivery
Drop shipping. Sent out orders in 24 hours by TNT, DHL, EMS FedEx etc.
By air (DHL, FedEx, UPS, etc.)
1. Sample's lead time: 3-7 days
2. Mass productions' lead time: 7-20 days
By sea shipping when bulk order
