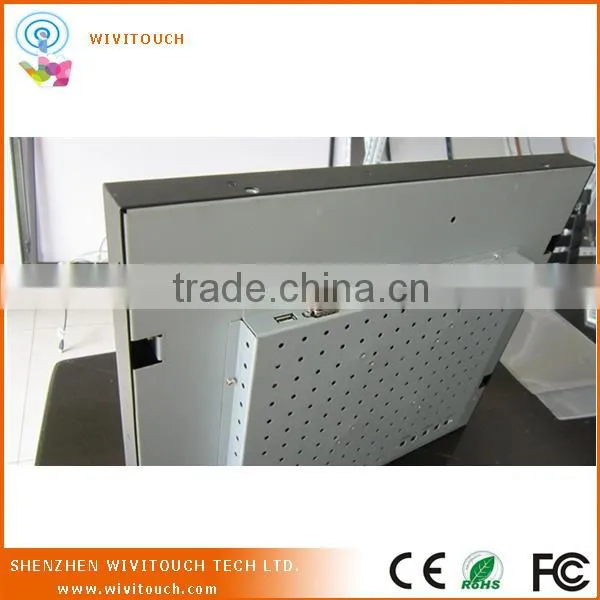

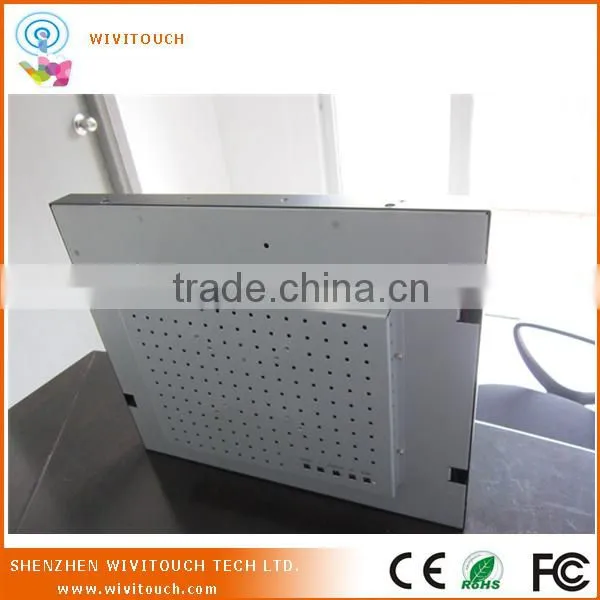

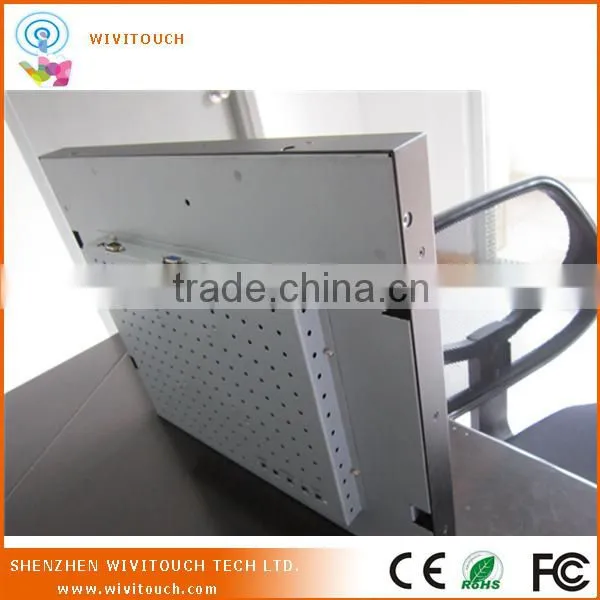

22" open frame monitor brightness adjustable 350-1000cd/m
We will work closely with you to create the right solution bespoke to your business needs, giving you a return on investment that is both quick and substantial.
WiViTouch appreciates the support and favor from all the friends!
22" |
|
Series |
Dustproof & Dustproof with Vandaproof Types |
Frame |
Metal openframe |
LCD Type |
TFT-LCD |
Active Area |
473.8x296.1mm |
Best resolution ratio |
1680x1050 |
Stand by color |
16.7M |
Bright (Typ.) |
Liquid crystal faceplate :300cd/m^2 |
Liquid crystal faceplate pluses install surface sound wave Hong Mo Ping behind :275cd/m2 | |
Response Time |
5ms |
Angle of view(Typ. At CR> 10) |
Level (Left /right):85° /85° |
Angle of view(Typ. At CR> 10) |
Plumb (On /under):80° /80° |
Contrast (Typ.) |
1000:1 |
Video frequency importation format |
RGB |
Signal input format |
Line ground synchronously separate (TTL) |
Video |
Mini D-Sub 15-pin VGA |
Scan frequency (Line /) |
30~80KHz/60~75Hz |
Ring |
Usage temperature :0 is to 50° C storage temperature :-20 is to 60° C Operation comparative absolute humidity :20% to 80% store comparative absolute humidity :10% to 90% |
Have not crash time averagely (MTBF) |
Usage temperature :0 is to 50° C storage temperature :-20 is to 60° C Operation comparative absolute humidity :20% to 80% store comparative absolute humidity :10% to 90% |
Have not crash time averagely (MTBF) |
50, 000 hours |
Is in a poor light fluorescent tube longevity (Typ.) |
50, 000 hours |
Weight (Behind net weight / wrapping) |
8kg/11KG (Approx) |
Achievements consume |
70W Max |
Installation style |
1)Uses install bracket, level or plumb (Accessories contains standard install bracket) 2) VESA 75mm and 100mm 3)Consumer installs style since designer behind |
OSD control |
Press key :AUTO, +, POWER, -, MENU |
Hong Mo Ping type |
Function : lighting power, contrast, revise automaticly, phase, clock, line ground position, language, function sets up, diaplasis |
|
4MM surfaces sound wave (But under the necessity of choice thickness, prevent be dizzy and steel melt characteristic) |
Touch joint |
Meanwhile possess USB and RS232 joint |
Touch echo time |
≤10ms |
Recognize |
ETL, FCC, CE, RoHS |
Protect |
1 year free warranty |
|
Note : liquid crystal display relative parameter target according to adopt liquid crystal screen brand and model correspondence adjust |
Main featurers:
LCD panel with wide temperature can work 24hours.
Long lasting product cycle-enclosure controlled by Wivitouch specifications
Future generation panels p
hased-in without external changes
High quality panel with high brightness,high contrast ratio and broad viewing angle
Application:
Gaming Machine
Kiosk
Industry Control
Medical Treatment
POS.ATM.Media player.Etc
This monitor also includes support for both DVI and VGA input connectors. Drop this into your kiosk and never worry about external changes to the chasis for your production. Open frame monitor being used in embedded displays are becoming a key component for a variety of applications. Control panels / touch controls for industrial test equipment, seismic monitoring systems, ATM bank machines, and vending machines are a just a few examples. LCD monitors have also found its way into digital signage solutions such as freestanding self service kiosks.
LCD TouchMonitor,Openframe Touch Monitor,Industry Touch Monitor,Gaming machine Touch Monitor,Kiosk, Interactive touch foil(Touch Thru Glass,Touch Film), LCD touch Panel PC/Computer/ bezel Monitor, Touch Tablet PC, Touch advertisement monitor, Touch advertising display, Touch Payment Kiosk, Touch solutions, Optical touch screen,Surface Capacitive Touch Screen Panel, Projection Capacitive touch screen panel and digital signage across all industries and have grown 30% year on year. Now our products have been widely used in games, finance, communication, electricity, transportation, hospitals, estates, travel and government lines, stations, 4S shops, museums, exhibitions, libraries, hotels and entrainment KTV.
Interested ? Welcome to send us inquiry !
