Electric Reach Truck

Name: Electric Reach Truck
Brand: SUNRISE
SKU: 104706571
Availability: InStock

US$ 6,000 - 12,000 MOQ: 1 Piece

Key Specifications

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

SUNRISE

Guangzhou Sunrise Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB GUANGZHOU

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shanghai, China

Brand Name SUNRISE

Model Number MF15/75

Type Powered Pallet Truck

Power Souce AC Motor

Rated Loading Capacity 1500kg

Max. Lifting Height 7200mm

Min. Lifting Height 80mm

Fork Length 1070mm

Fork Width 100mm

Overall Dimensions 2266x1098x2320mm

Certification CE

After-sales Service Provided Overseas third-party support available

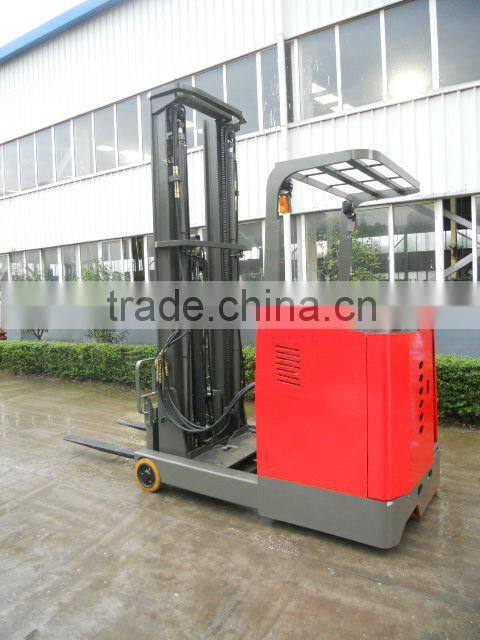

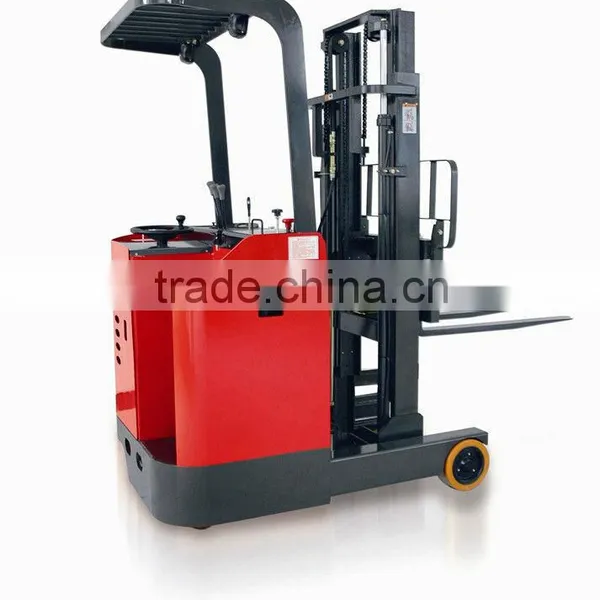

Electric Reach Truck

48V AC Driving Motor
Max Lift Height:7200 MM
Max Loading Capacity:2500 kg

Descriptiom Model No.	TF15-30	TF20-30	TF25-30
Rated Capacity (KG)	1500	2000	2500
Operate Type	Stand-on	Stand-on	Stand-on
Max. Lifting Height (MM)	3000	3000	3000
Min. Turning Radius(MM)	1625	1965	1965
Min. Stacking Aisle---mm (1000*1000 Pallet)	2622	2895	2895
Max Travel Speed km/h-laden/unladen	7.5/8.5	7.0/8.0	7.0/8.0
Load center MM	500	500	500
Fork Dimensions-L/W/T---mm---8.	107010035	107010045	107010045
Max. Gradeability ---%	10	10	10
Lifting Speed (MM/S)-laden/unladen	117/243	110/243	110/243
Overall Length (MM)	2266	2468	2468
Overall Width (MM)	1098	1258	1258
Height-Overhead guard--mm	2320	2320	2320
Height---Mast Lowered(MM)	2080	2084	2084
Height-Mast Extended w/ Load-Backrest -mm	3885	3875	3875
Height--Free Lift --mm	100	100	100
Tilt Angle----Upward/Downward--deg.	3/5	3/5	3/5
Fork Spread Range(MM)	220-662	247-780	247-780
Reach Stroke	560	685	685
Min Ground Clearance--mm	80	80	80
Wheel Type	Polyurethane Solid Tyre
Driving Wheel (MM)	Φ343×108	Φ343×108	Φ343×108
Balance Wheel (MM)	Φ180×76	Φ180×76	Φ180×76
Front Wheel (MM)	Φ267×114	Φ267×114	Φ267×114
Battery V/AH- "TONGBA"BRAND	48V /300 AH	48/400AH	48V/400 AH
Service Brake	MECH.
Parking Brake	MECH.
Charger-Intelligent	48V /40 A	48V/50A	48 V/50 A
Driving Motor (KW)	5.5 (AC)	5.5 (AC)	5.5(AC)
Lifting Motor (KW)	6.3	7.5	7.5

OPTIONAL:	FAAM Battery, ATTCHMENTS(Sideshifter........)



1.Advanced Performance Control:	1). Outstanding Stability in motion;
	2).More Econmoical Maintenance -Forward battery loading/side battery loading; Brushless motor;
	3).Improved Inching Operation;
	4).Energy Saving Design---Braking Regeneration,switchback Regeneration,Accelerator off Regeneration;
2.Advanced Safety	1).Reinforced Overhead guard and rear frame;
	2). Automatic Suspension as standard equipment;
	3). Neutral Safety function;
3. Advanced Comfort	1). Provide a wide visibility for enhanced operation;
	2).Small-dismeter Steering wheel;
	3).Enlarged operator space;
	4).Mast Soft Landing and shock absorption function;
	5).Larger waist pad and brake pedal;
