Electric Order Picker MHA

Electric Order Picker MHA thumbnail-1
Electric Order Picker MHA photo-1
US$ 6,000 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
China
Brand Name:
SUNRISE
Contact Supplier Request Quote Chat Now
Guangzhou Sunrise Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin China
Brand Name SUNRISE
Model Number MHA1030/1040/1045
Type Powered Pallet Truck
Power Souce AC Motor
Rated Loading Capacity 600/1000/8000kgs
Max. Lifting Height 3000/4000/4500mm
Min. Lifting Height 30mm
Fork Length 930mm
Fork Width 700mm
Overall Dimensions 2536*1080
Certification CE
After-sales Service Provided Overseas third-party support available

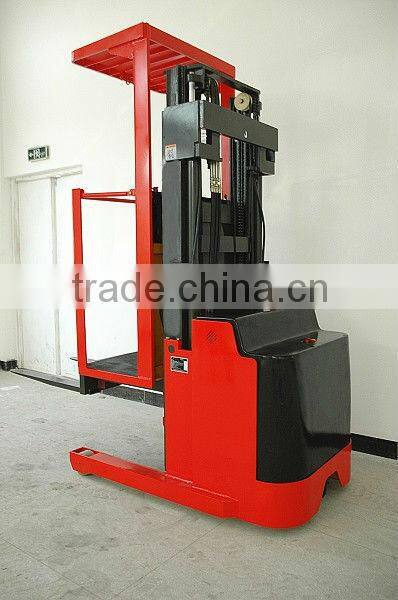

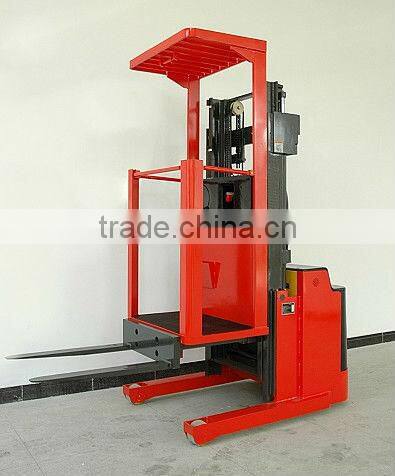

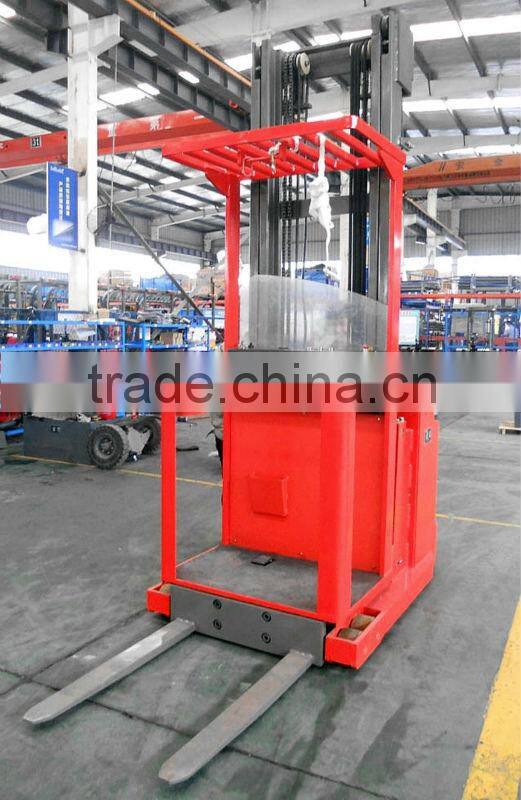

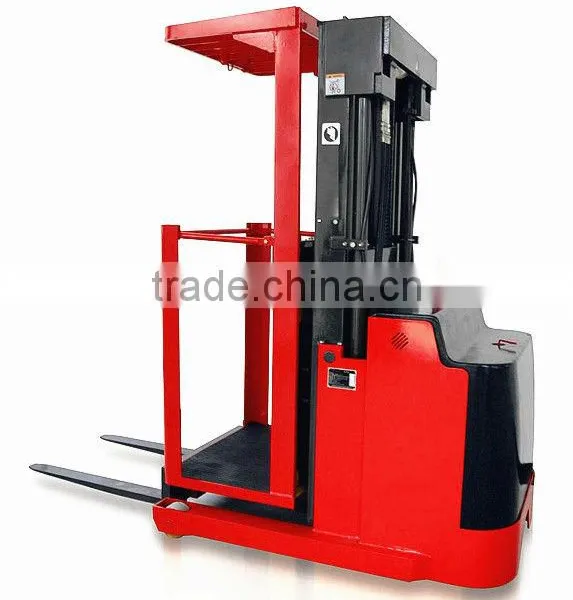

Electric order picker MHA

Description:



High Level Order Picker
1. The cover board with direction display, easy to know the driving direction even in high-order position;
2. The Vehicle have warning light, and safety belt, to ensure the safe driving;
3. Mast Buffering function;
4. The high level order picker including automatic high level order picker and semi-automatic high level order picker;
5. MHA Series High level order picker, rated load capacity: 1000kg, max lift height:4500mm
6. With driving direction display, easy to know the direction even in high level;
7. With driving alarm and safety belt;

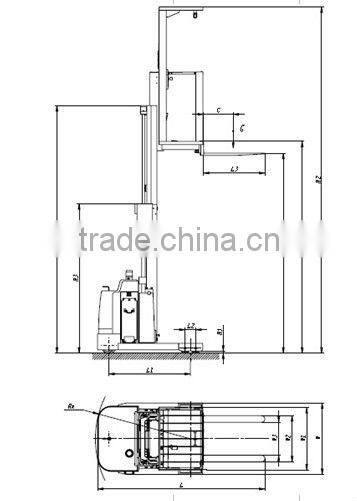

Descriptiom
Model No.
MHA1030
MHA1040
MHA1045
Operation Type
Stand-on
Stand-on
Stand-on
Rated Load Capacity (KG)
1000
8000
600
Load center MM
450
Max Lift Height (mm)--H
3000
4000
4500
Min. Road Clearance- Fork(mm)--H
35
35
35
Max./Min.Height-Operation Compartment (mm)--H1
3205/215
4205/215
4705/215
Max./Min.Height-Overhead Guard (mm)--H2
5237/2247
6237/2247
6737/2247
Height-Mast Lowered (mm)-H3
2260
2760
3010
Height-Mast Extended (mm)-H4
3745
4745
5245
Min. Road Clearance (mm)-H5
30
Overall Length (mm)--L
2536
Front Wheelbase (mm)--L1
1235
Rear Wheelbase (mm)--L2
160
Length-Fork (mm)-L3
930
Overall Width (mm)--W
1080
Rear Tread (mm)--W1
942
Fork Width-Outer (mm)--W2
700
Fork Width-Inner (mm) --W3
600
Min Turning Radius (mm)-Ra
1440
Wheel Type
PU
Wheel Size-Drive (mm)
230*83.5
Rear Wheel(mm)
150*90
Banalce Wheel-(mm)
150*50
Travel Speed-Laden/Unladen-(km/h)
4/4.8
4/4.8
4/4.8
Lift Speed-Unladen-(mm/s)
100
100
100
Descent Speed-Unladen-(mm/s)
70-97
Gradeability-Laden/Unladen-%
/
Driving Motor (KW)
AC1.1
AC1.1
AC1.1
Lifting Motor (KW)
3
3
3
Steering Motor (KW)
0.75
0.75
0.75
Battery-V/AH
24/480
24/480
24/480
Charger V/A
24/70
24/70
24/70
Service Weight (with battery) KG
2340
2440
2490
WARRANTY:
1. 12 month for frame,pump,controller,motor with right operation;
2. 6 months for battery and changer;
3. easy-broken items not in our responsibility,like wheel,bearing,carbon brush, friction disk,ignition switch,wire,plastic parts etc;
4. Remark: The above price is based on a full container. It includes battery and charger. Validity :30 days
5. Prodution Time:30-35 days Payment:T/T 40% deposit in advance,the balance before shipment / L/C at sight
