Home > Transportation > Forklifts & Parts > Forklift > 4-Direction Reach Truck MFB

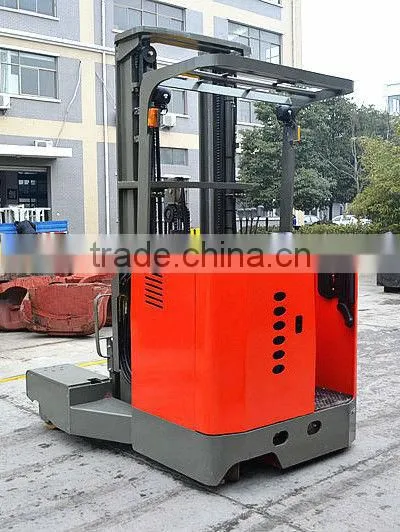

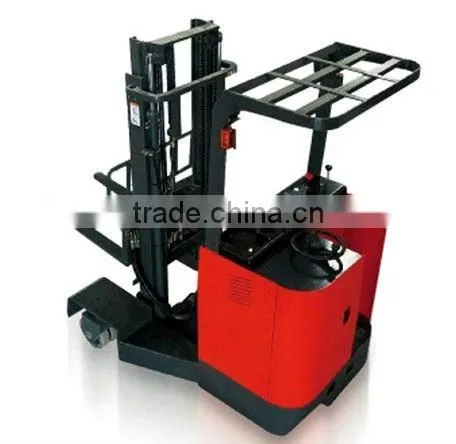

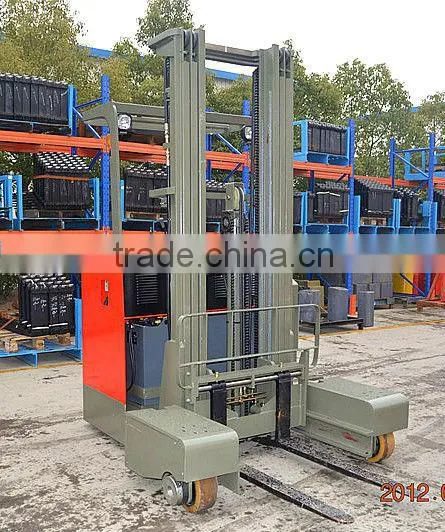

4-Direction Reach Truck MFB

Name: 4-Direction Reach Truck MFB
Brand: SUNRISE
SKU: 104706627

US$ 10,000 - 15,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

China

Brand Name:

SUNRISE

Contact Supplier Request Quote Chat Now

Guangzhou Sunrise Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin China

Brand Name SUNRISE

Model Number MFB15-60

Type Powered Pallet Truck

Power Souce AC Motor

Rated Loading Capacity 1500-6000kgs

Max. Lifting Height 3000-6000mm

Min. Lifting Height 80mm

Fork Length 1070mm

Fork Width 100mm

Overall Dimensions 2240*1398*2080

Certification CE

After-sales Service Provided Overseas third-party support available

4-Direction reach truck MFB

use for long material

Description:

AC Driving system, hydraulic steering;
Maximised Storage Capacities
Reduced handling times
Reduced costs
Less damage to product or property
MFB 4-direction reach truck with 4 direction changing and moving;
Rated load capacity: 2500kg;
Max lift height: 7200mm.
The user-friendly display allows you to tare off containers up to 100% of the scale range or you can input the known tare weight of a loaded.
Made stronger than the original truck.
All our weighing machines are made using high quality load cells that have a very good repeatability.

Description Model No.	MFB15-30	MFB15-60
Rated Capacity (KG)	1500	1500
Operate Type	Stand-on	Stand-on
Max. Lifting Height (MM)	3000	6000
Max Travel Speed km/h-laden/unladen	7.5/8.5	7.5/8.5
Load center MM	500	500
Fork Dimensions- L/W/T---mm	107010035	107010035
Lifting Speed (MM/S)-laden/unladen	117/243	117/243
Side-travel Speed -km/h	5	5
Overall Length (MM)	2333	2393
Overall Width (MM)	1514	1682
Height-Overhead guard--mm	2320	2320
Height---Mast Lowered(MM)	2080	2679
Height-Mast Extended w/Load-Backrest -mm	3885	6885
Height--Free Lift--mm	100	2090
Tilt Angle----Upward/Downward--deg.	3/5	3/5
Fork Spread Range(MM)	220-662	247-780
Reach Stroke	630	570
Min Ground Clearance--mm	80	80
Wheel Type	Polyurethane Solid Tyre
Driving Wheel (MM)	Φ343×108	Φ343×108
Balance Wheel (MM)	Φ180×76	Φ180×76
Front Wheel (MM)	Φ267×114	Φ267×114
Battery V/AH-	48V /300 AH	48V/300 AH
Service Brake	Electromagnetic
Parking Brake	Electromagnetic
Charger-Intelligent	48V /40 A	48 V/40 A
Driving Motor (KW)	5.5 (AC)	5.5(AC)
Lifting Motor (KW)	6.3	6.3
