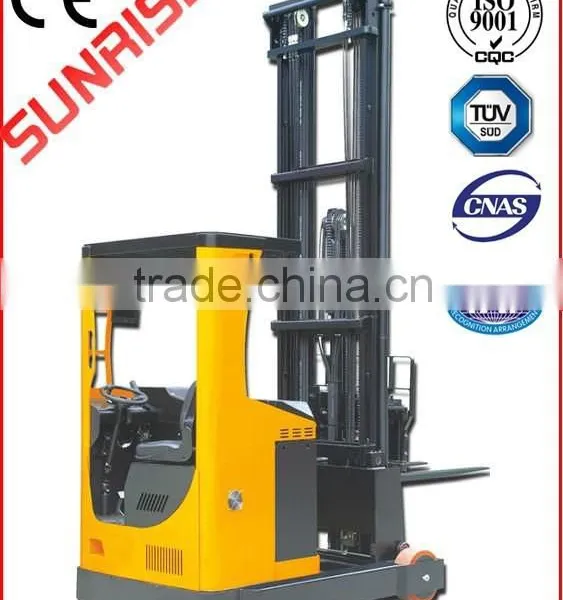

Max 9500mm 2ton, CQD20H High Lift Reach Stacker

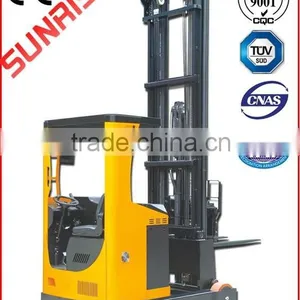

Max 9500mm 2ton, CQD20H High Lift Reach Stacker thumbnail-1
Max 9500mm 2ton, CQD20H High Lift Reach Stacker photo-1
US$ 18,500 - 29,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
Sunrise
Contact Supplier Request Quote Chat Now
Guangzhou Sunrise Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Guangdong, China
Brand Name Sunrise
Model Number CQD20H
Type Powered Pallet Truck
Power Souce DC Motor
Rated Loading Capacity 2000kgs
Max. Lifting Height 9500mm
Min. Lifting Height 50mm
Fork Length 1070mm
Fork Width 928mm
Overall Dimensions 1450x1150x2440mm
Certification CE
After-sales Service Provided Overseas third-party support available

Reach stacker CQD20H

Max 9500mm 2ton, CQD20H high lift Reach stacker

Mechanical brake and motor braking at the same time, extending the service life of the brake
Advanced MOSTFET control system, so precise forklift operator
Hydraulic power steering system that allows flexible and lightweight steering
Large-capacity battery 48V/400AH
Turning radius is small, the fork can move back and forth, and before and after the tilt, you can 2.8M comfortable working within a wide channel
Large solid forklift chassis to ensure sufficient stability of the forklift truck
Speed limit with a high-altitude safety features to ensure the safety of high-altitude operations more convenient to drive operational
Spacious and comfortable cab, and adjustable seat
Double electrical control, cargo lift and forklift driving could achieve stepless speed regulation
Full hydraulic power steering system that allows flexible and lightweight steering
Integrated design of drive and steering
Use of high-quality imported the door frame, to improve shelf life and stability of the door



reach stacker



Features Manufacturer"s type designation   CQD20H
Drirve:electric,diesel pertol,fuel gas   electric
Operator type   seated
Load capacity/rated load Q(kg) 2000 2000 2000
Load centre distance c(mm) 500 500 500
Load distance,centre of drive axle to fork x(mm) 380 380 380
Wheelbase Y(mm) 1500 1500 1500
Weight Service weight kg 4100 4150 4240
Axle loading,unladen front/rear kg 2500/1600 2540/1610 2580/1660
Axle loading,fork advanced,laden front/rear kg 673/5427 714/5436 786/5454
Axle loading,fork retracted,laden front/rear kg 2266/3834 2305/3845 2346/3894
Wheel Chassis Tyre   polyurethane
Tyre size,front   406 406 406
Tyre size rear   340 340 340
Wheels,number front rear(x=driven wheels)   2,1 2,1 2,1
Tread,front b10(mm)
Thread,rear b11(mm) 1324 1324 1324
Size Tilt of mast/fork carriage forward/backward α,β (Grad) 3,5 3,5 3,5
Height,mast lowered h1(mm) 3390 3590 3890
Free lift h2(mm) 2700 2900 3200
Lift h3(mm) 8000 8600 9500
Height,mast extended h4(mm) 8800 9400 10300
Height of overhead guard(cabin) h6(mm) 2200 2200 2200
Seat height/stand height h7(mm) 1068 1068 1068
Height of crura h8(mm) 270 270 270
Overall length l1(mm) 2440 2440 2440
Length(barring fork) l2(mm) 1950 1950 1950
Overall width b1(mm) 1450 1450 1450
Fork dimensions s/e/l(mm) 50/100/1070 50/100/1070 50/100/1070
Fork carriage DIN 15173,class/type A,B   A A A
Fork-carriage width b3(mm) 928 928 928
Distance between fork-arms b5(mm) 780 780 780
Distance between support arms/loading surfaces b4(mm) 1090 1090 1090
Reach distance l4(mm) 600 600 600
Ground clearance,laden,below mast m1(mm) 90 90 90
Ground clearance,centre of wheelbase m2(mm) 80 80 80
Aisle width for pallets 1000x1200 crossways Ast(mm) 2800 2800 2800
Aisle width for pallets 800x1200 lengthways Ast(mm) 2700 2700 2700
Turning radius Wa(mm) 1820 1820 1820
Specification Travel speed,laden/unladen Km/h 8/8.3 8/8.3 8/8.3
Lift speed,laden/unladen m/s 0.19/0.2 0.19/0.2 0.19/0.2
Lowering speed,laden/unladen m/s 0.5/0.4 0.5/0.4 0.5/0.4
Reaching speed,laden/unladen m/s 0.1/0.1 0.1/0.1 0.1/0.1
Gradeability,laden/unladen % 10,12 10,12 10,12
Max.gradeability,laden/unladen % 12,15 12,15 12,15
Acceleration time,laden/unladen s 4.8,4.3 4.8,4.3 4.8,4.3
Service brake   Hydraulic
Motor Drive motor rating S2 60 min kW 4 4 4
Lift motor rating at S3 15% kW 8.2 8.2 8.2
Battery voltage,nominal capacity K5 V/Ah 48/500 48/500 48/500
Battery weight Kg 860 860 860
Battery dimensions l/w/h mm 1220X350X750 1220X350X750 1220X350X750
additional data Operating pressure for attachments bar 170 170 170
Sound level at the driver"s ear acc.to DIN 12053 dB(A) 70 70 70



Max 9500mm 2ton, CQD20H high lift Reach stackerMax 9500mm 2ton, CQD20H high lift Reach stackerMax 9500mm 2ton, CQD20H high lift Reach stackerMax 9500mm 2ton, CQD20H high lift Reach stacker

....
