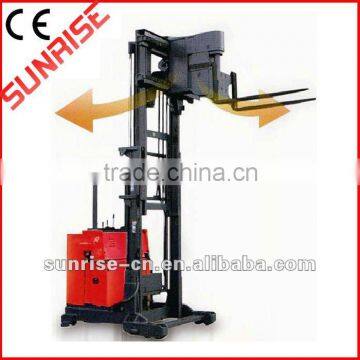

3-way electric stacker

Name: 3-way electric stacker
Brand: Sunrise
Availability: InStock

FOB Price

USD $10,000 - $16,000 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	China
Brand Name	Sunrise	Model Number	STC
Type	Other, electric pallet stacker	Power Souce	AC Motor
Rated Loading Capacity	1000kg	Max. Lifting Height	7500mm
Min. Lifting Height	50MM	Fork Length	1070mm
Fork Width	100mm	Overall Dimensions	2720 * 1225 * 2090 mm
Certification	CE/ISO9001	After-sales Service Provided	Overseas service center available

3Way Electric Pallet Stacker

Maximum load capacity 1000kg, Maximum lifting height 7500kg, 48V AC driving motor for easy maintenance
AC power system with good performance, reliablility and easy maintenance.
Min.Aisle width: 1480mm
Fork Turning: 180^o

Standard equipped with:

1. Colored monitor with triplex mast

2. Guide wheel

3. Soft back cushion

4. Driving position display

1	Description	3-way pallet stacker
2	Model	TWF10-75
3	Loading Capacity Kg	750KG at 7.5M 1T at 6M
4	Lifting height mm	7500
5	Load center mm	500
6	Overall length mm	3595
7	Outer width of forks mm	260-800
8	Mast height(closed) mm	3740triplex mast
9	Overall width mm	1450
10	Min. width aisle mm	1480
11	Side shifter distance(1.1/1.2M pallet )mm	1160/1260
12	Fork rotation time(S/180° )	12
13	Fork side shift speed mm/s	240
14	Driving speed (Unload/Load) Km/h	8.0/7.0
15	Lifting speed Unload/load mm/s	315/180
16	Fork size mm	1070*100
17	Driving wheel mm	Φ 343× 108
18	Front wheel mm	Φ 140× 100
19	Balance wheel mm	Φ 180× 76
20	Total weight with battery	5180
21	Lifting motor Kw	10
22	Driving motor Kw	5.5(AC)
23	Battery V/AH	48/400
24	Charger V/A	48/50

....
