Electro Hydraulic Scissor Lift Platform

Electro Hydraulic Scissor Lift Platform photo-1
US$ 5,200 - 5,800 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SUNRISE
Model Number:
PW 15/50
Payment & Shipping
Payment Methods:
Port of Shipment:
GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name SUNRISE
Model Number PW 15/50
Lift Mechanism Scissor Lift
Lift Drive / Actuation Electric Motor
Power 1500w
Rated Loading Capacity 150kgs
Min. Lifting Height 700mm
Max. Lifting Height 5000mm
Table Size 1500x680mm
Overall Dimensions 1500x700x1020mm
Weight 600kgs
Certification ISO9001
Warranty 1 Year
After-sales Service Provided Overseas third-party support available

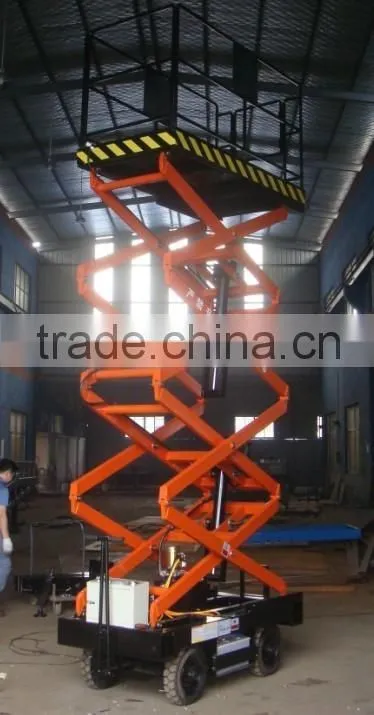

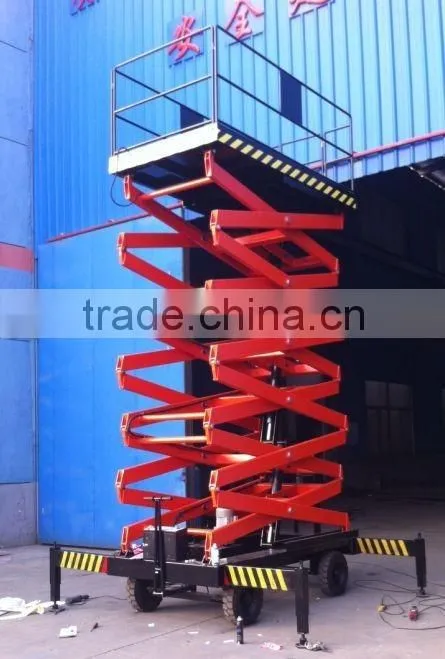

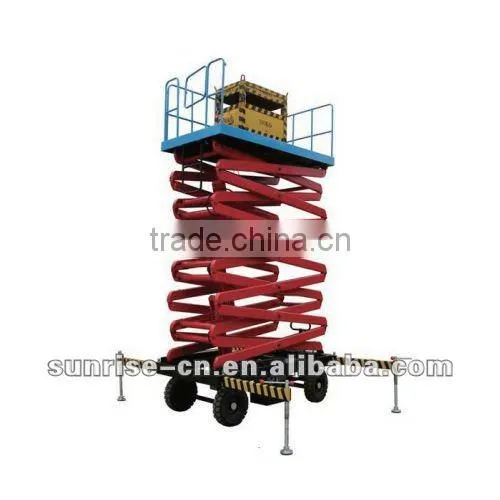

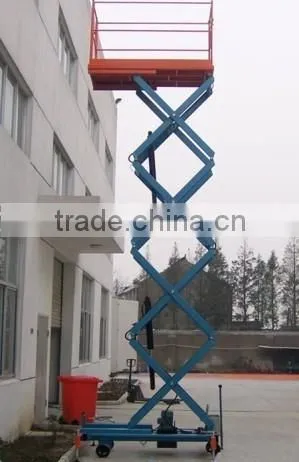

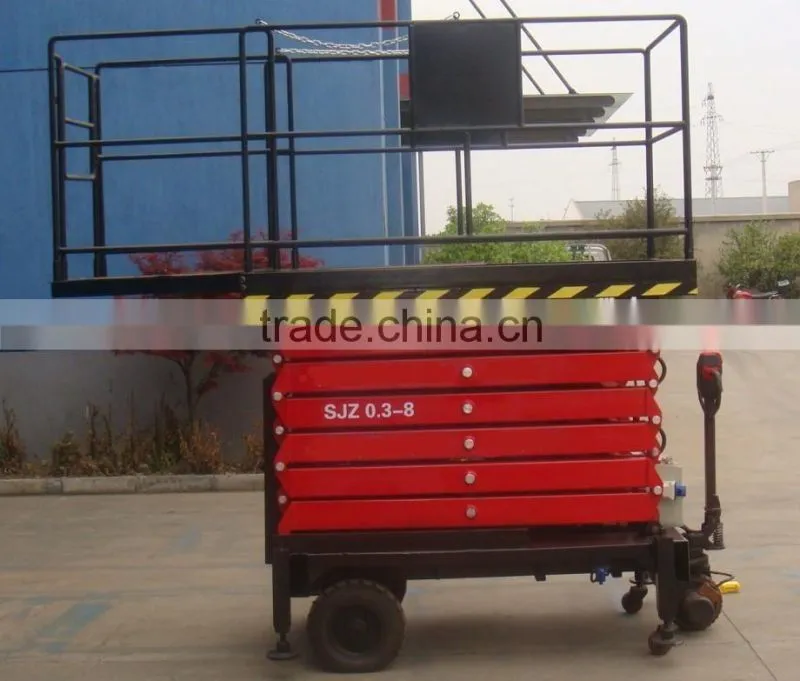

Electro hydraulic scissor lift platform





  • Movable,can be used inside or outside of building.
  • Ideal for personal aerial-work.
  • Heavy-duty cylinder with safety velocity fuse and pressure compensated flow control valve.
  • Heavey-duty power pack with pressure relief valve, check valve, down solenoid valve.
  • AC or DC power is available.









Model Loading Capacity Platform Height Lowest Height Lifting Time Voltage V Motor Kw Overall Size(mm) Weight
PW-15/50 150kg 5000mm 950mm 25s 380 1.5 1500x700x1020 600kg
PW-50/45 500kg 4500mm 850mm 30s 380 2 1500x700x1020 600kg
PW-30/60 300kg 6000mm 950mm 30s 380 2 1850x900x1020 700kg
PW-50/60 500kg 6000mm 950mm 32s 380 2 1850x900x1020 700kg
PW-60/72 600kg 7200mm 1400mm 66s 380 2.5 1850x900x1300 1000kg
PW-30/90 300kg 9000mm 1500mm 76s 380 2.5 2000x1000x1550 1200kg
PW-50/90 500kg 9000mm 1650mm 73s 380 2.5 2000x1000x1550 1200kg
PW-30/110 300kg 11000mm 1650mm 76s 380 2.5 2200x1200x1670 1500kg
PW-50/110 500kg 11000mm 1650mm 73s 380 3 2200x1200x1670 1500kg



.Electro hydraulic scissor lift platformElectro hydraulic scissor lift platformElectro hydraulic scissor lift platformElectro hydraulic scissor lift platform





Electro hydraulic scissor lift platformElectro hydraulic scissor lift platform
