Self-propelled Articulated Boom Lift
US$ 45,000 - 65,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
Sunrise
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Hydraulic Scissor Lift PlatformUS$ 5,200 - 5,800MOQ: 1 Piece -
Factory Price Towable Boom Lift Aerial Working Platform Telescopic Boom LiftUS$ 1,500 - 4,500MOQ: 1 Piece
-
Mobile Electric Scissor LiftUS$ 5,200 - 5,800MOQ: 2 Pieces
-
Factory Price 8m Portable Aluminum Aerial Work PlatformUS$ 1,500 - 4,500MOQ: 1 Piece
-
Aerial Work Platform (single Mast)US$ 1 - 1,000MOQ: 1 Piece
Condition
New
Place of Origin
Guangdong, China
Brand Name
Sunrise
Model Number
SRZZ18
Rated Loading Capacity(kg)
240kgs
Hoisting Speed
mm/s
Max Lifting Height
18000mm
Dimension(L*W*H)
8050x2450x2440mm
Loder Weight
230kgs
After-sales Service Provided
Overseas third-party support available

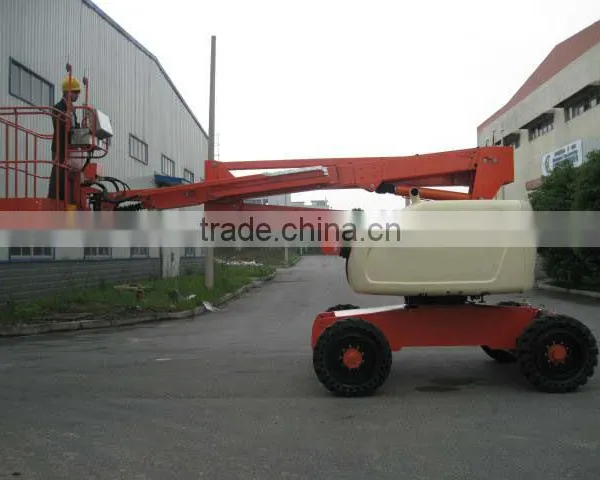

self-propelled articulated boom lift
1. It is a self-propelled articulated boom lift.
2. It can realize the lifting upwards, onwards, etc.
3. The two-wheel and four-wheel driving mode, diesel, electric motor, double power sources, etc. are optional.
4. The working height ranges from 12m to 26m.
5. The horizontal reach of the self-propelled articulated boom lift ranges from 7m to 13.3m.
| Parameters | ||||
| Model | SRZZ18 | SRZZ18Z | ||
| MEASUREMENTS | Metric system | British System | Metric system | British System |
| Lift capacity | 227kg | 500lbs | 227kg | 500lbs |
| Platform rotation | 180° | 180° | ||
| Turntable swing | 360°continuous | 360°continuous | ||
| Turntable tailswing | 0 | 0 | ||
| Travel speed - stowed | 8km/h | 5mph | 8km/h | 5mph |
| Travel speed -raised or extended | 5.6km/h | 3.5mph | 5.6km/h | 3.5mph |
| Gradeability -stowed (2WD) | 30% | 30% | ||
| Gradeability -stowed (4WD) | 45% | 45% | ||
| Turning radius - inside | 3.48m | 11ft5in | 3.48m | 11ft5in |
| Turning radius - outside e | 5.38m | 17ft8in | 5.38m | 17ft8in |

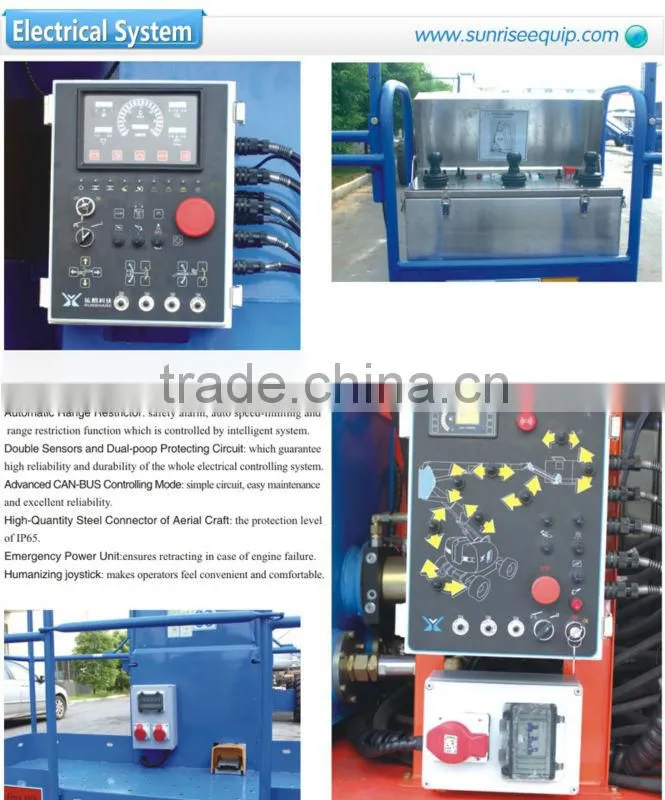

| System voltage | 12V DC Proportional | 12V DC Proportional | ||
| Solid tires | 355/55 D625 | 355/55 D625 | ||
| Power Configuration | ||||
| POWER | ||||
| Power source | Cummins B3.3NA-C60 4 60HP (45kw) | |||
| Perkins 400 61hp (45.5kw) | ||||
| Auxiliary power unit | 12V DC | 12V DC | ||
| Hydraulic oil tank capacity | 115.8L | 30.6gal | 115.8L | 30.6gal |
| Fuel tank capacity | 113.6L | 30gal | 113.6L | 30gal |
| Weight | ||||
| WEIGHT | ||||
| 4WD | 10047kg | 22150lbs | 10455kg | 23050lbs |
| Applicable standard: EN280, JG/T5101, Q/ADZV001-2008 | ||||
| Model | SRZZ18 | SRZZ18Z | |||
| Measurements | Metric system | British system | Metric system | British system | |
| Working height maximum | 20.12m | 66ft | 20.17m | 66ft2in | |
| Horizontal reach | 12.17m | 39ft7in | 12.1m | 39ft9in | |
| Platform height maximum | 18.42m | 50ft5in | 18.47m | 60ft7in | |
| Below ground reach | 7.16m | 23ft6in | 7.37m | 24ft2in | |
| A | Platform width-8ft model | 0.91m | 3ft | 0.91m | 3ft |
| B | Platform length -6ft model | 2.44m | 96ft | 2.44m | 96ft |
| C | Height-stowed | 2.45m | 8ft4in | 2.45m | 8ft4in |
| D | Length-stowed | 8.05m | 26ft5in | 8.83m | 28ft11in |
| E | Width | 2.44m | 8ft | 2.44m | 8ft |
| F | Wheelbase | 2.45m | 8ft | 2.45m | 8ft |
| G | Ground clearance-center | 39m | 1ft3.5in | 39m | 1ft3.5in |
....
