Electric Hydraulic Scissor Lift Platform

Electric Hydraulic Scissor Lift Platform thumbnail-1
Electric Hydraulic Scissor Lift Platform photo-1
US$ 5,200 - 5,800 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SUNRISE
Model Number:
SYJ0.3-9
Contact Supplier Request Quote Chat Now
Guangzhou Sunrise Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SUNRISE
Model Number SYJ0.3-9
Lift Mechanism Scissor Lift
Lift Drive / Actuation Electric Motor
Power 1500W
Rated Loading Capacity 300kgs
Min. Lifting Height 1780mm
Max. Lifting Height 9000mm
Table Size 1800*1000mm
Overall Dimensions 2000*1000*1780mm
Weight 1250kgs
Certification ISO9001
Warranty one year
After-sales Service Provided Overseas third-party support available

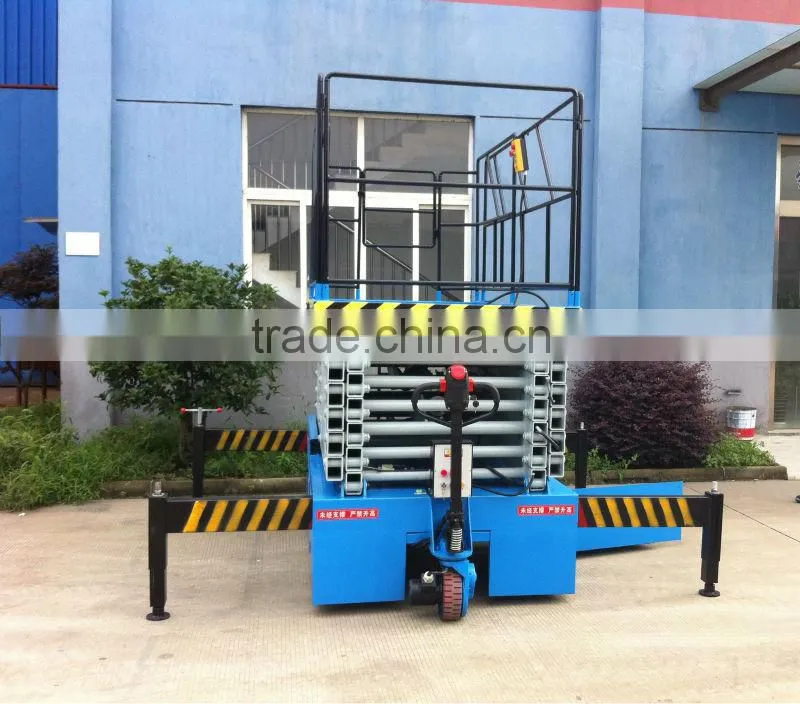

Electric hydraulic scissor lift platform



  • Movable,can be used inside or outside of building.
  • Ideal for personal aerial-work.
  • Heavy-duty cylinder with safety velocity fuse and pressure compensated flow control valve.
  • Heavey-duty power pack with pressure relief valve, check valve, down solenoid valve.
  • AC or DC power is available.



MODEL Min platform height
 mm		 Max platform height
 mm		 capacity
 kg		 Platform size
 L*W(mm)		 Voltage
 v		 Motor
 kw		 Weight
 kg
SJY0.3-3 870 3000 300 1400*700 380V/50HZ 1.1 420
SJY0.5-4.5 980 4500 500 1400*850 380V/50HZ 1.1 580
SJY0.5-5 980 5000 500 1400*850 380V/50HZ 1.1 620
SJY0.3-6 980 6000 300 1800*880 380V/50HZ 1.1 750
SJY0.5-6 980 6000 500 1800*880 380V/50HZ 1.1 820
SJY0.3-7.5 1250 7500 300 1800*1000 380V/50HZ 1.5 1150
SJY0.3-9 1350 9000 300 1800*1000 380V/50HZ 1.5 1250
SJY0.5-9 1600 9000 500 1800*1000 380V/50HZ 1.5 1300
SJY1.0-9 1780 9000 1000 2000*1200 380V/50HZ 2.2 1860
SJY0.3-11 1600 11000 300 2100*1150 380V/50HZ 1.5 1380
SJY0.5-11 1600 11000 500 2100*1150 380V/50HZ 1.5 1450
SJY0.3-12 1780 12000 300 2450*1350 380V/50HZ 2.2 1050
SJY0.5-12 1780 12000 500 2450*1350 380V/50HZ 2.2 2100
SJY1.0-12 1860 12000 1000 2450*1350 380V/50HZ 3 2360
SJY0.3-14 1960 14000 300 2450*1350 380V/50HZ 3 2500
SJY0.5-14 1960 14000 500 2450*1350 380V/50HZ 3 2550
SJY0.3-16 1980 16000 300 2750*1500 380V/50HZ 3 2600
SJY0.5-16 1980 16000 500 2750*1500 380V/50HZ 3 2680

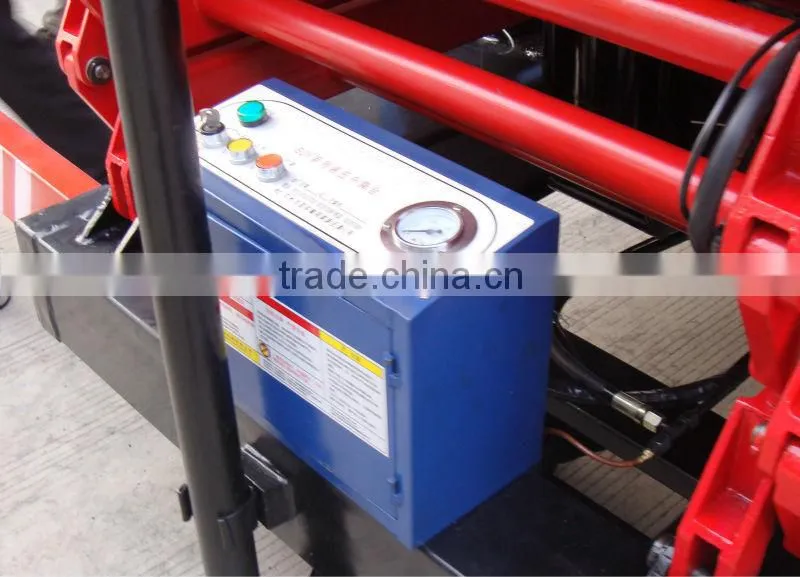

CONTROL PANEL



Electric hydraulic scissor lift platformElectric hydraulic scissor lift platform





Electric hydraulic scissor lift platform



WITH DRIVING WHEEL



Electric hydraulic scissor lift platform





Electric hydraulic scissor lift platformElectric hydraulic scissor lift platformElectric hydraulic scissor lift platform

....
