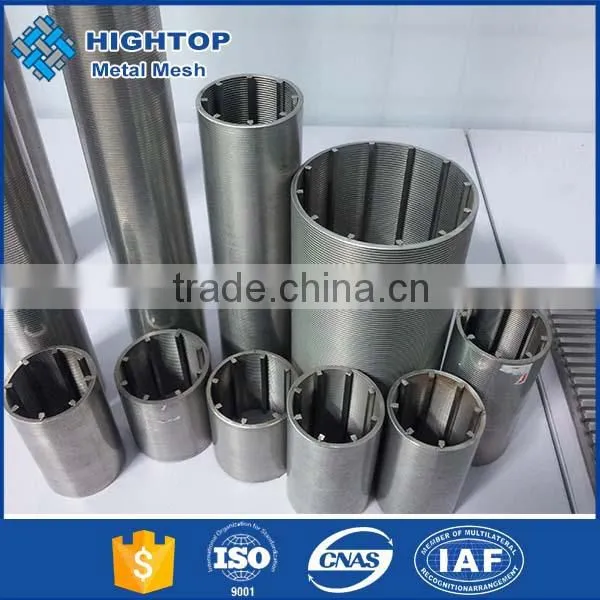

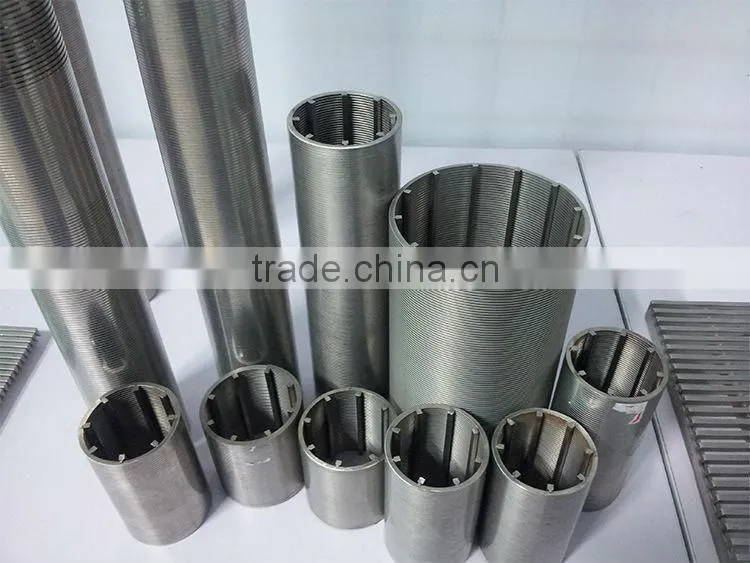

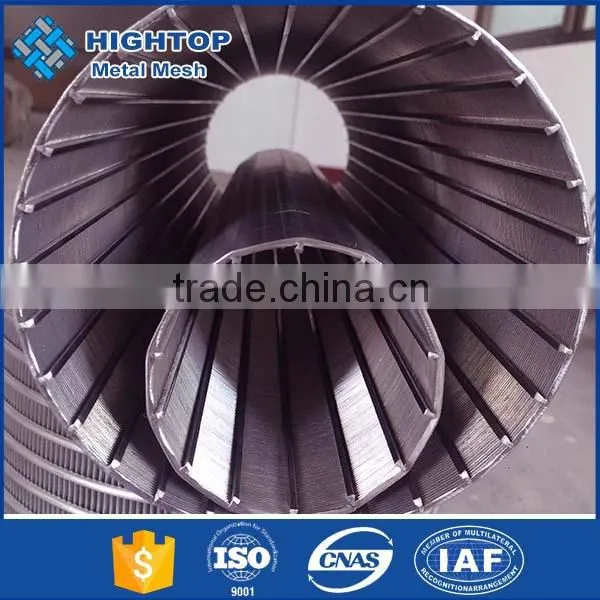

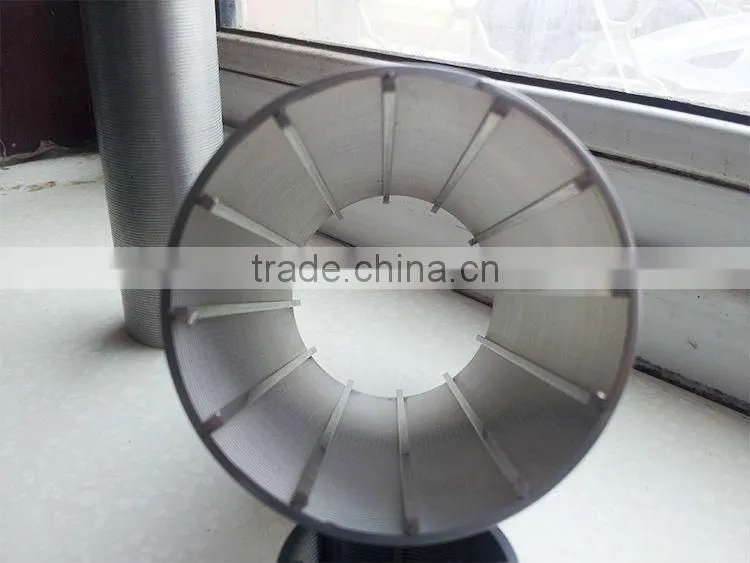

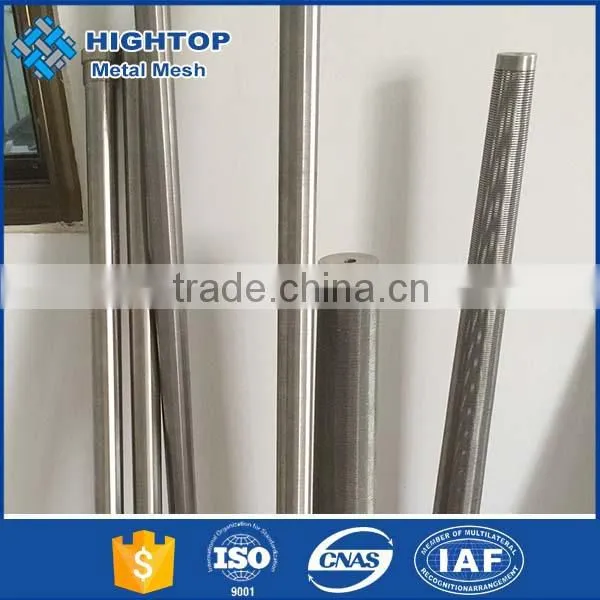

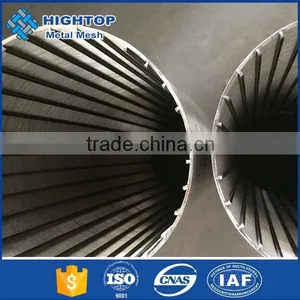

Water well screen for well drilling

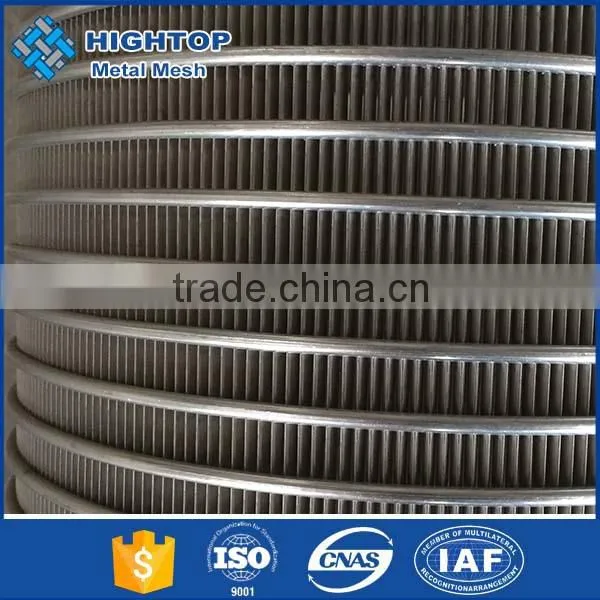

Water well screen is made during simultaneous winding of specially profiled working wires on a spiral and welding them to carrying wires placed along the tube. This technology allows the production of wedge wire screens when very high gap precision and screen resistance are required. Due to using the newest welding technology we can obtain various distances between carrying wires, very accurate and repeatable gap and therefore produce screens according to customer’s particular requirements.
Profile combinations
| Surface profiles | Support profiles | Min.diam. in mm | Min. slot width in mm |
| 10S | Q25 | 21 | 0.10 |
| 11S | Q20 or Q25 | 23 | 0.030 |
| 12S | 22S | 30 | 0.050 |
| 12S | Q25 | 23 | 0.030 |
| 12S | Q35 | 30 | 0.050 |
| 18S | 22S or Q35 | 30 | 0.050 |
| 18S | Q25 | 25 | 0.030 |
| 18S | D45 | 300 | 0.20 |
| 18S | 10x3 | 300 | 0.20 |
| 22S | 22S or Q35 | 45 | 0.10 |
| 22S | D45 or 10x3 or 25x3 | 300 | 0.20 |
| 28S | Q35 | 215 | 0.20 |
| 28S | D45 or 10x3 or 25x3 | 300 | 0.20 |
| 34S | Q35 | 300 | 0.20 |
| 34S | D45 | 300 | 0.20 |
| 34S | 10x3 or 25x3 | 300 | 0.20 |
| 42S | Q35 or D45 | 300 | 0.20 |
| 42S | 10x3 or 25x3 | 300 | 0.20 |

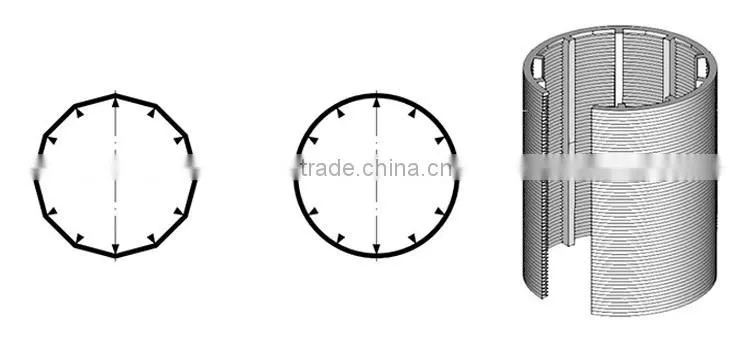

Diameters
| Outside diameter in mm | Number of support profiles |
| 30 | 8 |
| 45 | 10 |
| 57 | 12 |
| 70 | 18 |
| 85 | 18 |
| 97 | 20 |
| 110 | 24 |
| 137 | 30 |
| 164 | 36 |
| 215 | 48 |
| 268 | 48 |
| 305 | 40 |
| 380 | 48 |
| 460 | 60 |
| 510 | 64 |
| 625 | 80 |
| 914 | 180 |

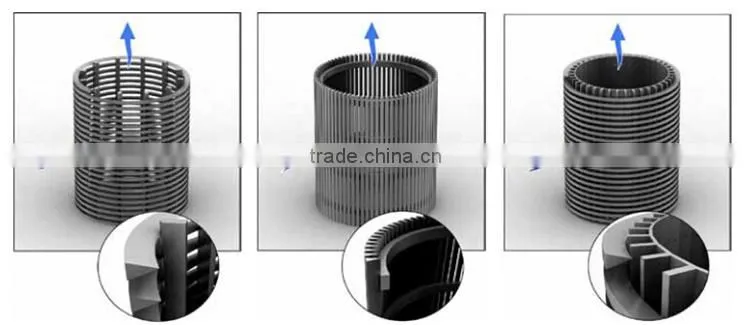

from inside to outside
from outside to inside
HIGHTOP is professional manufacturer in China. We have advanced equipment. Our material imported from Taiwan and France. Our round tubes have gained reputation from many customers. Our round tubes have advantages of good welding, slot, material of wedge wire. We have professional and experienced engineer, will do the best according to your requirement.
