Self-Cleaning "Sandwich" Screens of separator

Name: Self-Cleaning "Sandwich" Screens of separator
Brand: Gaofu
Price: USD $665 - 800 / Piece

FOB Price

USD $665 - $800 / Piece

100 Pieces(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port Tianjin/shanghai

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Henan, China	Brand Name:	Gaofu	Model Number:	S49-1200
Usage:	Other, separating	Type:	Filter Elements	Material:	Other, SUS304 Stainless steel or 316L, rubber and silicon ball
Hole Shape:	Square	Length:	1.6*1.6m

Packaging Details

paper box or wodden box

Product Description

Self-Cleaning "Sandwich" Screens of separator

Product Description:

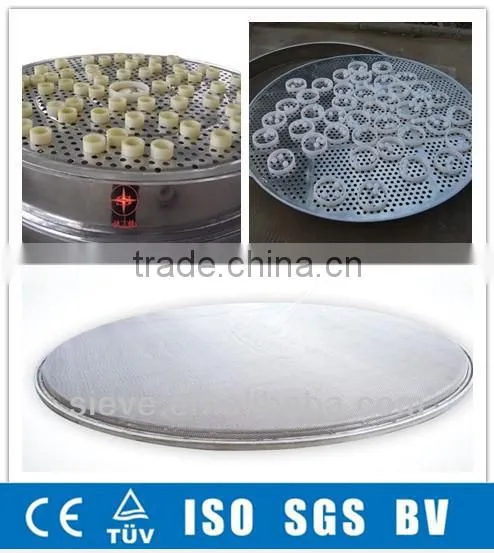

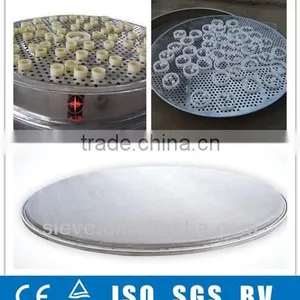

Gaofu Sandwich Screens are comprised of a working mesh on top of the tension ring, and a coarser mesh (support screen) is attached to the bottom of the ring with sliders and balls placed in-between creating a sandwich screen. The sliders and balls will bounce off of the support screen and tap the top screen, dislodging near size particles or fibers that tend to blind the screen and reduce screening area.

Sandwich screens can be provided with all grades of stainless, nylon and polyester meshes. Gaofu also manufactures a premier lightweight sandwich screens that feature synthetic meshes for your working screen and support screen. The characteristics of synthetic meshes aid in the deblinding process compared to stainless steel mesh. All sandwich screens, including the synthetic meshes can be equipped with our Magnumtechnology. Sizes range from 600mm-2000mm diameter screens.

Features of Self-Cleaning "Sandwich" Screens

1. Sandwich screens are available with sliders and/or balls creating
superb cleaning action across the screen

2. The ease of installation and removal - no center tie down necessary

3. Less vertical amplitude is needed with sandwich screens versus
traditional cleaning kits allowing for fewer motor weights and reduced
stress on motors

4.Less vertical amplitude will increase screen life

5. Eliminates the additional height of a ball tray assembly

6. Sandwich screens run at much lower decibel levels than slider self
cleaning kits

Packaging & Shipping

Packaging : Free fumigation wooden cases ;

Shipping : DHL , EMS , FedEx or Shipping ;

Our Factory :

Company Profile

Xinxiang Gaofu Machinery Co., Ltd.

Xinxiang Gaofu Sieving Machinery Co., Ltd. specializes in manufacturing vibration screens and vibrating sieves. To solve sieving problems in all fields, we can manufacture all kinds of vibrating screens to meet the different needs of customers.

Thanks to production equipment, strong technical capabilities, improved detection means and strict managing system, we have enjoyed good reputation.
our company has attained ISO9001:2000 certification and CE Certification. Our products sell well throughout China and are exported to North America, West Europe, Southeast Asia and other countries and regions.

Do you want to improve your product quality? Do you want your products to become more competitive? Choosing Xinxiang Gaofu Sieving Machine Co., Ltd.! We will be your friend in the way to success! And you will create a shiny future in 2014!

Please visit our website: www.gaoful.com.

Our tenet: "Honest Service, the Highest Quality".To solve sieving problems in all fields, we can manufacture all kinds of vibrating screens to meet the different needs of customers.
