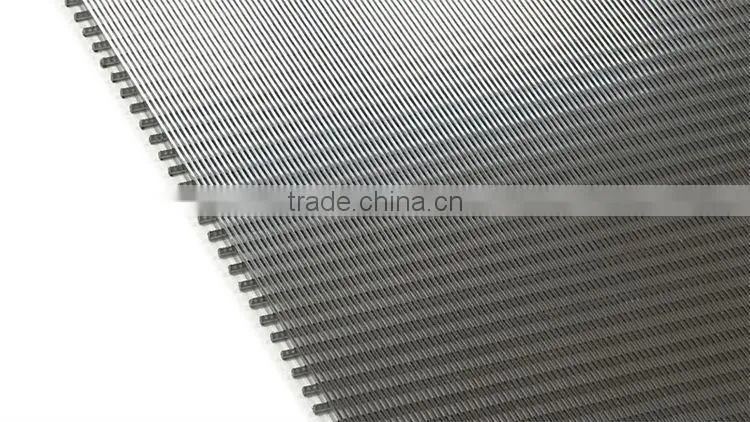

Supplying stainless steel wedge wire screen for construction

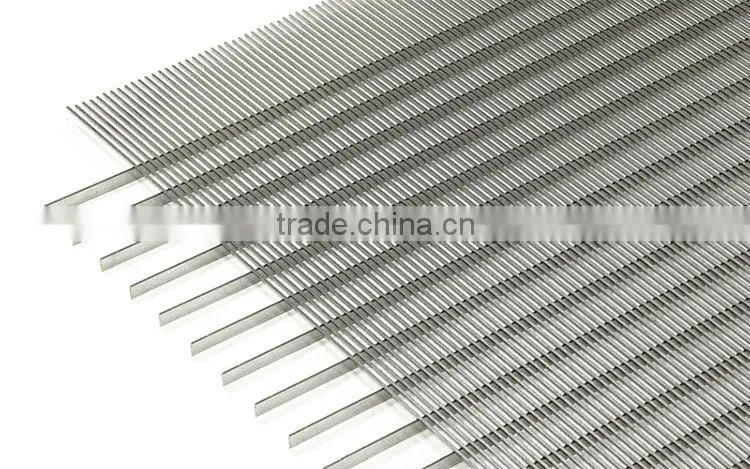

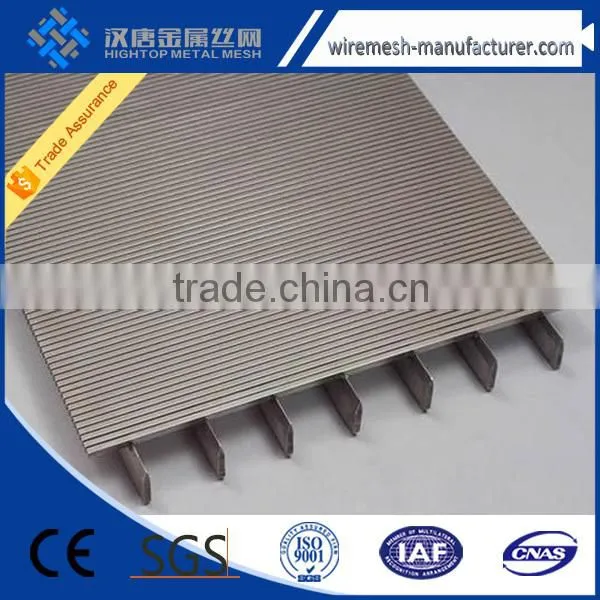

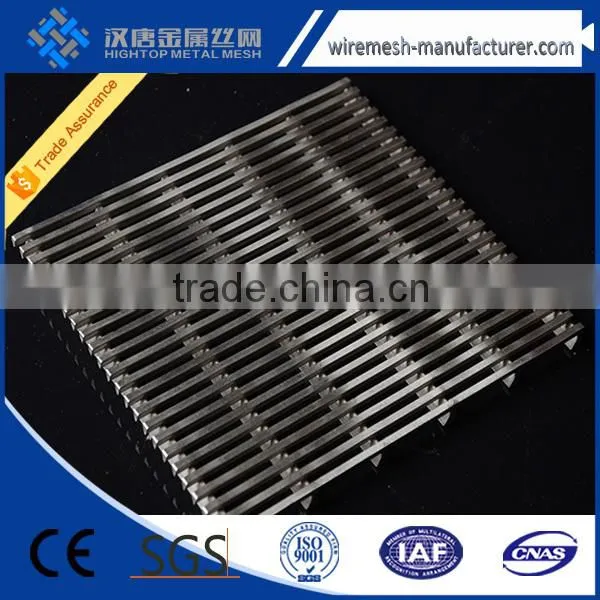

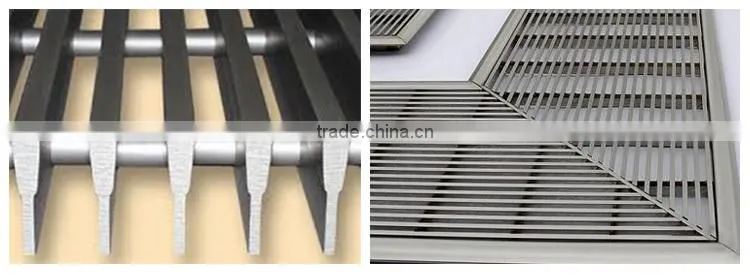

Wedge wire Screen have the structure of the surface profiles are welded onto support profiles at each intersection at 90°angles.
Surface profiles |
Support profiles |
Min.slot opening |
Min.pitch in mm |
Max.pitch in mm |
10S |
Q25 |
0.030 |
5 |
17 |
11S |
Q25 |
0.030 |
5 |
17 |
12S |
Q35 |
0.050 |
8.5 |
25 |
18S |
Q35 |
0.050 |
8.5 |
25 |
18S |
10x3/25x3 |
0.200 |
17 |
25 |
22S |
Q25 |
0.100 |
8.5 |
22 |
22S |
10x3 |
0.200 |
17 |
25 |
28S |
Q35/D45/25x3 |
0.200 |
17 |
25 |
34S |
Q35/10x3/25x3 |
0.200 |
17 |
25 |
42S |
Q35/10x3/25x3 |
0.200 |
17 |
25 |
42S |
38x3 |
0.200 |
25 |
25 |
Flat Welded Screens’ Standard constructions
A combination of different support profiles and pitches within one flat screen is possible
Variable spacing between support wires in one screen
Curved screens; curve direction and filtration direction are to be determined by the customer
Frames and reinforcements can be designed and calculated on request, provided that we know the temperature, supports and differential pressure
Flat Welded Screens Finishing
Standard finish:
flattening
cutting of width and length of Flat Welded Screen
Optional finish:
deburring
degreasing and pickling
post-machining for tighter tolerances
Please no hesitate to contact with me!!
