Industrial Wedge Wire steel screen for filtration
Industrial Wedge Wire steel screen for filtration

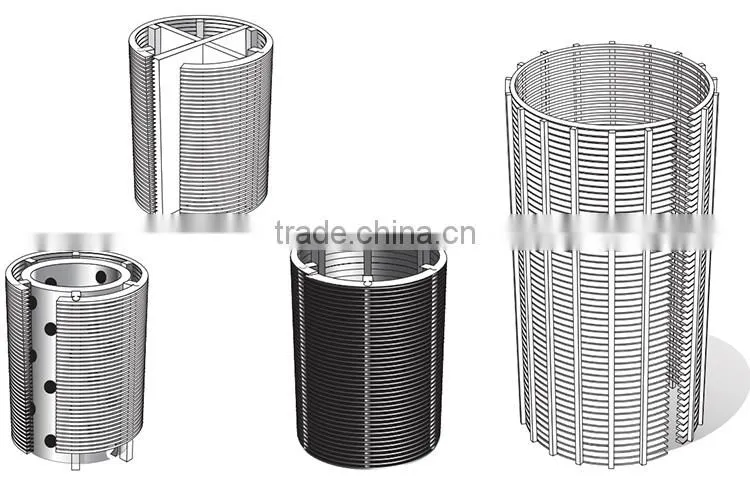

Wedge wire screen are made during simultaneous winding of specially profiled working wires on a spiral and welding them to carrying wires placed along the tube. This technology allows the production of wedge wire screens when very high gap precision and screen resistance are required. Due to using the newest welding technology we can obtain various distances between carrying wires, very accurate and repeatable gap and therefore produce screens according to customer’s particular requirements.
Profile combinations
| Surface profiles | Support profiles | Min.diam. in mm | Min. slot width in mm |
| 10S | Q25 | 21 | 0.10 |
| 11S | Q20 or Q25 | 23 | 0.030 |
| 12S | 22S | 30 | 0.050 |
| 12S | Q25 | 23 | 0.030 |
| 12S | Q35 | 30 | 0.050 |
| 18S | 22S or Q35 | 30 | 0.050 |
| 18S | Q25 | 25 | 0.030 |
| 18S | D45 | 300 | 0.20 |
| 18S | 10x3 | 300 | 0.20 |
| 22S | 22S or Q35 | 45 | 0.10 |
| 22S | D45 or 10x3 or 25x3 | 300 | 0.20 |
| 28S | Q35 | 215 | 0.20 |
| 28S | D45 or 10x3 or 25x3 | 300 | 0.20 |
| 34S | Q35 | 300 | 0.20 |
| 34S | D45 | 300 | 0.20 |
| 34S | 10x3 or 25x3 | 300 | 0.20 |
| 42S | Q35 or D45 | 300 | 0.20 |
| 42S | 10x3 or 25x3 | 300 | 0.20 |
Diameters
| Outside diameter in mm | Number of support profiles |
| 30 | 8 |
| 45 | 10 |
| 57 | 12 |
| 70 | 18 |
| 85 | 18 |
| 97 | 20 |
| 110 | 24 |
| 137 | 30 |
| 164 | 36 |
| 215 | 48 |
| 268 | 48 |
| 305 | 40 |
| 380 | 48 |
| 460 | 60 |
| 510 | 64 |
| 625 | 80 |
| 914 | 180 |
from inside to outside
from outside to inside
Applications of Wedge wire screen:
Wedge wire screen is the widely using screen for filtration and separation in liquid/gas, mining, food, water wasting, and so on.
HIGHTOP can provide you with a Wedge Wire Screen which designed by your own specifications manufacturer from either grade 304 stainless steel or grade 316 stainless steel. Length, width, shape and spacing of profile wire are made to meet your special application requirements.
