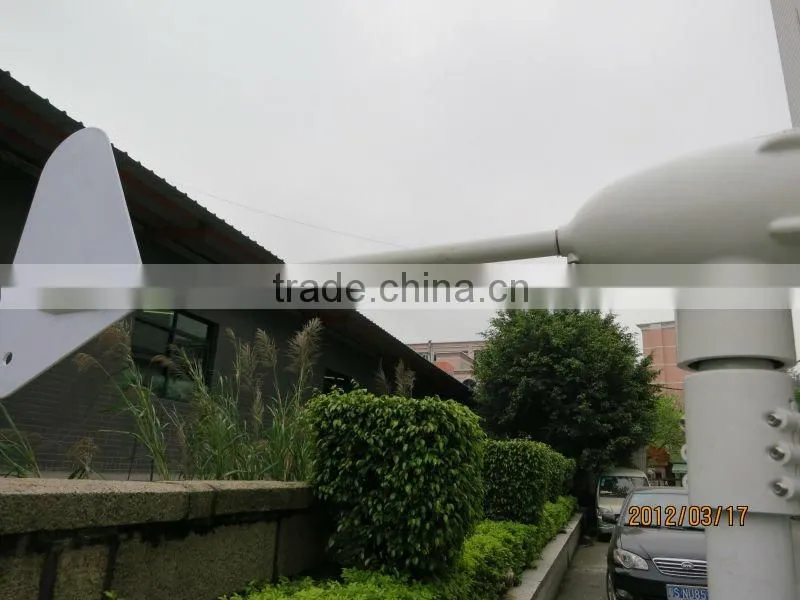

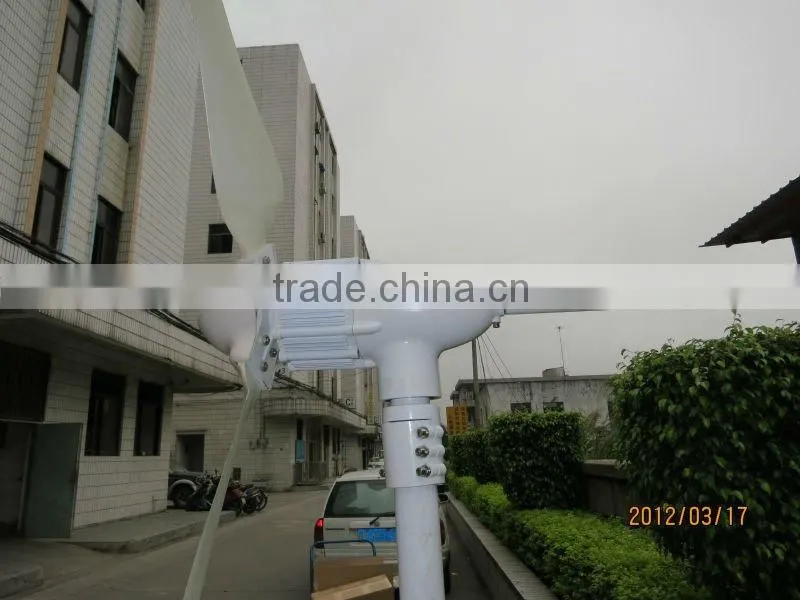

windmill High efficiency power 12v/24v DC+Wind charger regulator controller

Specifications

low start-up wind speed
High efficiency 600W
2 years guarantee time
CE Rohs ISO Certificate

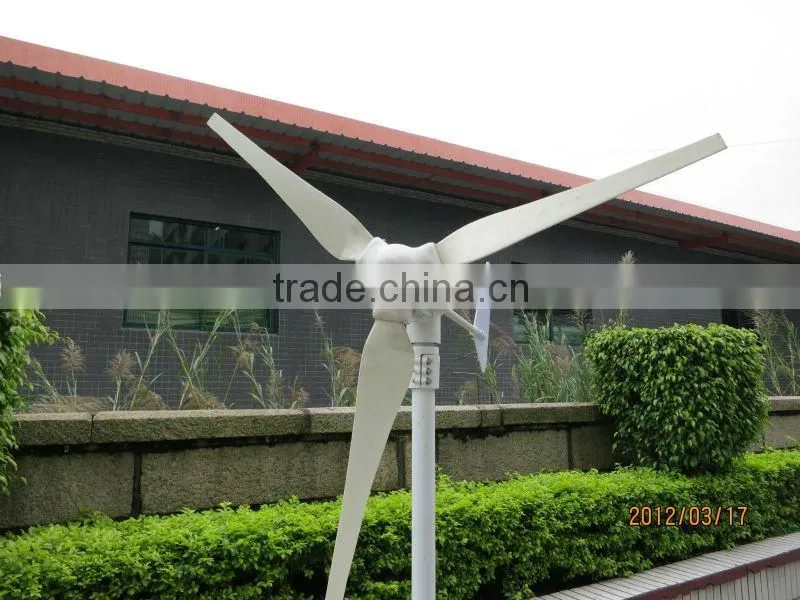

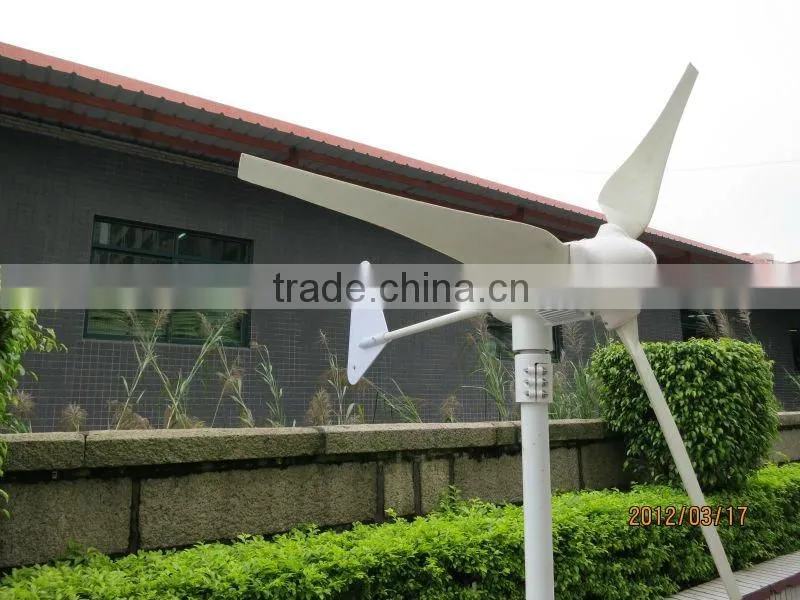

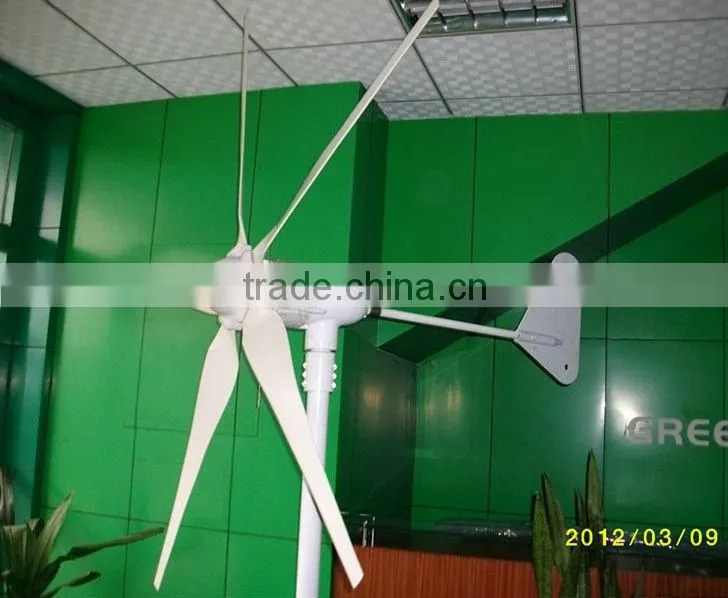

                              Large power Low start wind speed wind generator



                                 High efficiency of  anti-wind ability
                                High cost-effective wind generator system







Product Characteristics:

1. Large power, low volume, low weight, high efficiency
2. Carbon fiber blades, high efficiency of  anti-wind ability
3. Blades with the ability of automatically stall protection under strong wind



Product Specification:

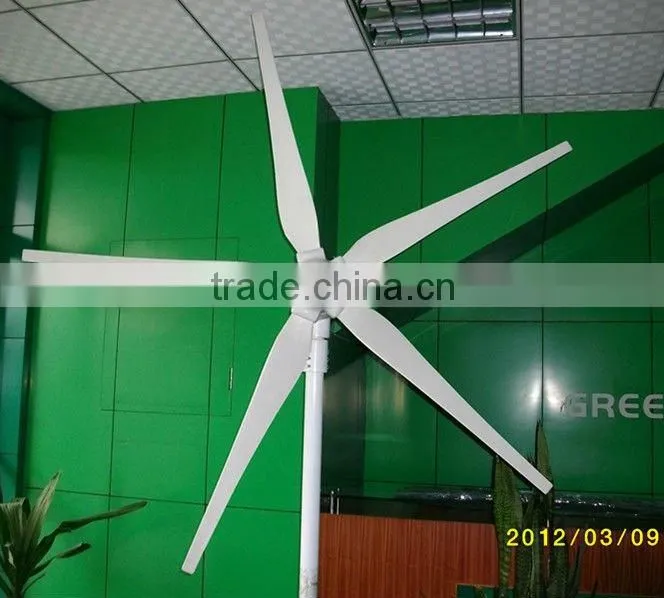

Model	Z-400W			Z-600W
Name	City Swallow			City Swallow
Rated power	400W			600W
Rated DC voltage	DC 12V/24V			DC 12v/24v
Rated current	33A/17A			50A/25A
Rated speed	740r/m			640r/m
Max power	460W			680W
Number of blade	3 pcs	5 pcs		5 pcs
Starting wind speed	3m/s	2.5m/s		2.5m/s
Cut-in wind speed	3.5m/s	3m/s		3m/s
Cut-out wind speed	15m/s			15m/s
Security wind speed	45m/s			45m/s
Rated wind speed	12m/s			12m/s
Engine	Three-phase permanent magnel generator			Three-phase permanent magnel generator
Rotor diameter	1450mm			1850mm
Blade material	Carbon fiber reinforced plastics			Carbon fiber reinforced plastics
Output line anti-winding device	Over all three-phase commutator			Over all three-phase commutator
Over-speed wind protection	Tip stall protection + turned protection + Electromagnetic brake			Tip stall protection + turned protection + Electromagnetic brake
Life span	15 years			15 years
Equipment surface protection	Aluminum oxide + plastic coating			Aluminum oxide + plastic coating
Working temperature	-40°C-70°C			-45°C-70°C
N.W.	15kg		16kg	19kg
packing dimension	980*480*260mm			980*480*260mm
G.W.	20kg		18kg	20kg
Tower height	5M(60mm zinced iron tube)			5M(60mmzinced iron tube)
Packing material	Carton box and foam material			Carton box and foam material
Packing dimension	1580*320*150mm			1580*320*150mm
Controller	400w			600w
Inverter	500w			600w





Relevant products

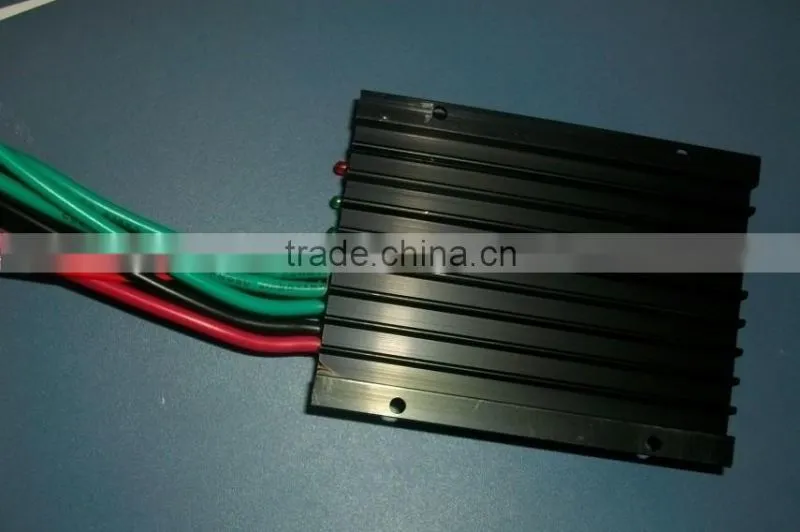

Wind controller

It can change the wind turbine's current from three-phase AC to Two-phase DC.

Function:

1.Over load protection

2.Over-speed Bracking.

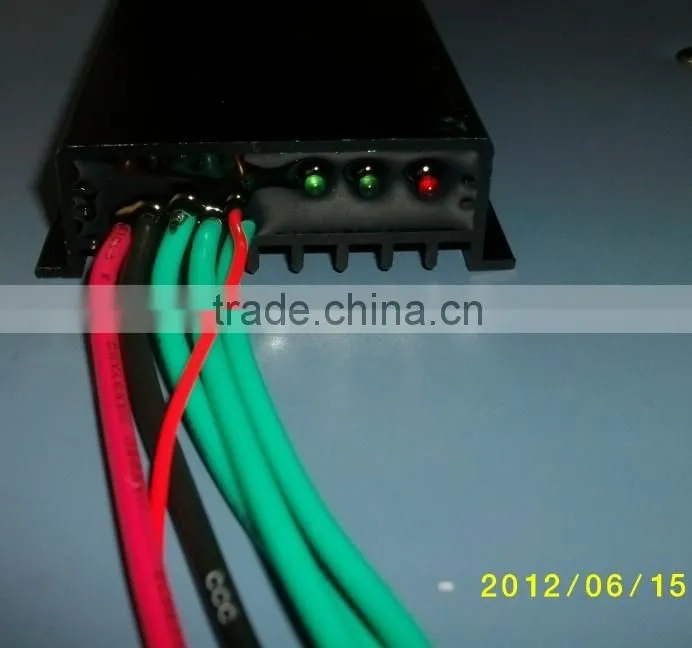

Connection mode

1,Red and black lines connect with battery Positive and negative
2,Three green lines connect with wind generator freely,no color request.

Indicating state
1,When controller Green indicator of battery light is bright,it means the battery is connected successfully
2,When controller Green indicator wind of generator is bright,it means wind generator is connected successfully,the speed of the flashing means the speed of the Wind generator rotation
3,When controller Red indicator is bright,it means the battery is fully charged.the wind generator will breake automatically.

Notice
1,Please make sure the wind generator rated voltage is the same as the battery rated voltage. 2, According to the following sequence connection.Frist,connect with battery(please notice Positive and negative ).then connect with wind generator.

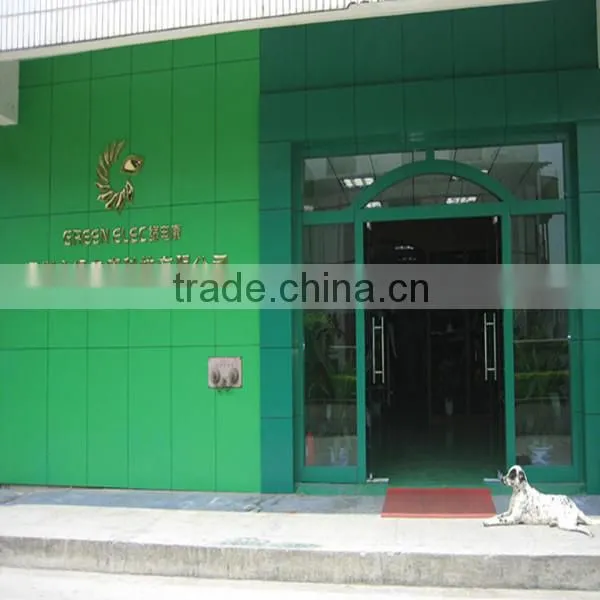

Factory

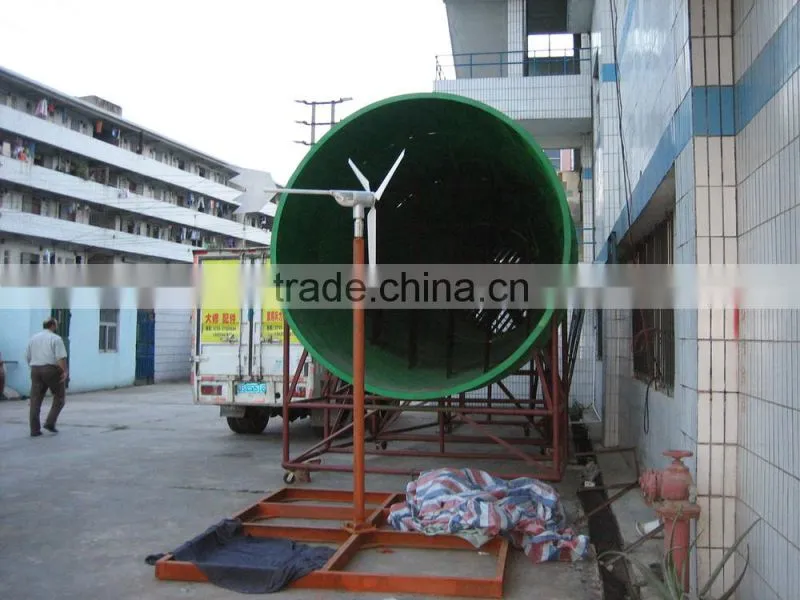

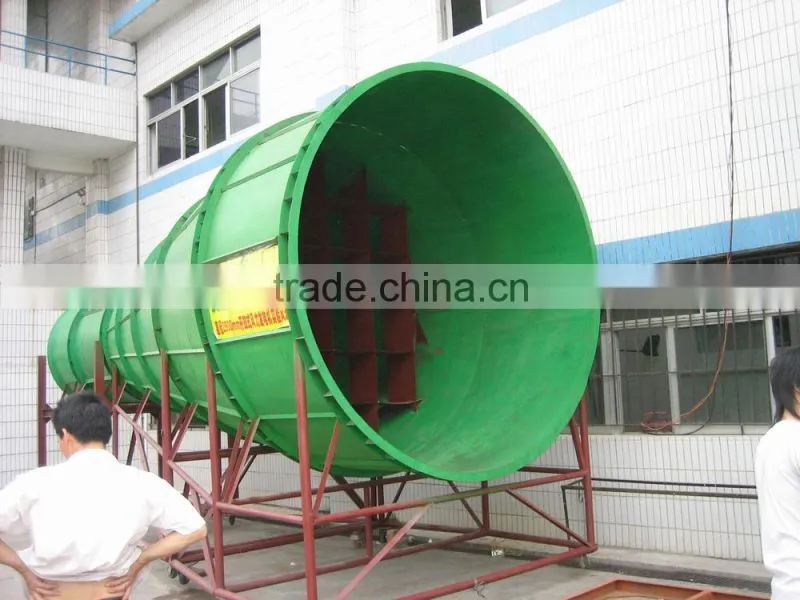

Wind tunnel

Simulate common wind to see how wind generator how to work

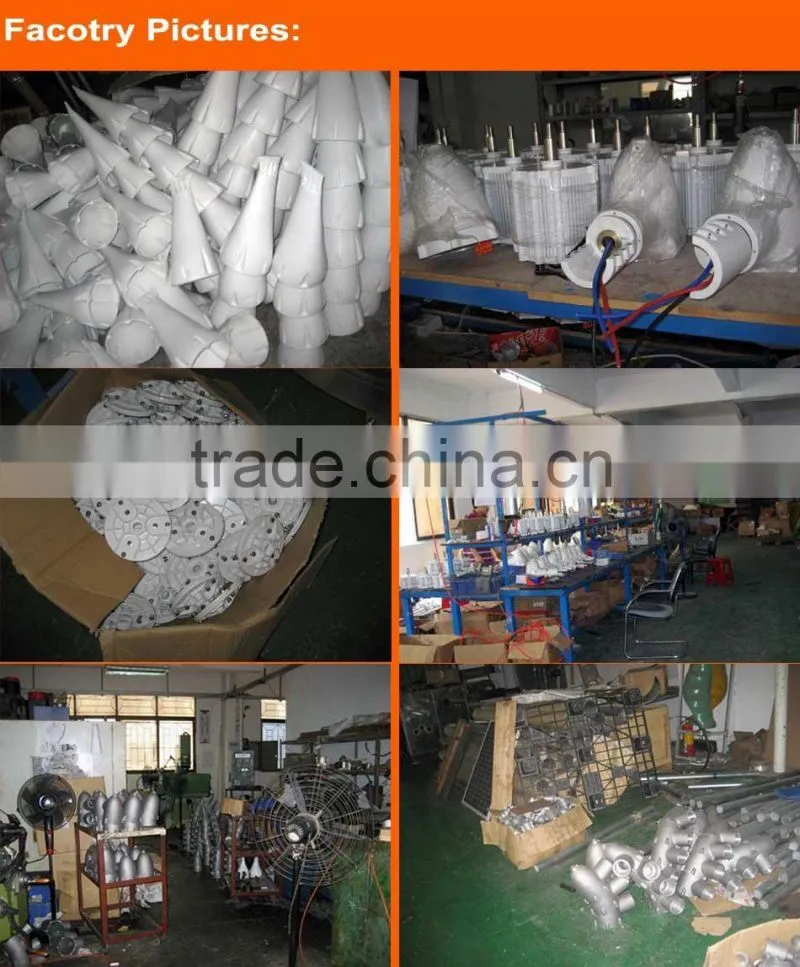

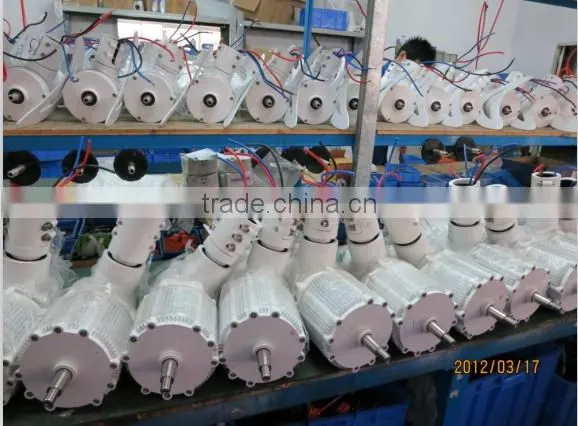

Production workshop

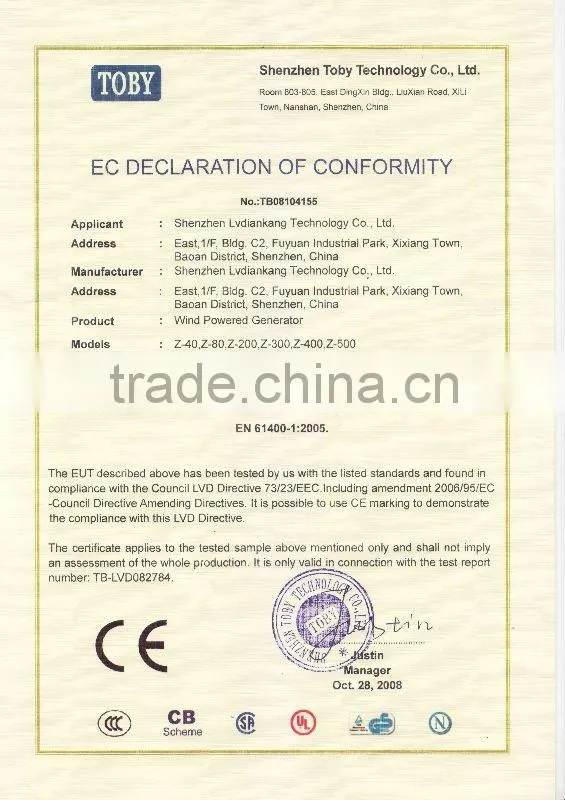

Product certification
