Specifications
1.Carbon fiber blades2. wind power generator/12V/24v/5.85kg
3.Unique and purpose designed generator
2.The headpiece can be arbitrary rotated with anti-wind ablility
3.Automatically turned protection when faced with strong winds

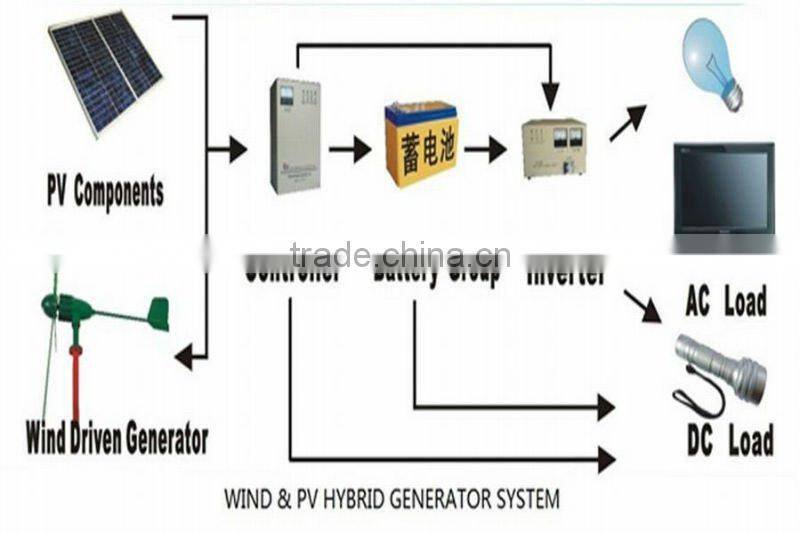

4.High efficiency,they can be made hybrid system with solar panel
Introduction
The P-300W Hyacinth is popular wind turbine in home yard, boats, advertising signs, telecommunications tower, etc. Thousands have been sold and are in use worldwide. People have the particular inclination for it’s clean, aerodynamic lines and its quiet and continuous operation. Without any doubt P-300W Hyacinth accumulates more energy than any other comparable wind generator available.
Model |
P-300W |
Name |
Hyacinth |
Rated power |
300W |
Rated DC voltage |
DC 12V/24V |
Rated current |
25A/12.5A |
Rated speed |
900r/m |
Max power |
350W |

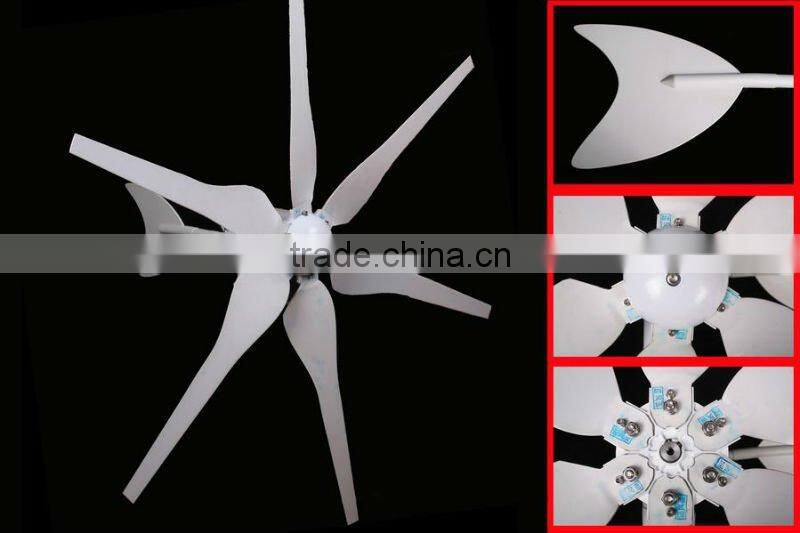

Number of blade |
6 pcs |
Starting wind speed |
2m/s |
Cut-in wind speed |
3m/s |
Cut-out wind speed |
15m/s |
Security wind speed |
40m/s |
Rated wind speed |
12.5m/s |
Engine (generator) |
Three-phase permanent magnel generator |

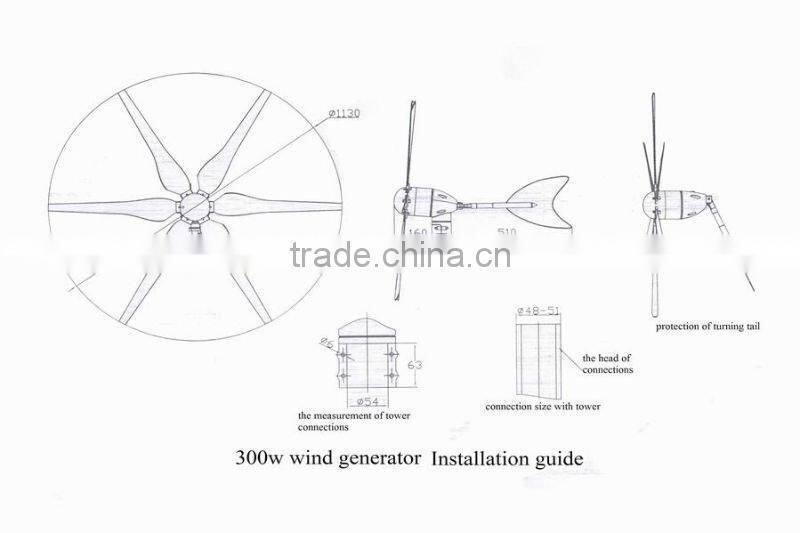

Rotor diameter |
1140mm |
Blade material |
Carbon fiber reinforced plastics |
Output line anti-winding device |
Overall three-phase commutator |
Over-speed wind protection |
Tip stall protection + turned protection + Electromagnetic brake |
Life span |
15 years |
Equipment surface protection |
Aluminum oxide + plastic coating |
Working temperature |
-45°C-70°C |
N.W. |
5.125kg |
Packing material |
Carton box and foam material |
packing dimension |
650*400*320mm |
G.W. |
6.5kg |
Advantages of 6-blade wind turbines over other wind turbines
1) 6-blade wind turbines will greatly improve annual energy production in low wind conditions. If you compare annual energy output to conventional other wind turbine, there is an increase of annual energy output.
2) 6-blade wind turbines will dramatically improve the reliability and safety of wind turbine. The blade rotation speed of a 6-blade turbine is fast than the rotational speed of other wind turbine. 6-blade wind turbines will greatly reduce chance of overspeed control malfunction. This will ensure operational reliability from a long term perspective.
3) The lower blade rotation speed of 6-blade wind turbine will lower wind turbine noise and make 6-blade wind turbines more community friendly than other wind turbines.
Hyacinth wind turbines can meet the above requirements and do much more:
Brand New 300W LOW START SPEEDWIND
GENERATOR TURBINE 6 BLADES
LIGHT AND POWERFUL

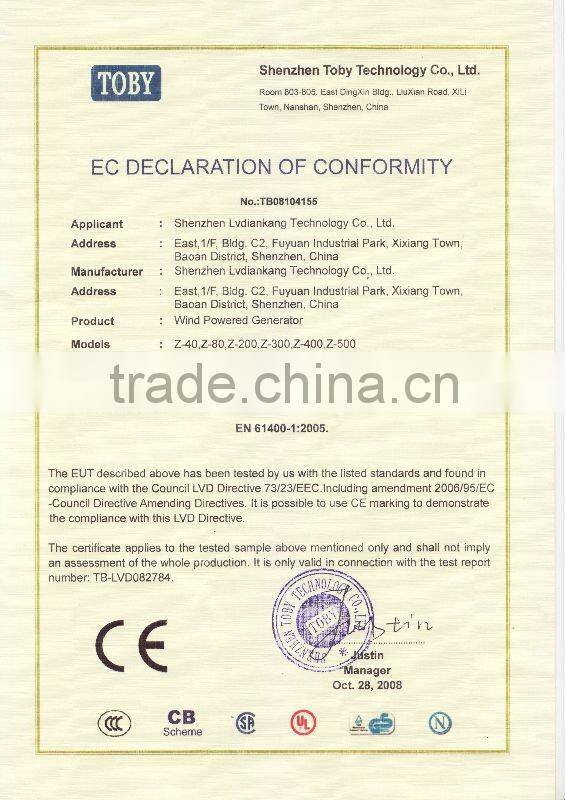

CE Certification,ISO9001 Quality Certification
ROHS Certification
Life span can reach 15 years
350 watts maxmauim output
Large power,low volume,high efficiency

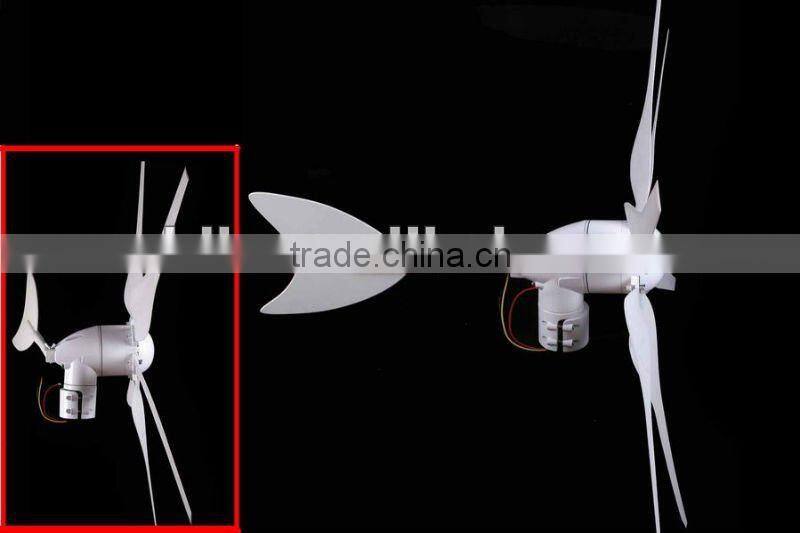

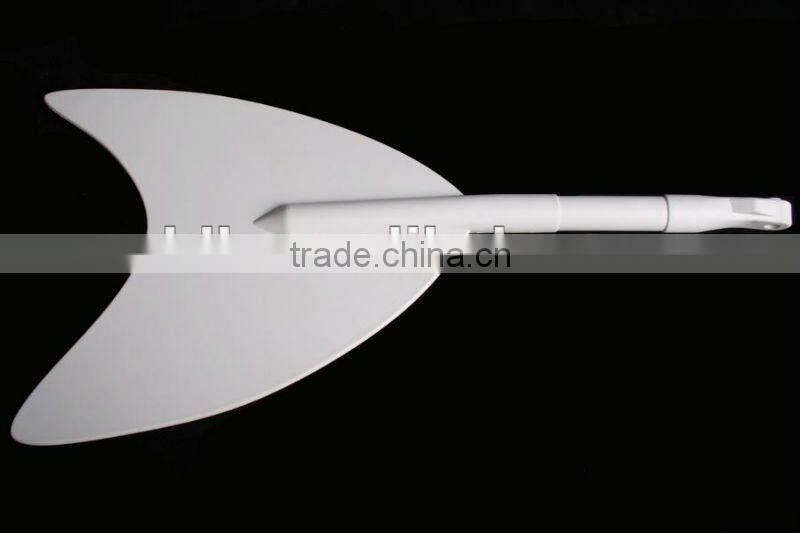

Unique turning tail design and Blades with the ability of automatically stall protection under strong wind
Weather proof industrial strength design
12 or 24 volt(We stock 12V and 24V modal for your choose.
The heat removal system can extending the useful time
Carbon fiber reinforced plastics blades, high efficiency of anti-wind ability,move mutely
and steadily
CE Certification,ISO9001 Quality Certification
