Specifications
1.CE&RoHS Certificate2.Good price with high efficiency
3.Life span 15years
4.Delivery fast

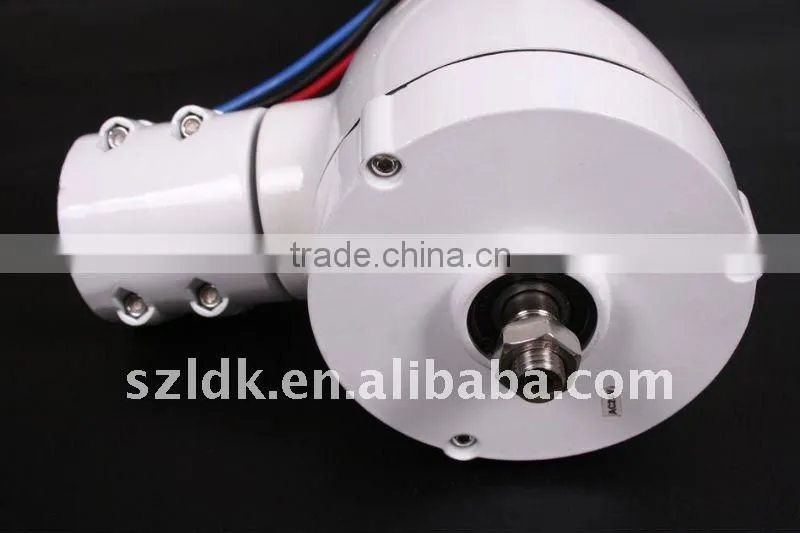

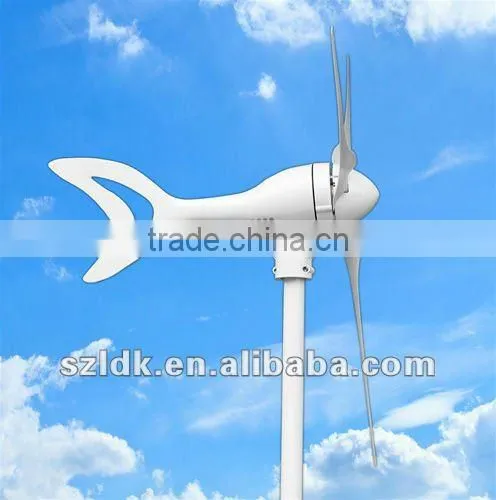

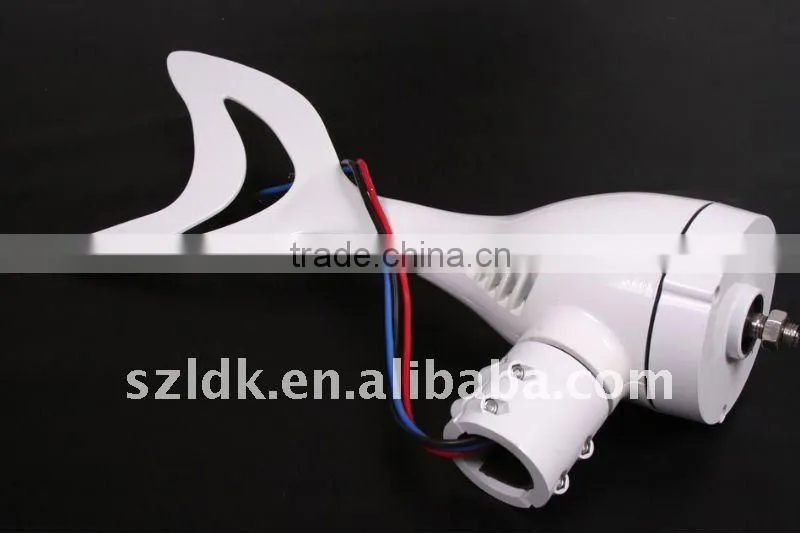

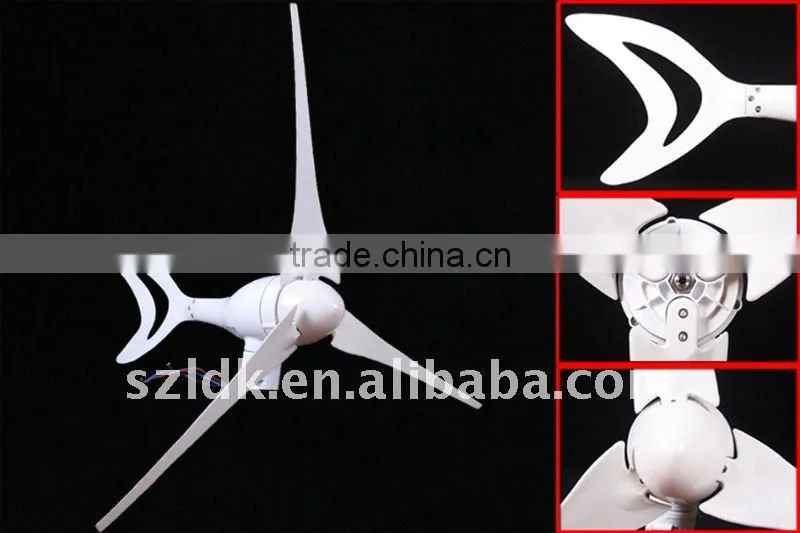

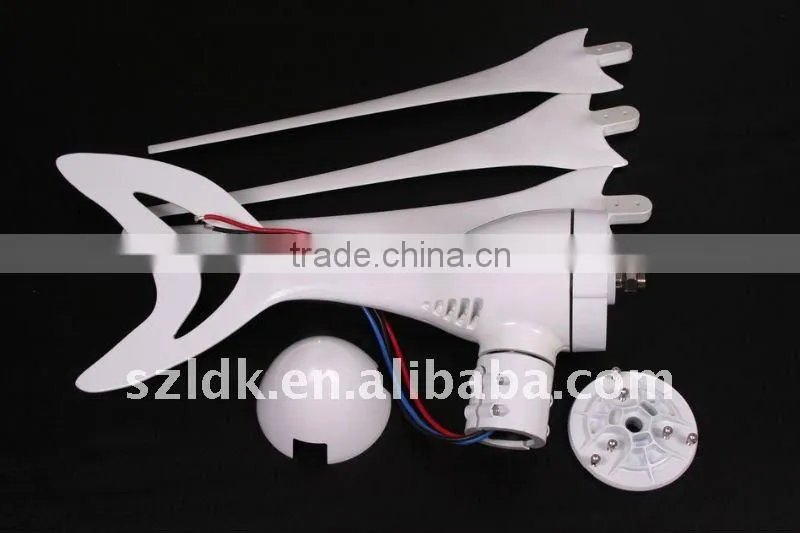

High Power 300W Wind Turbine / Wind Power Generator
Product Characteristics:
1. Large power, low volume, low weight, high efficiency
2. Carbon fiber blades, high efficiency of anti-wind ability
3. Blades with the ability of automatically stall protection under strong wind
4.2 years free warranty
Product Specification:
Model |
300A |
300B (low start up wind speed ) |
Name |
Dolphin |
Dolphin |
Rated power |
300W |
300w |
Rated DC voltage |
DC 12V/24V |
DC12V/24V |
Rated current |
25A/12.5A |
25A/12.5A |
Rated speed |
1850r/m |
1850r/m |
Max power |
380W |
380w |
Number of blade |
3 pcs |
3pcs |
Starting wind speed |
2.5m/s |
1.5m/s |
Cut-in wind speed |
3.5m/s |
2.5m/s |
Cut-out wind speed |
18m/s |
18m/s |
Security wind speed |
45m/s |
45m/s |
Rated wind speed |
12.5m/s |
12.5m/s |
Engine |
Three-phase permanent magnel generator |
|
Rotor diameter |
1250mm |
1250mm |
Blade material |
Carbon fiber |
Carbon fiber |
Output line anti-winding device |
Overall three-phase commutator |
|
Over-speed wind protection |
Tip stall protection + turned protection + Electromagnetic brake |
|
Life span |
15 years |
15 years |
Equipment surface protection |
Aluminum oxide + plastic coating |
Aluminum oxide+plastic coating |
Working temperature |
-45C-70C |
-45C-70C |
N.W. |
5.85kg |
5.85kg |
Packing material |
Carton box and foam material |
Carton box and foam material |
packing dimension |
720*390*210mm |
720*390*210mm |
G.W. |
7.5kg |
7.5KG |
Beautiful Shape 300W Wind Pwer Generator/Turbine/Windmill/system/Energy For LED Street lights
